dscf0005.jpg | Hits: 577 | Size: 88.68 KB | Posted on: 2/12/04 | Link to this image Holley 600CFM carb in process of EFI conversion

Share This Url Tag Img Thumb

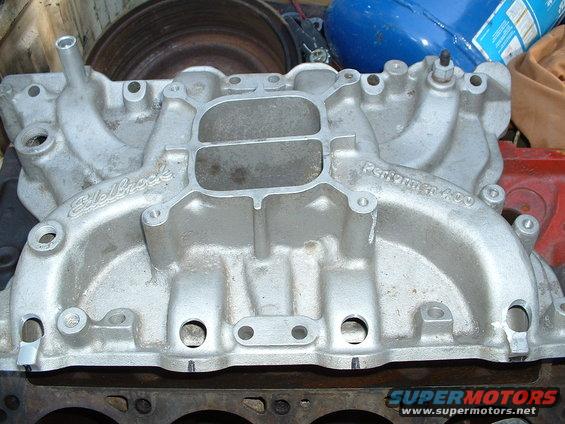

intake_1.jpg | Hits: 612 | Size: 75.67 KB | Posted on: 8/23/05 | Link to this image Shot of 400 performer intake with injector bungs drilled out for installation of bung inserts

Share This Url Tag Img Thumb

intake_2.jpg | Hits: 737 | Size: 53.87 KB | Posted on: 8/23/05 | Link to this image Injector bung fitted by hand into drilled pocket. Will be TIG'd once all have been installed to correct depth.

Share This Url Tag Img Thumb

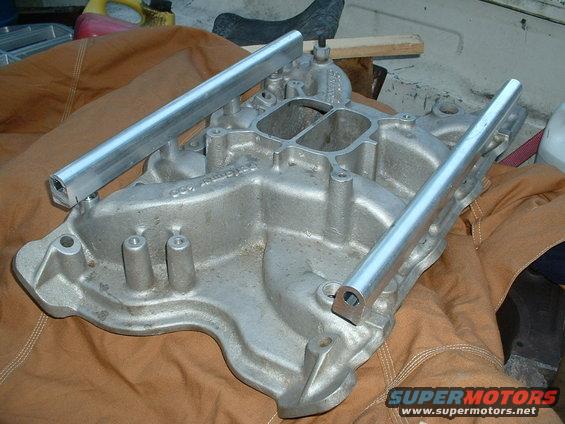

FuelRail_1.jpg | Hits: 559 | Size: 67.93 KB | Posted on: 8/24/05 | Link to this image Here's the manifold all mocked up without injectors installed, bungs are only pressfit in at the moment.

Share This Url Tag Img Thumb

dscf0054.jpg | Hits: 631 | Size: 71.15 KB | Posted on: 10/4/05 | Link to this image

Share This Url Tag Img Thumb

dscf0183.jpg | Hits: 465 | Size: 56.15 KB | Posted on: 2/17/06 | Link to this image Overhead view of Performer 400 EFI manifold

Share This Url Tag Img Thumb

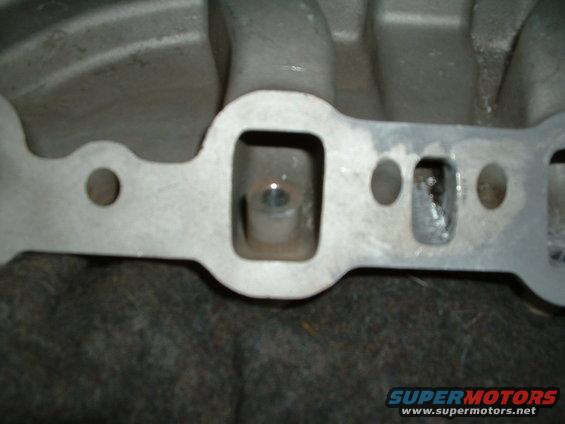

dscf0184.jpg | Hits: 425 | Size: 40.79 KB | Posted on: 2/17/06 | Link to this image Bottom of injector bung, Excess must be removed and runner shaped to original contour.

Share This Url Tag Img Thumb

dscf0186.jpg | Hits: 443 | Size: 41.24 KB | Posted on: 2/17/06 | Link to this image Here's the runner with the injector bung shaped properly, just not polished yet.

Share This Url Tag Img Thumb

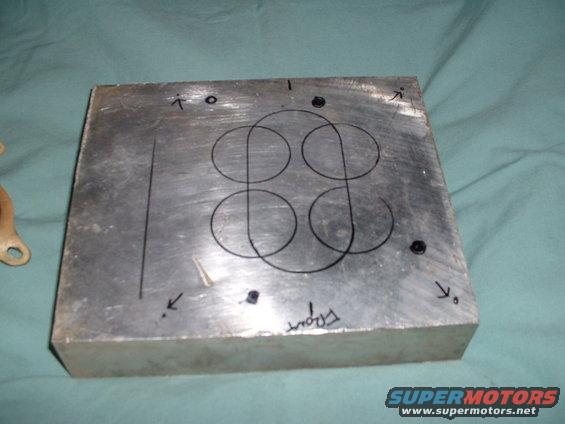

dscf0195.jpg | Hits: 427 | Size: 46.01 KB | Posted on: 3/21/06 | Link to this image Throttlebody adapter plate being marked up for machine work.

Share This Url Tag Img Thumb

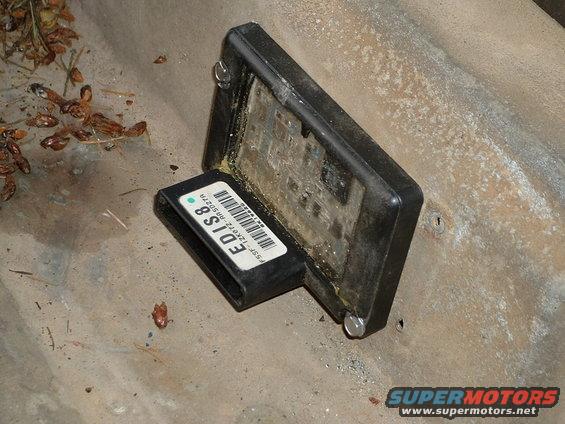

EDIS_Inst1.jpg | Hits: 480 | Size: 73.28 KB | Posted on: 3/21/06 | Link to this image EDIS Module mounted in location previously occupied by the DuraSpark II module

Share This Url Tag Img Thumb

dscf0207.jpg | Hits: 611 | Size: 84.69 KB | Posted on: 3/21/06 | Link to this image Throttle body attached to manifold, finally.

Share This Url Tag Img Thumb

dscf0206.jpg | Hits: 620 | Size: 58.64 KB | Posted on: 3/22/06 | Link to this image Adapter plate tapping for TB attachment

Share This Url Tag Img Thumb

Screenshot1.jpg | Hits: 537 | Size: 41.34 KB | Posted on: 7/12/06 | Link to this image Initial screenshot as laptop is connected to ECU

Share This Url Tag Img Thumb

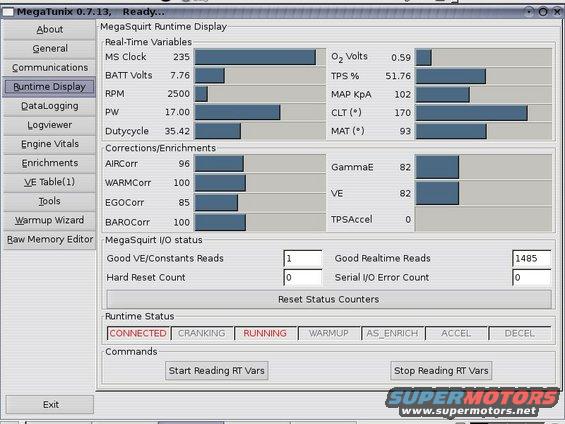

Screenshot2.jpg | Hits: 577 | Size: 53.32 KB | Posted on: 7/12/06 | Link to this image Engine running on ECU (Simulated)

Share This Url Tag Img Thumb

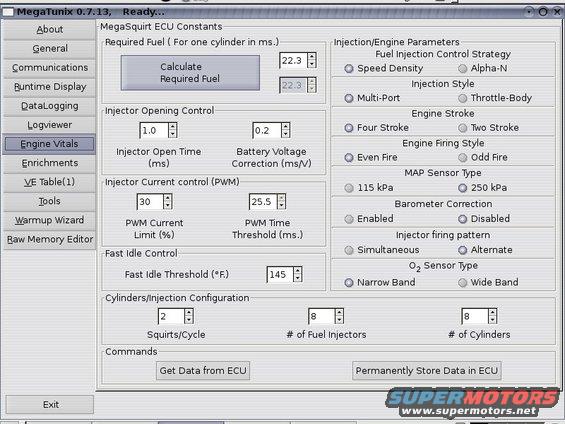

Screenshot3.jpg | Hits: 547 | Size: 60.69 KB | Posted on: 7/12/06 | Link to this image Engine constants and ECU initialization

Share This Url Tag Img Thumb

Screenshot4.jpg | Hits: 603 | Size: 59.19 KB | Posted on: 7/12/06 | Link to this image Calculation of required fuel for one injector/one cycle
