193 hits | 108.46 KB | Posted: 8/11/13

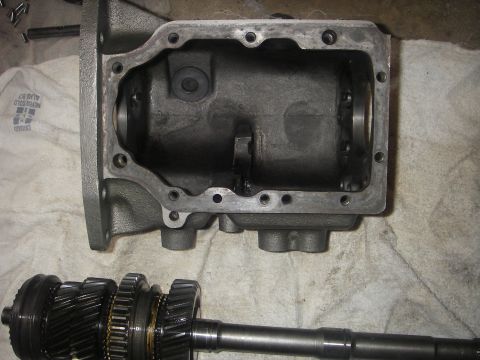

this is when you know you've gone too far

221 hits | 46.28 KB | Posted: 8/18/13

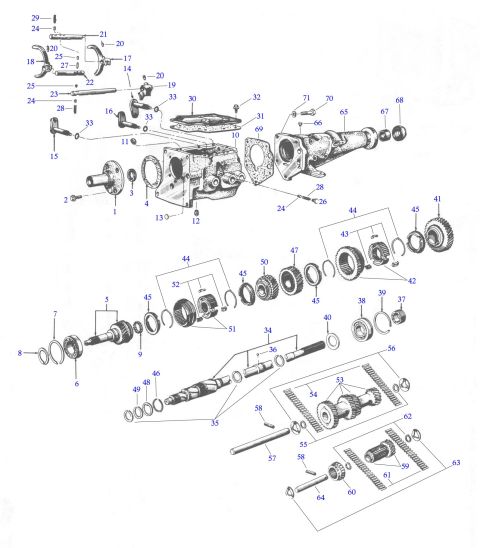

Yea Right!

202 hits | 112.26 KB | Posted: 8/11/13

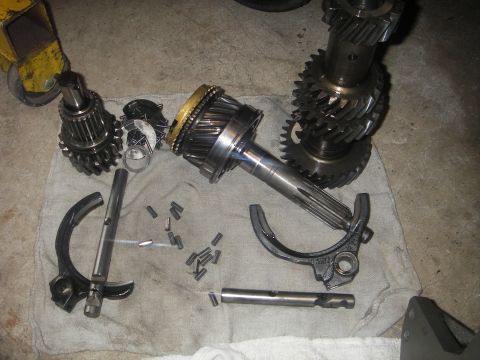

input, cluster, rails, forks & detents

244 hits | 114.3 KB | Posted: 8/18/13

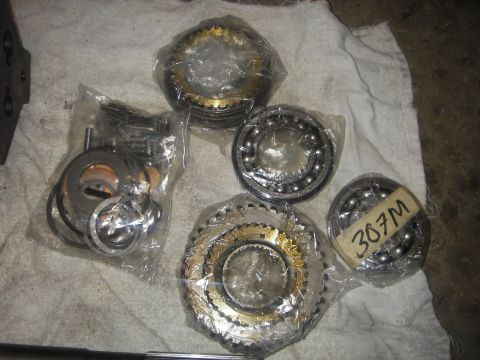

new bearings, synchros & small parts

207 hits | 114.51 KB | Posted: 8/11/13

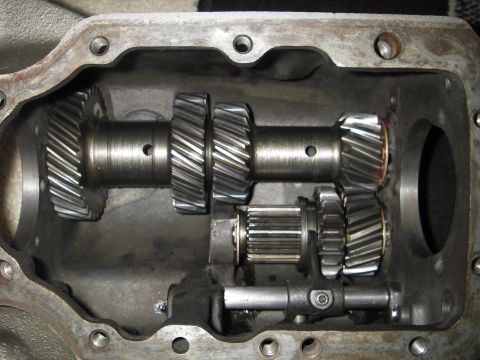

reverse installed & countershaft sitting in the bottom

182 hits | 127.09 KB | Posted: 8/11/13

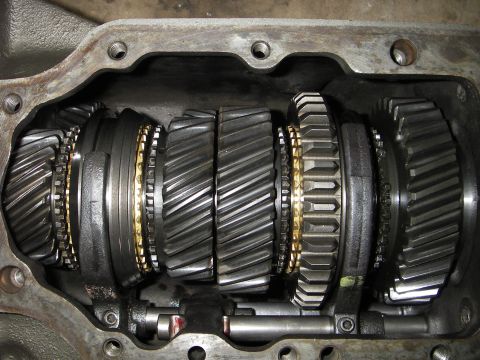

input, main shaft, rails & forks all back in

187 hits | 105.55 KB | Posted: 8/11/13

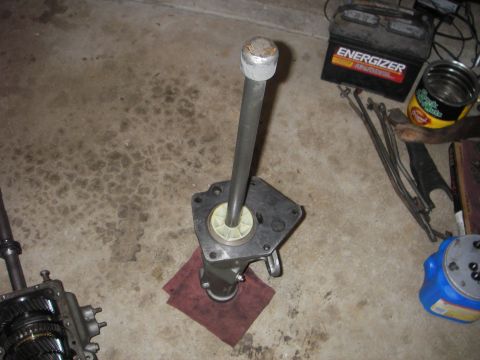

my cam bearing driver tool worked out pretty
good for installing the tail bushing

182 hits | 92.2 KB | Posted: 8/18/13

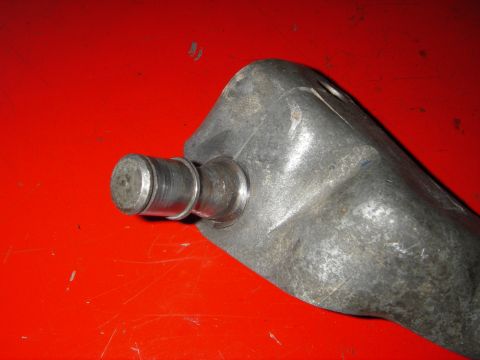

bell side Z-bar shaft is loose in the bracket
some of the shoulder Is missing from the
tube eating ...

194 hits | 95.46 KB | Posted: 8/18/13

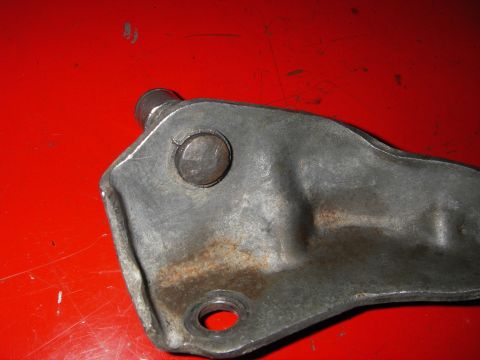

the back of the bell side Z-bar bracket
not much left holding the shaft in at all

195 hits | 108.51 KB | Posted: 8/18/13

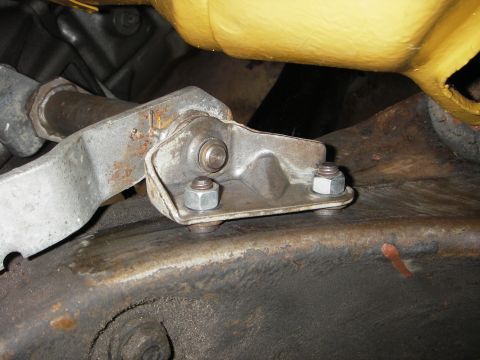

the frame side pivot ball is also loose in the bracket,
nothing a few minutes with the welder can't ...

206 hits | 96.35 KB | Posted: 8/18/13

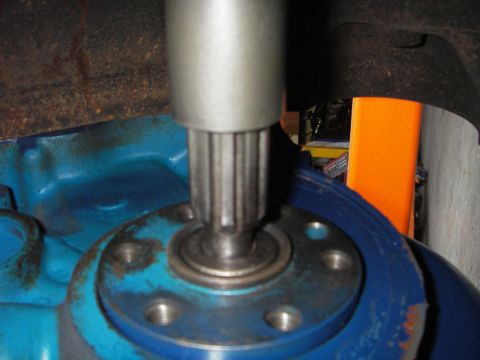

peeking through the fork hole to see how deep the pilot rides in the bushing,
with the block plate i...

225 hits | 96.77 KB | Posted: 8/18/13

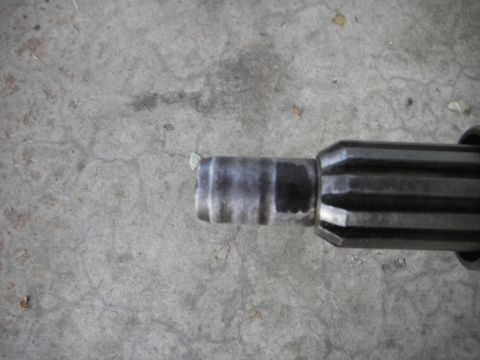

I hit it with Black Sharpie to confirm where it was,
right at the old wear pattern

221 hits | 108.8 KB | Posted: 8/18/13

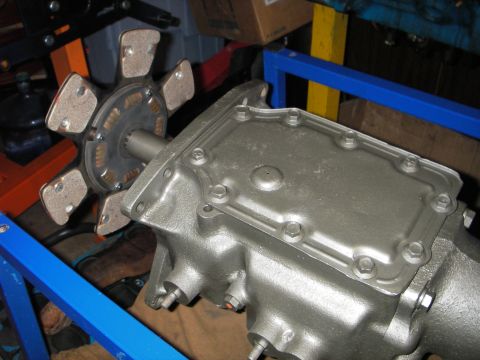

Ram 6126 Sintered Bronze clutch

218 hits | 106.88 KB | Posted: 8/18/13

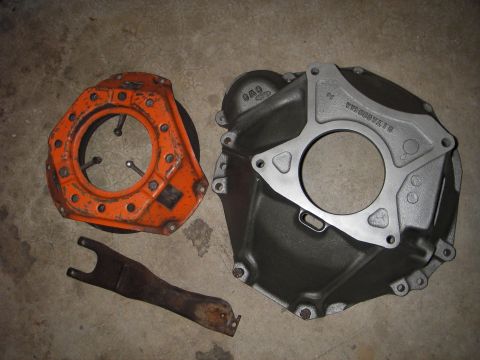

bell, pressure plate & fork

218 hits | 133.52 KB | Posted: 8/18/13

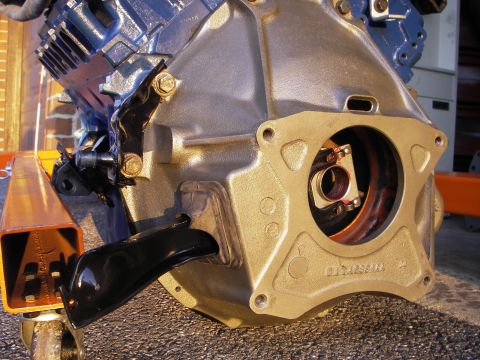

bell loaded & ready for trans

222 hits | 94.03 KB | Posted: 8/18/13

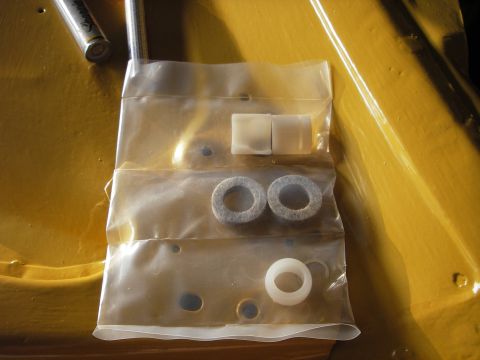

Z-bar bushing kit
