gaskets101.jpg 974 hits | 73.04 KB | Posted: 6/1/09 making gaskets for the bypass, intake elbow and blower to manifold. material is Fel Pro 'Pro-Ramic' ...
RotorsCase.jpg 832 hits | 47.95 KB | Posted: 6/2/09 ready re-assemble with Lucas Sticky Red synthetic grease in the needle bearings, and a little dab mo...
filling.jpg 625 hits | 60.66 KB | Posted: 6/2/09 back together and filling with synthetic supercharger oil, i used about 6oz
IntakePort.jpg 609 hits | 41.61 KB | Posted: 6/2/09 the ends of the rotor lobes through the intake port
IntakeElbow.jpg 624 hits | 57.35 KB | Posted: 6/2/09 intake elbow installed with a little Permatex Red 'Hylomar' anerobic sealant on my homemade gasket
CuppedFlange.jpg 628 hits | 48.09 KB | Posted: 6/2/09 blower mounting flange is not flat, a little rub with a file shows the high and low areas
LowSpot.jpg 618 hits | 51.43 KB | Posted: 6/2/09 some more rubbing with the file shows the lowest spot, could've been the problem?

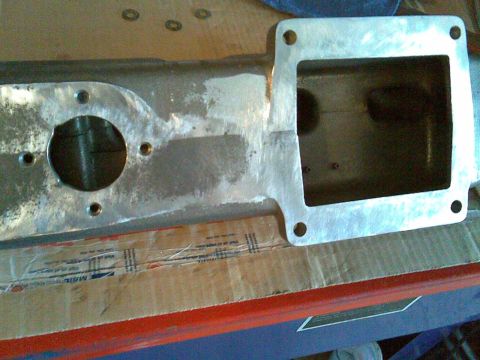

CallitFlat.jpg 711 hits | 56.94 KB | Posted: 6/2/09 hopefully the blower flange and the bypass valve mounting surface are flat enough to seal now

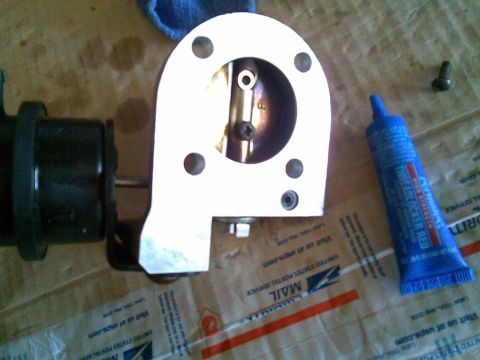

butterflyLoose.jpg 651 hits | 43.67 KB | Posted: 6/3/09 luckily i noticed that the screws holding the butterfly were loose before mounting the bypass

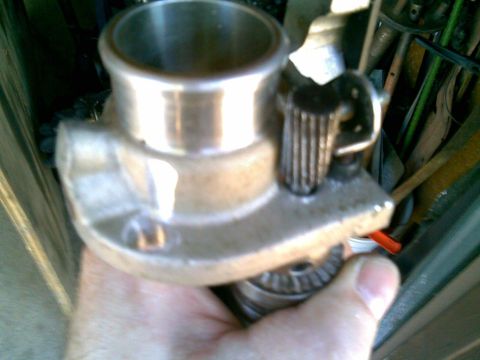

CuttingReliefs.jpg 681 hits | 39.42 KB | Posted: 6/3/09 on cue, i stripped a bypass mount screw, so i had to drill / tap the holes oversize. the holes in th...

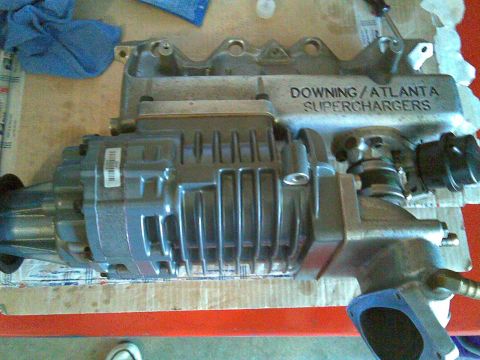

assembled.jpg 688 hits | 63.4 KB | Posted: 6/3/09 back together and ready to mount back on the engine

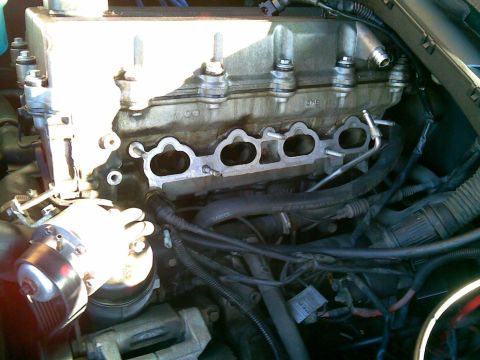

intake reseal
