149 hits | 37.56 KB | Posted: 2/8/14

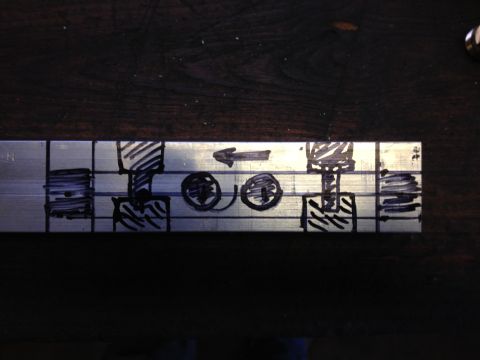

I needed a place to put two radiator fan switches and the return water from the water-cooled turbos....

165 hits | 41.69 KB | Posted: 2/8/14

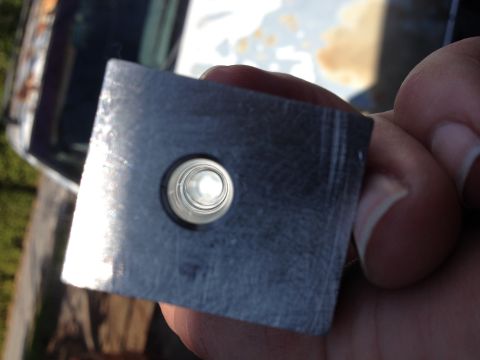

Drilling a straight hole through 6 inches of aluminum when your drill press only has a 2 inch stroke...

167 hits | 24.69 KB | Posted: 2/8/14
3/8 inch pilot drilled out to 3/4 inch. Still straight enough. It took a lot of stepping up drill bi...

168 hits | 60.95 KB | Posted: 2/8/14

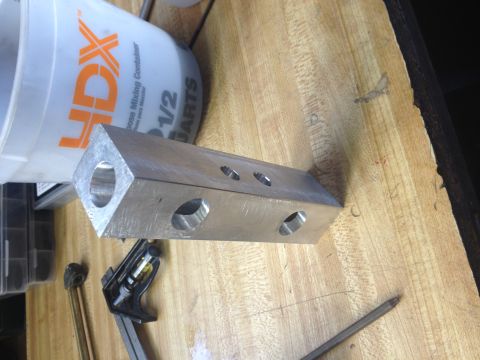

All the holes drilled. Just about to start tapping.

158 hits | 75.54 KB | Posted: 2/8/14

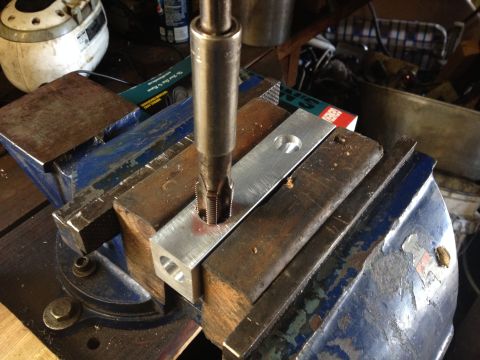

Starting the tap. Long extension and socket make it easy to keep the tap straight when starting.

201 hits | 36.33 KB | Posted: 2/8/14

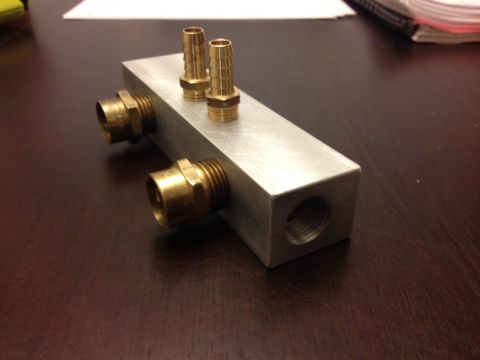

Fan switches installed. Turbo returns installed. Just need to order the 1/2 NPT to 3/4 hose barb fit...

155 hits | 34.74 KB | Posted: 2/8/14

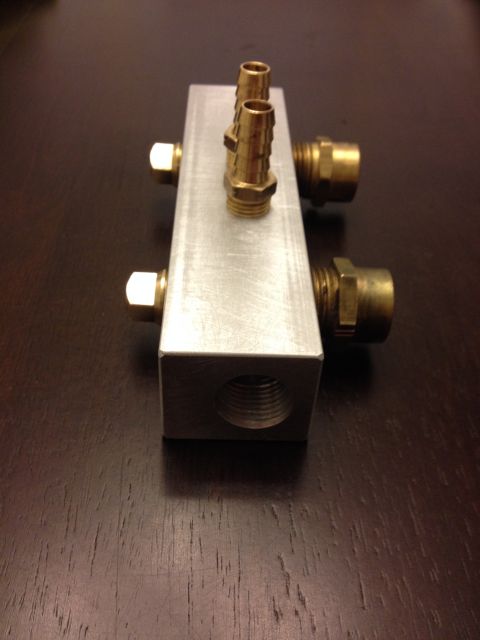

I put 3/8 NPT tapped holes opposite the 1/2 NPT holes for the fan switches in case I ever need to us...

146 hits | 57.89 KB | Posted: 4/13/14

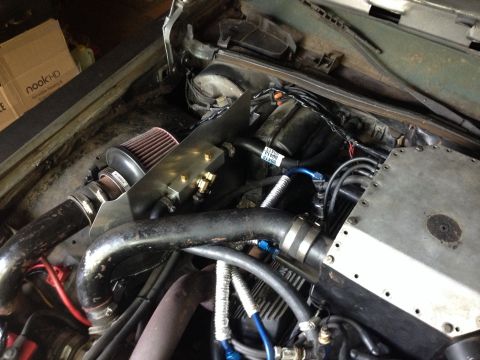

Manifold installed. Had to make a heat shield for the air intake so I mounted the manifold to it. Th...

124 hits | 43.99 KB | Posted: 4/13/14

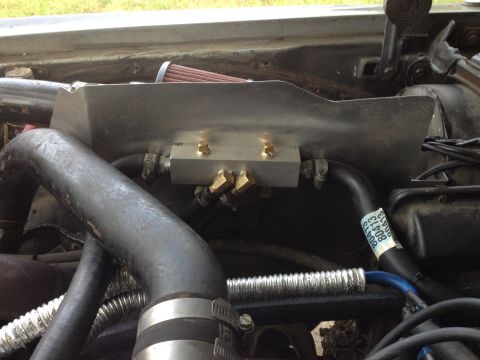

Another shot of the manifold. You can see the hose routing better here. The fan sensors are on the b...
