bronco step 001.JPG
380 hits | 45.83 KB | Posted: 9/1/10

2-31" and 2-13" 1 1/2 angle
bronco step 002.JPG
431 hits | 48.07 KB | Posted: 9/1/10

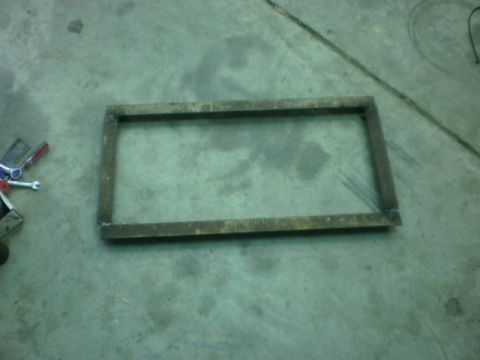

tacked in place, the outer angles are at an angle to match the tires tread pitch
bronco step 003.JPG
428 hits | 54.59 KB | Posted: 9/1/10

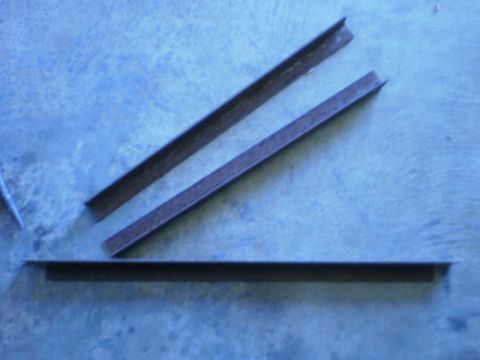

angles for the step 1-31" and 2-24"
bronco step 004.JPG
437 hits | 52.36 KB | Posted: 9/1/10

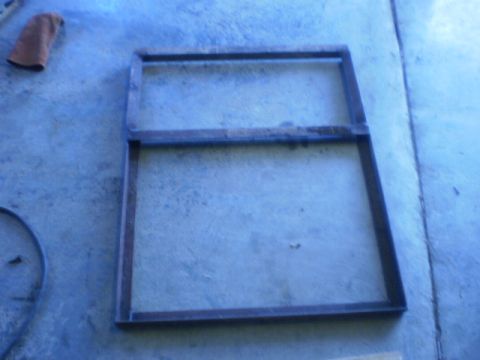

all welded together
bronco step 005.JPG
506 hits | 55.09 KB | Posted: 9/1/10

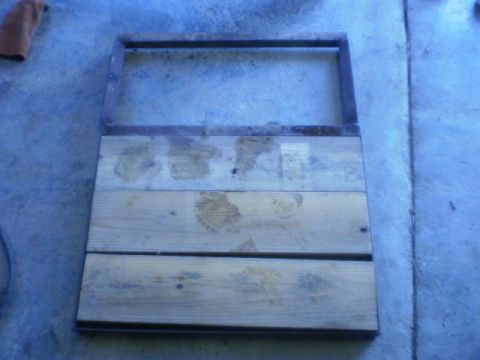

3 2x6 boards fit ok
bronco step 006.JPG
467 hits | 61.24 KB | Posted: 9/1/10

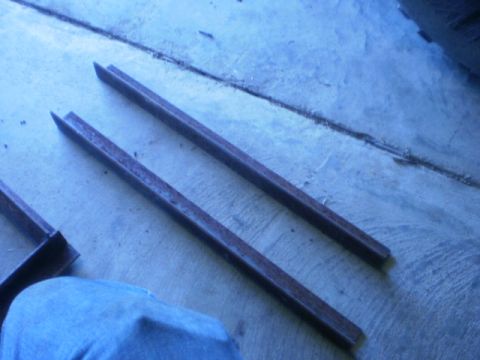

2-24" kicker legs
bronco step 007.JPG
500 hits | 53.24 KB | Posted: 9/1/10

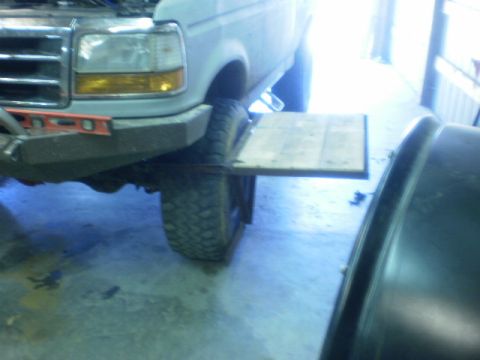

side view
bronco step 008.JPG
414 hits | 47.57 KB | Posted: 9/1/10

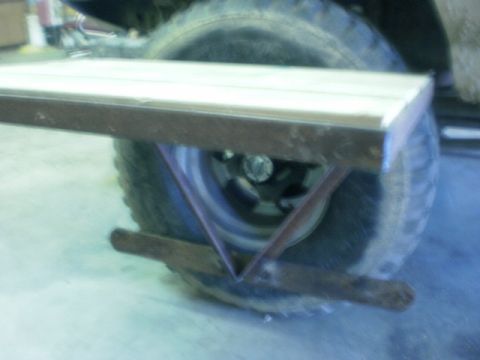

front view
I put a leaf spring on the bottom of the kickers to spread the load across the tire.
