268 hits | 64.31 KB | Posted: 10/21/10
Stock ashtray removed from dash.

250 hits | 37.94 KB | Posted: 10/21/10
Previous owner cut the wires to the tray. Explains why the lighter didn't work.

282 hits | 56.99 KB | Posted: 10/21/10
Gutted tray.

306 hits | 30.05 KB | Posted: 10/21/10
Two types of plastic, audio jack, beauty ring from cigarette lighter, and rough cut piece for testin...

302 hits | 28.07 KB | Posted: 10/21/10
Pieced together. Looks good.

287 hits | 30.67 KB | Posted: 10/21/10
Back of the modded ring and jack.

281 hits | 62.61 KB | Posted: 10/21/10

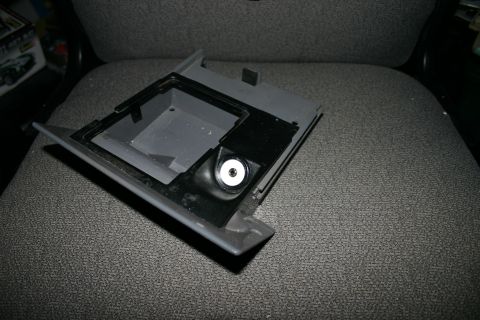

Test fit. Looks great! I wonder if it comes in black?

301 hits | 78.14 KB | Posted: 10/21/10

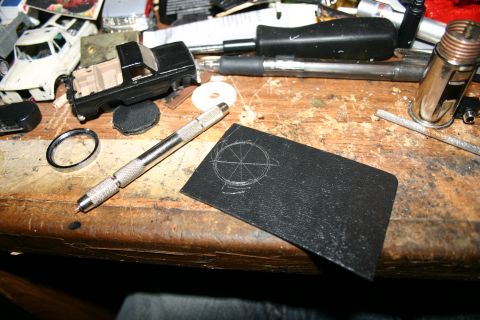

Cutting the black piece out.

290 hits | 79.85 KB | Posted: 10/21/10

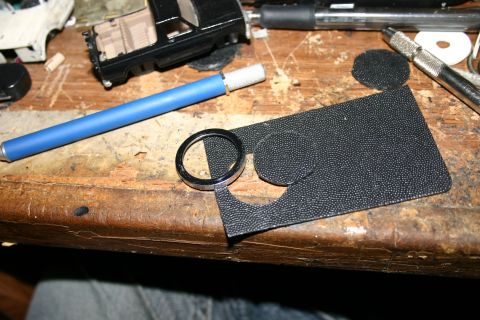

Ready for assembly. Minus audio jack.

281 hits | 65.48 KB | Posted: 10/21/10

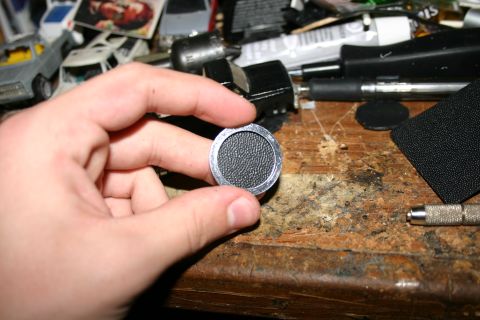

Installed in ring.

323 hits | 51.15 KB | Posted: 10/21/10

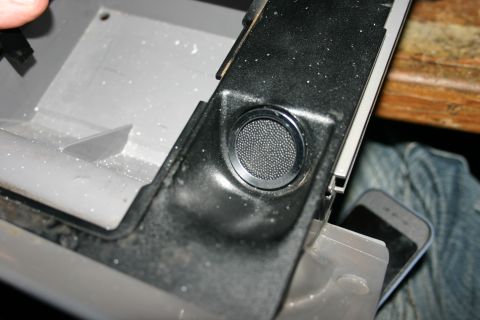

Test fit. Sexy.

329 hits | 57.76 KB | Posted: 10/21/10

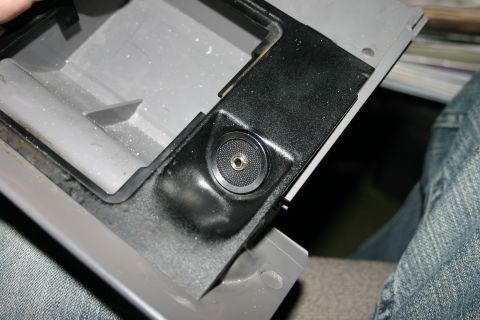

With audio jack installed. Perfect!

293 hits | 47.9 KB | Posted: 10/21/10

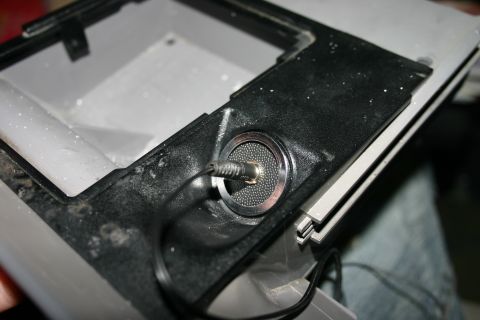

It works! Well, not really. Need to solder it up to the leads first.

291 hits | 48.65 KB | Posted: 10/22/10

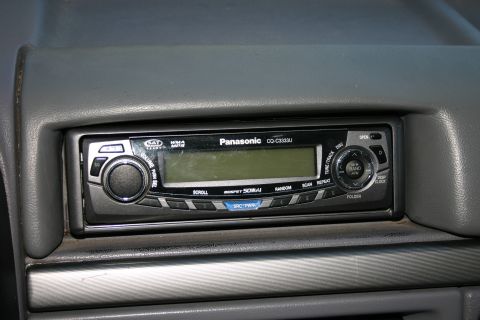

Mah radio.

316 hits | 42.25 KB | Posted: 10/22/10

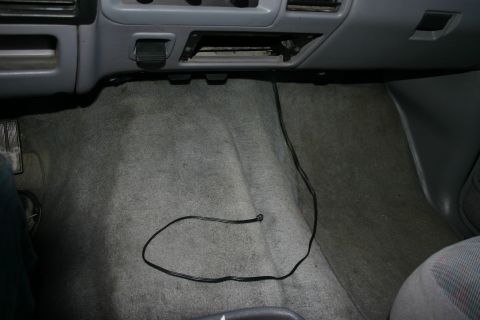

Old hookup.

297 hits | 52.64 KB | Posted: 11/11/10

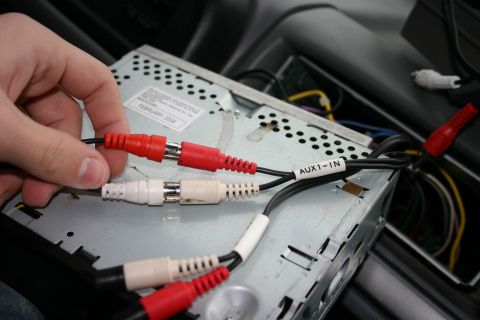

Auxiliary cables.

271 hits | 49.63 KB | Posted: 11/11/10

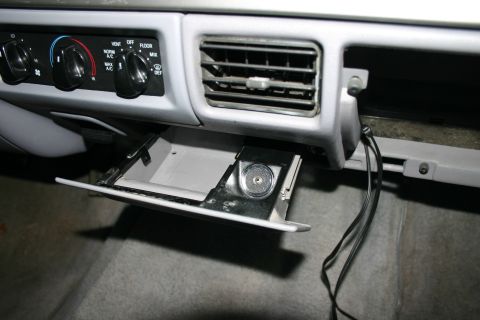

Tray reinstalled.

301 hits | 42.87 KB | Posted: 11/11/10

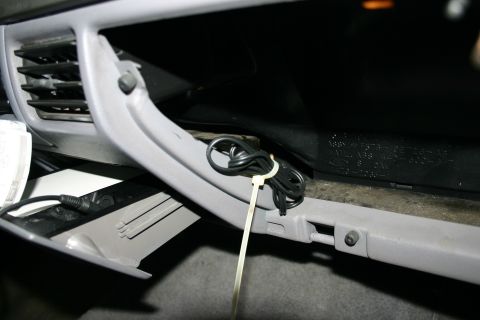

Wires all bundled up.

333 hits | 47.41 KB | Posted: 11/11/10

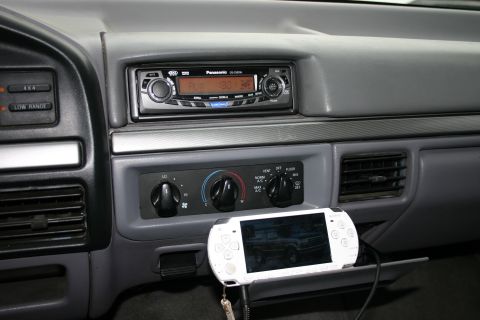

Finished with PlayStation Portable plugged in.
