Picture 030.jpg
469 hits | 106.48 KB | Posted: 1/6/10
The only thing not shown is the leverage bar I used for the belt tension spring.
This is all I needed and you can do this in your driveway if you don't need the air tools.
The tire inflation thing was used because I took all the air out of both fro...

Picture 031.jpg
581 hits | 98.83 KB | Posted: 1/6/10
Everything goes back together the same way it came off. You can't see it but I took the time to paint the fan blades black.
Not a big deal.

Picture 029.jpg
525 hits | 89.63 KB | Posted: 1/6/10
Once you put the gasket on and put the sealant on the other side, wipe off and excess.
You DID clean the engine block already, right?

Picture 027.jpg
562 hits | 99.59 KB | Posted: 1/6/10
Before putting the gasket sealer on, test fit the gasket first to make sure you have the correct side exposed.

Picture 026.jpg
576 hits | 134.97 KB | Posted: 1/6/10
The old pump verses the new pump..
Yeah, it was time for a new one.
If you look at the old pump in about the 2:00 position, that is where it was leaking from.

Picture 024.jpg
692 hits | 105.12 KB | Posted: 1/6/10
This sediment did concern me a bit. It came off easy enough but, hopefully all of that rust is from the old radiator.
In any case, I will flush it a few more times just to be safe.

Picture 023.jpg
1269 hits | 99.72 KB | Posted: 1/6/10
OK.. I got lazy and pulled out the air ratchet.
13MM bolts take off the rest of those holding on the water pump.
If you are on a smooth concrete garage floor, you might want to have some quik dry or kitty litter around.
Antifreeze is slick.

Picture 021.jpg
623 hits | 83.78 KB | Posted: 1/6/10
After removing the two small lines at the top of the pump, it was time to remove the AC/power steering bracket.
This takes 13 and 14MM sockets.

Picture 017.jpg
660 hits | 89.85 KB | Posted: 1/6/10
A 5/8 socket, a solid socket wrench and a 4 foot leverage makes quick work of the belt.

Picture 023.jpg
1269 hits | 99.72 KB | Posted: 1/6/10
OK.. I got lazy and pulled out the air ratchet.
13MM bolts take off the rest of those holding on the water pump.
If you are on a smooth concrete garage floor, you might want to have some quik dry or kitty litter around.
Antifreeze is slick.

Picture 024.jpg
692 hits | 105.12 KB | Posted: 1/6/10
This sediment did concern me a bit. It came off easy enough but, hopefully all of that rust is from the old radiator.
In any case, I will flush it a few more times just to be safe.

Picture 017.jpg
660 hits | 89.85 KB | Posted: 1/6/10
A 5/8 socket, a solid socket wrench and a 4 foot leverage makes quick work of the belt.

Picture 021.jpg
623 hits | 83.78 KB | Posted: 1/6/10
After removing the two small lines at the top of the pump, it was time to remove the AC/power steering bracket.
This takes 13 and 14MM sockets.

Picture 002.jpg
607 hits | 97.29 KB | Posted: 1/6/10

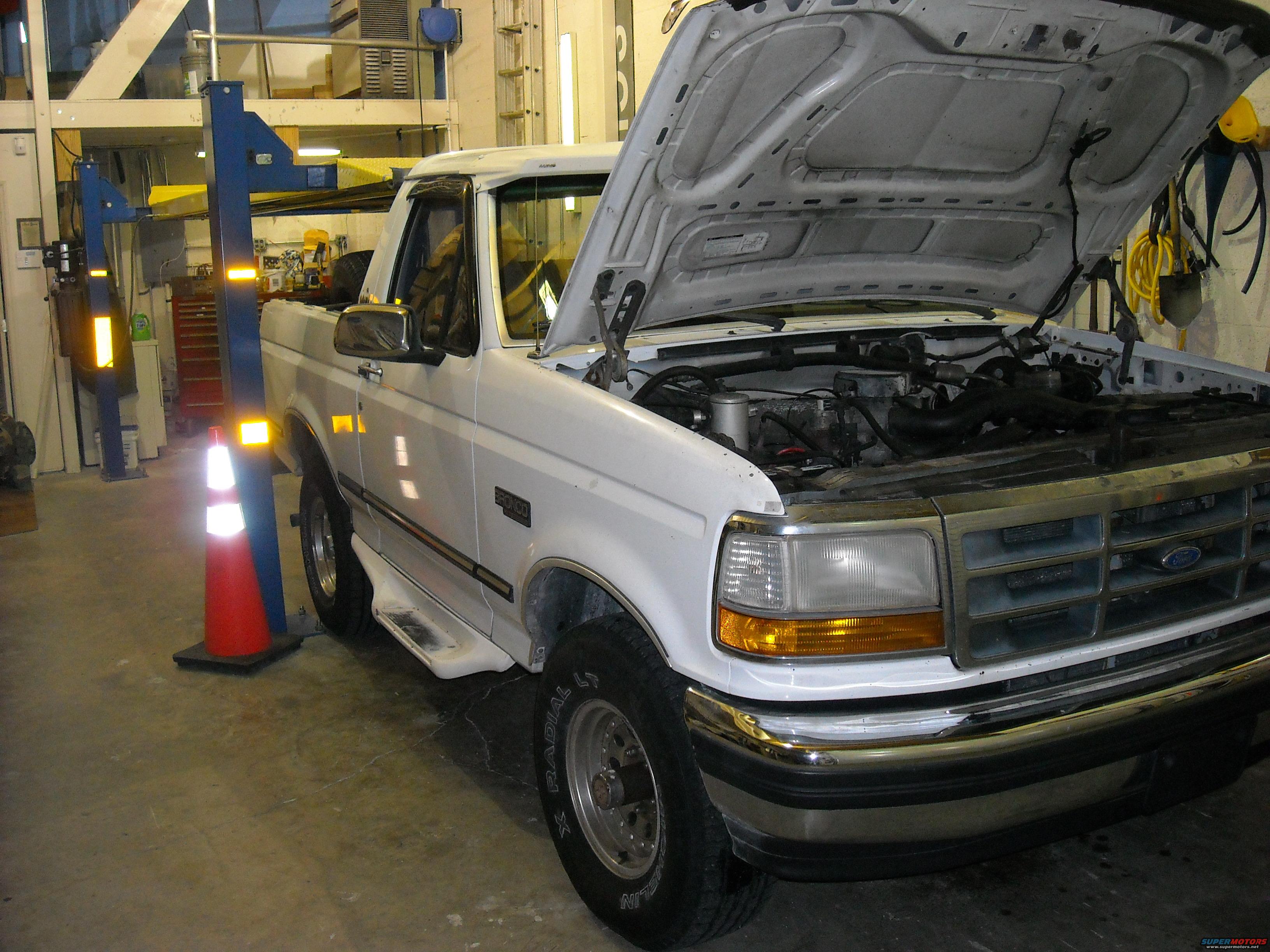

Here is the patient, ready for surgery.

Picture 015.jpg
590 hits | 95.54 KB | Posted: 1/6/10
With the radiator and shroud out of the way, this is what we are looking at.
There is a LOT more room to work now.
Notice the lower is still attached to the water pump. It is a pain to take off so I left it on until the pump came out.

Picture 031.jpg
581 hits | 98.83 KB | Posted: 1/6/10
Everything goes back together the same way it came off. You can't see it but I took the time to paint the fan blades black.
Not a big deal.

Picture 026.jpg
576 hits | 134.97 KB | Posted: 1/6/10
The old pump verses the new pump..
Yeah, it was time for a new one.
If you look at the old pump in about the 2:00 position, that is where it was leaking from.

Picture 007.jpg
572 hits | 96.57 KB | Posted: 1/6/10
I also took off the rubber air inlets so I could have more room to work.
8MM works here also
