1996 Ford Bronco
Owner: Steve83         (All of this user's registries on SuperMotors)
From: Memphis, TN, U.S.A.        (Other registries in TN)
Year, Make, & Model: 1996 Ford Bronco        (Other Ford Broncos)
Avatar:
Clubs: SuperFord.org        (Other vehicles in this club)
Nickname: Carcass Stripped
Mileage: 299062
Engine: 5.8L MAF OBD-II
Drivetrain: E4OD, BW1356ESOF, D44IFS 3.54 open, Ford 8.8" 3.55 open
Notes: Totalled by a local Bronco killer; traded to me for some labor on his replacement white '96 EB Bronco. I'll strip out all the usable parts, and I might put some of them into the '93EB I'm building.
Last Updated: 12/23/2023
Hits: 3846
Album
Folder Hits Comments Created Updated
folder The Carcass830026,13405/7/1812/23/23
folder Temp000007/19/183/24/19
Newest Media Files
278 hits | 136.07 KB | Posted: 3/24/19

Most of the body tub is going to the scrapyard, on top of most of the frame, and most of the '94 Crown Vic, along with some other metal.

After dumping this load, I stripped the trailer, pressure-washed it a few times, straightened it, cut off some g...
390 hits | 101.83 KB | Posted: 1/20/19

My new toy is a 660-lb (300 kg) digital hanging scale, which will stay on my engine hoist except when I need it elsewhere temporarily.
IF THE IMAGE IS TOO SMALL, click it.

Odo 299,062.2mi

UPDATE: The ...
284 hits | 80.26 KB | Posted: 12/28/18

It's a cool rainy day, so I put the exterior wiring harness sections outside, and washed them with PurplePower. I could pressure-wash them, but I assume it would blast off most of the wrapping. So I'll just leave them outside for a few more rain/PP...
347 hits | 104.42 KB | Posted: 12/28/18

Now that my sandblaster is working so well, I finished the accessory brackets, pulleys, & Saginaw. I painted the tensioner's LH-threaded bolt head yellow.

Odo 299,062.2mi
418 hits | 68.77 KB | Posted: 12/14/18

Original '96 5.8L MAF sensor (F5UF-12B579-BA, built 1996 Feb.19 - 2nd shift) & venturi

One of the screw heads (Tamper Torx 15) is epoxy-filled to prevent removal of the sensor from the body.

Possible replacement PN: [url=https://www.amazon.com/dp/B...
268 hits | 79.21 KB | Posted: 12/14/18

Original '96 5.8L IAC (F4TE-9F715-AA) built 1996 Feb. 07 3rd shift 1st line
277 hits | 83.32 KB | Posted: 12/14/18

After mounting the plenum, the throttle body (carefully sandblasted & clearcoated) went on with a new gasket.
289 hits | 81.63 KB | Posted: 12/12/18

Eventually, I got all the bolts in (with nickel anti-seize) & torqued. Then I added the heat shields & accessory nuts.

[url=https://www.supermotors.net/registry/media/1055473][img]https://www.supermotors.net/getfile/1055473/thumbnail/exhmanbolt.jpg...
347 hits | 77.88 KB | Posted: 12/12/18

Eventually, I got all the exhaust manifold bolts in (with nickel anti-seize) & torqued. Then I added the heat shields & accessory nuts.

[url=https://www.supermotors.net/registry/media/1055473][img]https://www.supermotors.net/getfile/1055473/thumbna...
Most Viewed Files
909 hits | 81.61 KB | Posted: 5/26/18

Misfire sensor & tone ring behind the harmonic balancer ('96-only) on a 5.8L (5.0L same; 4.9L similar).
898 hits | 74.68 KB | Posted: 7/19/18

These '96 water pump bolts are slightly different from the '93's. The pump is a new Ford F3TZ-8501-C, aka MotorCraft PW254.

[url=https://www.supermotors....
867 hits | 98.39 KB | Posted: 5/7/18

Owww...

Odo 299,062.2mi
694 hits | 116.71 KB | Posted: 5/10/18

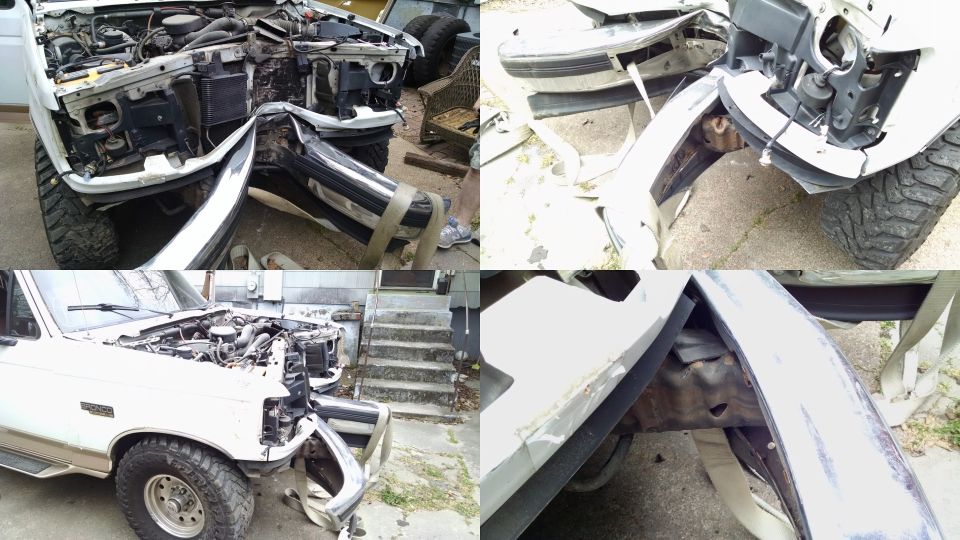

In addition to the folded frame & punctured timing cover, the axle is twisted due to the front crossmember being mashed back. The driveshaft & yoke hit the frame & bent it down.

Timing cover original casting number: RF-F6TE-6059-JB
Replacement PN: ...
647 hits | 72.52 KB | Posted: 5/26/18

'96 5.8L Engine Vacuum Harness (no 2ndry air or MAP)

. [url=https://www.supermotors.net/registry/media/1...
641 hits | 144.43 KB | Posted: 5/25/18

Some friends helped me flip the body off the frame so I could dismantle the chassis.
538 hits | 123.68 KB | Posted: 5/26/18

These are most of the tags on the truck.
IF THE IMAGE IS TOO SMALL, click it.

The one I forgot to label below the frame & above the camper is the ignition capacitor (F6UZ18832AA).
506 hits | 94.82 KB | Posted: 6/1/18

The missing chunk of timing cover was resting on the splash shelf. The milk in the oil pan is just from the pressure washing. See the NEXT several pics...

The timing cover gasket was on the verge of failure, indicated by the corrosion around the co...
500 hits | 131.22 KB | Posted: 6/1/18

I was amazed to find these original valve cover gaskets are steel, with just a thin inner lip of rubber. They adhered VERY well to the covers & heads. I'm seriously considering reusing them, if I can't buy identical replacements. The intake gasket...
