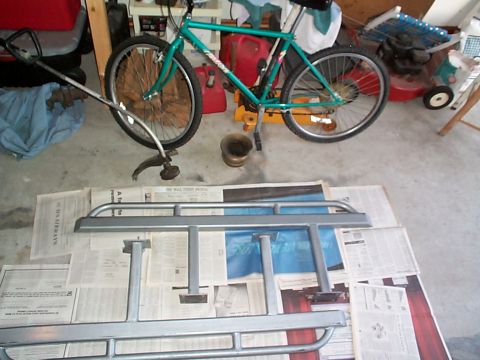

sliders 2.jpg 1320 hits | 91.49 KB | Posted: 9/22/03 Heavy duty sliders built by Dave Edwards High Desert Off Road. These will be installed once I get a...

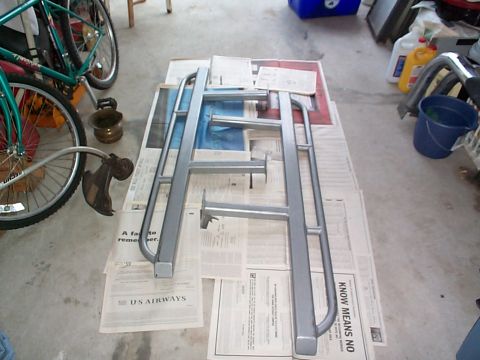

sliders1.jpg 1353 hits | 84.5 KB | Posted: 9/22/03 Sliders will be mounted with 16 1 1/2 inch grade 8 bolts with washers and locking washers.

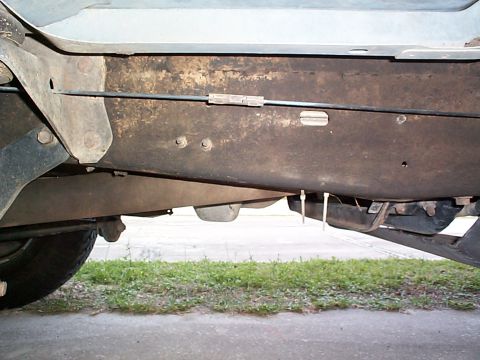

driverside1.jpg 1381 hits | 92.01 KB | Posted: 9/22/03 This is where the emergency brake cable runs along the drivers side frame rail. The slider will moun...

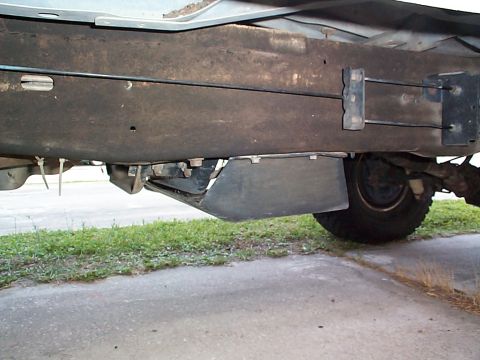

driversside2.jpg 1043 hits | 87.48 KB | Posted: 9/22/03 Towards the rear of the driver's side.

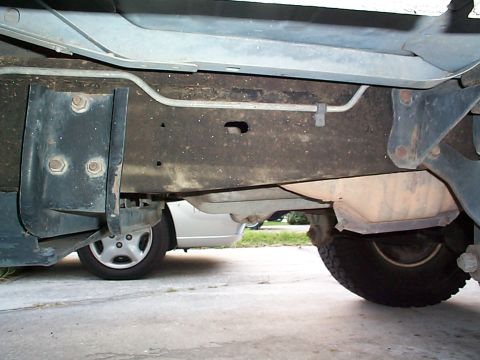

passenger1.jpg 1151 hits | 85.78 KB | Posted: 9/22/03 Passenger side frame rail towards the front, this side will be much easier to do than the the driver...

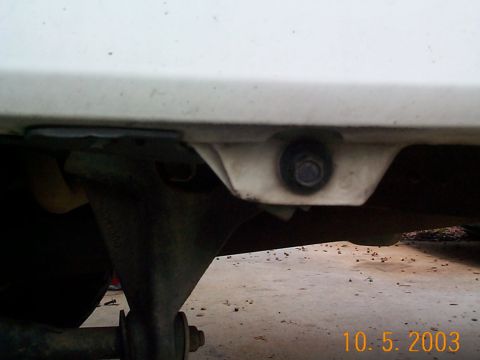

Dcp00463.jpg 1208 hits | 55.95 KB | Posted: 10/6/03 Front frender mount that needs to be trimmed all the way down in order to mount the slider flush wit...

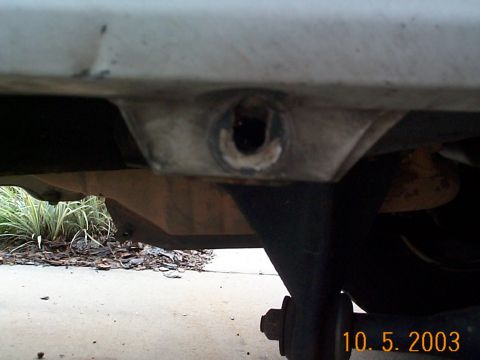

Dcp00464.jpg 1106 hits | 65.47 KB | Posted: 10/6/03 Remove bolt that mounts fender, then use a 4 inch grinder to remove the metal where the mount origin...

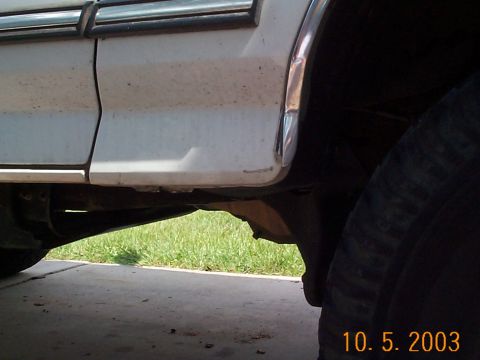

Dcp00465.jpg 1192 hits | 69.02 KB | Posted: 10/6/03 This is what the fender mount will look like once it has been trimmed down. The grinder made pretty ...
Dcp00466.jpg 1193 hits | 70.77 KB | Posted: 10/6/03 Once the mount was ground off we had to drill a hole further up to mount another bolt. Since you hav...

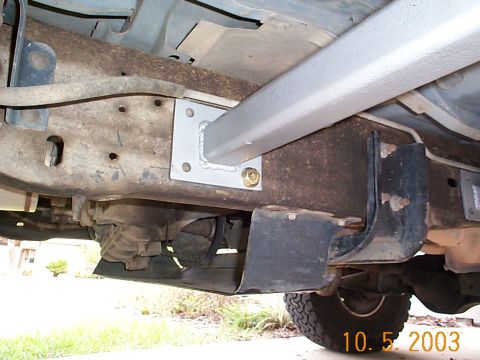

Dcp00467.jpg 1107 hits | 91.46 KB | Posted: 10/6/03 Passenger side slider mounted and held in place with one bolt. Undo the clips that hold the fuel ret...

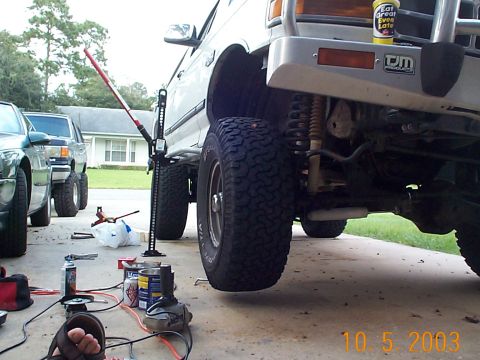

Dcp00469.jpg 1229 hits | 96.65 KB | Posted: 10/6/03 Here is the proof. Passenger side slider completely mounted and put to the test. Its holding the ful...

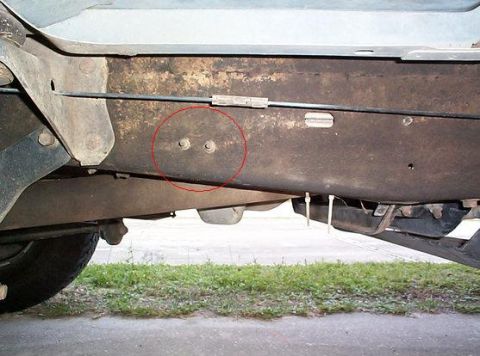

driverside2.jpg 1148 hits | 48.7 KB | Posted: 10/7/03 Once the fender mount has been relocated on the driver's side, you have to unbolt these two nuts tha...

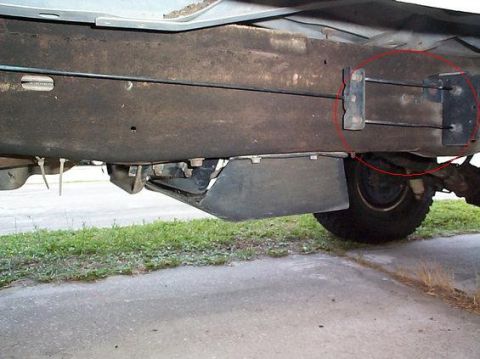

driverside3.jpg 1039 hits | 46.89 KB | Posted: 10/7/03 On the rear of the driver's side there are bolts through the frame for the fuel filter bracket. Remo...

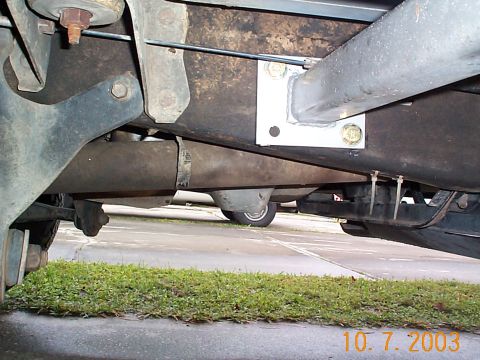

driversidefront.jpg 1099 hits | 107.14 KB | Posted: 10/8/03 driver's side front pad mount. There is a fuel line bracket that runs behind this mount, bolts to th...

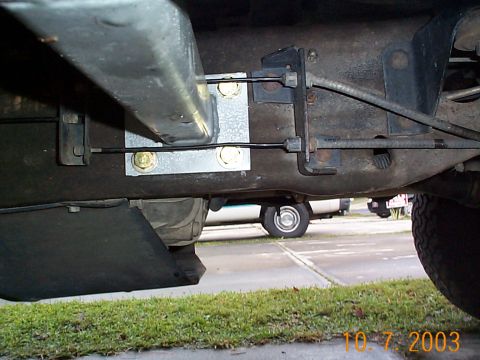

driversiderear.jpg 1153 hits | 93.41 KB | Posted: 10/8/03 Rear driver's side pad mounting, there is about a 1/4 inch clearance between the ebrake cable and th...

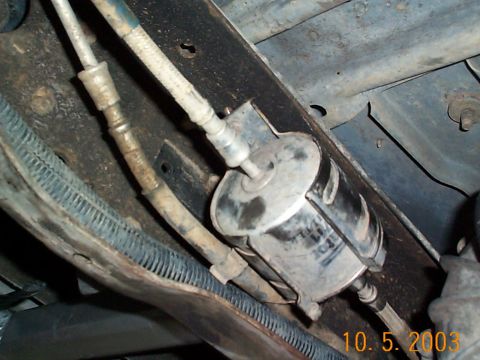

fuelfilter.jpg 1256 hits | 92.27 KB | Posted: 10/8/03 This is behind the rear pad mount on the driver's side. You must remove the bolts holding the fuel f...
Sliders / Framerails
