13TopStud.jpg | Hits: 4253 | Size: 55.78 KB | Posted on: 11/11/05 | Link to this image


I had already disconnected 1 hose when the core leaked all my coolant into the ventilation system, so I only had 1 hose, this 1 nut, & 3 connectors on this side to remove. Behind this harness clip, 11mm nut, & the lip of the outside box (black plastic) is a push-nut that retains the stud to the firewall. Later in this procedure, the stud can be pulled thru that nut without removing the temperature servo or inside nut by pushing here.

Url
Tag
Thumb

01Start.JPG | Hits: 3707 | Size: 79.12 KB | Posted on: 11/11/05 | Link to this image


First, remove the 2 nuts below the ventilation box at the front edge of the carpet of the passenger footwell. There are several connectors accessible with the glove box folded down, including the antenna at the bottom of the dash frame, the airbag module, & the temperature servo. The firewall grommet for the harness can also be pulled loose, and there are 2 brace bolts on the L side of the glovebox opening.

Url
Tag
Thumb

02Start.JPG | Hits: 3852 | Size: 88.26 KB | Posted on: 11/11/05 | Link to this image


With the kick panels & knee bolster removed, the steering shaft bolt, column brace nut, & lower dash fasteners can be removed. Pull the A-pillar covers & the front dash trim to access the final screws at the top. Necessary tools include: #2 phillips, 7mm, 8mm, 10mm, 11mm, 13mm, & 15mm sockets.

Url
Tag
Thumb

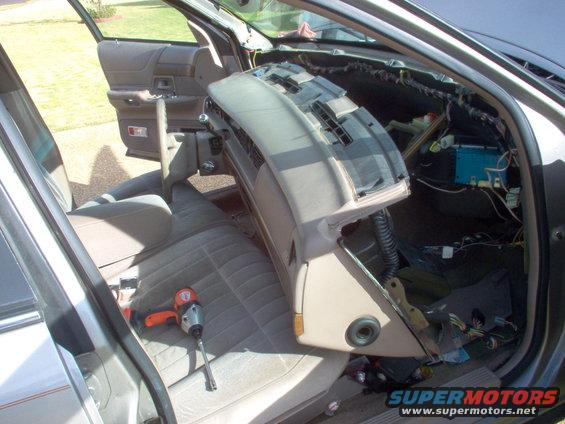

03DashLoose.JPG | Hits: 5332 | Size: 90.85 KB | Posted on: 11/11/05 | Link to this image


There's no need to disconnect the wiring or vacuum lines on the driver's side since this provides enough access to work. With the hoses & 3 nuts already removed, the box can now be pulled from the firewall. The top stud has a push-nut holding it to the firewall, but with firm force, it WILL slide off, releasing the box. There's no need to try to remove the servo or the nut on the inside end of the stud, but light hammering on the outside end of the stud may help. The push nut is between the outside box & the firewall, so the threads must be forced back thru it.

Url
Tag
Thumb

08CoreOut.JPG | Hits: 3886 | Size: 86.54 KB | Posted on: 11/11/05 | Link to this image


With the box off the firewall, the heater core cover can be removed. It's not necessary to remove the servo, which I did. Any coolant residue inside the box can be cleaned now, and the temperature blend door can be inspected for signs of breaking off its hinge rod. Any change or small objects lost into the defrost register can also be recovered.

Url
Tag
Thumb

09Cores.JPG | Hits: 9605 | Size: 90.99 KB | Posted on: 11/11/05 | Link to this image


All the foam from the original core must be carefully removed, cleaned, & transferred to the new core before installation.

Note that, everywhere this TSB mentions "electrolysis", the correct term is "galvanic action". Electrolysis is the breakdown of the molecules in an electrolytic solution into their component chemicals due to an electrical charge being applied to the solution. (Hydrogen being emitted from a battery under a hard charge is an example of electrolysis since the water is breaking down into Hydrogen & Oxygen.) Luigi Galvani studied the interaction of electricity & metals exposed to an electrolytic solution. Since the phenomenon described in the TSB deals with the metal of the heater core & not the chemistry of the coolant, it's a galvanic process.
************************************************************
TSB 06-21-19 Heater Core Leakage and Electrolysis

Publication Date: 10/30/06

FORD: 1997-2002 Contour
1997 -2007 Crown Victoria, Mustang, Taurus
2000-2007 Focus
2002-2005 Thunderbird
2005-2007 Five Hundred, Freestyle
2006-2007 Fusion
1997-1999 F-2S0 Light Duty
1997 -2003 Windstar
1997-2007 E-Series, Expedition, Explorer, F-150, F-53 Motorhome Chassis, F-Super Duty, Ranger
2000-2005 Excursion
2001-2003 Explorer Sport
2001-2007 Escape, Explorer Sport Trac
2004 F-15O Heritage
2004-2007 Freestar
2005-2007 Escape Hybrid
1999-2007 F-650, F-750
LINCOLN: 1997-2002 Continental
1997-2007 Town Car
2000-2006 Lincoln LS
2006 Zephyr
2007 MKZ
1998-2007 Navigator
2002-2003 Blackwood
2003-2005 Aviator
2006-2007 Mark LT
MERCURY: 1997 -2002 Cougar, Mystique
1997-2005 Sable
1997-2007 Grand Marquis
2005-2007 Montego
2006-2007 Milan
1997-2002 Villager
1997-2007 Mountaineer
2005-2007 Mariner
2006-2007 Mariner Hybrid

This article supersedes TSB 01-15-06 to update the vehicle model years and Service Procedure.

ISSUE: The majority of repeat heater core leaks are due to high flow rate or use of poor quality coolant. However, electrolysis should also be checked, especially when repeat repairs have occurred.

ACTION: If the heater core is leaking, review the location of the leakage and check the condition of the coolant.

SERVICE PROCEDURE
1. If leaks are found on the inlet (or outlet) tubes entering / exiting the heater core, it is most likely due to due to high flow rate. Replace the heater core and install a restrictor in the heater hose closest to the engine block, reference Workshop Manual, Section 412.
2. lf leaks are found in the body of the heater core itself, and they do not appear to be the result of physical damage like contact or puncture, check the coolant for possible electrolysis.

Testing For Electrolysis
Check for voltage in the cooling system by touching the negative contact of a voltmeter to the battery ground or a known good ground and suspend the positive lead in the coolant, making sure it is in contact with the coolant, but not touching any metal part of the radiator or cooling system. Both AC and DC voltages must be checked. Vehicles normally have DC voltages; however, a faulty engine block heater or faulty diode in the alternator can produce AC voltages. It is understood that coolant is lost due to heater core failure but try to obtain a voltage reading on the old coolant in the engine block before addition or replacement. To keep more coolant from exiting the heater core, clamp off heater core lines and measure coolant in the engine block. Try not to dilute the original coolant with new coolant during testing if possible.
1. Determine whether coolant condition is acceptable.
a. Remove both cables from the battery and ensure they do not contact each other or the vehicle.
b. Touch negative lead of DC voltmeter to engine ground and positive lead in the coolant.
NOTE POSITIVE TEST PROBE IS IN THE COOLANT FOR TESTING.
c. Check the voltage in the cooling system. If less than or equal to 0.4 volts (VDC) OK, reconnect battery cables and proceed to Step 2.
d. lf greater than 0.4 V, flush cooling system thoroughly.
e. Recheck voltage less than or equal to 0.4 V.
f. Reconnect battery cables.
g. Refill the system with appropriate Motorcraft® engine coolant.
2. Check for loose or missing grounds at static conditions.
a. Turn off all accessories. Turn ignition on but do not start engine.
b. Test with ground probe to battery ground, engine ground, and vehicle ground sequentially.
c. Voltage less than or equal to 0.4 V on all grounds OK.
d. Any one greater than 0.4 V, check and clean ground cable connections.
e. Check accessories without using the on/off switch on the vehicle instrument panel; use a jumper wire to ground.
f. Plug in engine block heater, if equipped, and test.
g. Recheck voltage less than or equal to 0.4 V.
h. Unplug engine block heater, if equipped.
3. Check for loose, missing, or inadequate grounds.
a. Test with ground probe to battery ground, engine ground, and vehicle ground sequentially.
b. Crank engine but do not start.
c. Monitor voltage while cranking. Less than or equal to 0.4V OK
d. If greater than 0.4 V, ground or repair starter.
e. Start engine and run at about 2000 rpm.
f. Turn on all accessories including those customer only uses occasionally such as CB radio, cell phone, etc.
g. Test with ground probe to battery ground, engine ground, and vehicle ground sequentially.
h. Voltage less than or equal to 0.4 V OK
i. If greater than 0.4 V, turn off one item at a time until voltage drops to less than or equal to 0.4 V. Repair ground to the accessory just identified.
j. Recheck voltage less than or equal to 0.4 VDC
k. Turn the DVOM to AC volts.
l. Check for ANY AC voltage greater than 0.4.
m. If any AC voltage is present, try turning off each accessory one at a time including blower motor and any fan motors.
n. If AC voltage is still present, shut engine off and remove B from the alternator and tape it up, then retest.
o. If voltage drops gradually to less than or equal to 0.4 VAC, the ground straps may simply be overloaded by added accessories. Test by using a heavy gauge jumper to ground. If indicated, install heavier gauge ground strap(s) and recheck.
NOTE If vehicle is equipped with electric cooling fans, be sure they cycle during this testing and monitor voltage when they are on, and off.

CAUTION: DO NOT GROUND HEATER CORE. IF THE HEATER CORE IS GROUNDED, YOU HAVE PROVIDED THE ELECTROLYSIS A PATH THROUGH THE HEATER CORE. THIS WOULD CAUSE THE HEATER CORE TO BECOME AN ANODE OR RECEIVER AND IT WOULD PROMOTE THE ELECTROLYSIS, OR ANY STRAY VOLTAGE TO USE THE COOLANT AS THE GROUND PATH.
4. Refill the engine cooling system, reference Workshop Manual, Section 303-03.
NOTE IF THE HEAT OUTPUT IS INSUFFICIENT, OR IF THE ENGINE DOES NOT REACH NORMAL OPERATING TEMPERATURES, VERIFY PROPER THERMOSTAT OPERATION AND REPEAT PROCEDURE IF REQUIRED.

WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
************************************************************
Note that, everywhere this TSB says "electrolysis", the correct term is "Galvanic action".
************************************************************
TSB 01-15-06 Repeat Heater Core Failure

Publication Date: JULY 26, 2001

FORD: 1985-94 TEMPO
1985-97 THUNDERBIRD
1985-2002 CROWN VICTORIA, ESCORT, MUSTANG
1986-2002 TAURUS
1988-93 FESTIVA
1993-97 PROBE
1994-97 ASPIRE
1995-2000 CONTOUR
2000-2002 ESCORT ZX2, FOCUS
2002 THUNDERBIRD
1985-90 BRONCO II
1985-96 BRONCO
1985-97 F-250 HD, F-350
1985-2002 ECONOLINE, F-150, RANGER
1986-97 AEROSTAR
1988-97 F SUPER DUTY
1991-2002 EXPLORER
1995-2002 WINDSTAR
1997-2002 EXPEDITION
1999-2002 SUPER DUTY F SERIES
2000-2002 EXCURSION
2001-2002 ESCAPE, EXPLORER SPORT TRAC, EXPLORER SPORT
LINCOLN 1985-92 MARK VII
1985-2002 CONTINENTAL, TOWN CAR
1993-98 MARK VIII
2000-2002 LS
1998-2002 NAVIGATOR
MERCURY: 1985-94 TOPAZ
1985-97 COUGAR
1985-2002 GRAND MARQUIS
1986-2002 SABLE
1991-99 TRACER
1995-2000 MYSTIQUE
1999-2002 COUGAR
1993-2002 VILLAGER
1997-2001 MOUNTAINEER

ISSUE: Some vehicles may exhibit (repeat) heater core leaks. This may be caused by a chemical reaction called electrolysis. Electrolysis involves an ion exchange between the heater core and engine coolant which can result in a breakdown of the heater core material. This is similar to the operation of a battery.

ACTION: Check for electrolysis on any vehicle with a heater core failure. If electrolysis is verified, flush the coolant and follow additional steps as required. Refer to the following Service Procedure for details.

SERVICE PROCEDURE - Electrolysis Inspection:
If there is a condition of a heater core leaking or repeat heater core leak, check for electrolysis using the following procedure:

1. To check for electrolysis use a DVOM set on DC volts. Place the positive probe of the meter in the engine coolant and the negative probe on the negative battery post.
2. Adjust engine throttle to 2000 RPM to properly get coolant flow and true electrolysis voltages.
3. If more than .4V is recorded, flush the coolant and recheck (follow guidelines in TSB 98-23-16 for Cougar). See Coolant Fill Procedure below to remove trapped air on 4.6/5.4/6.8L modular engines.
NOTE: EXPORT MARKETS, BE SURE THE WATER IS DESALINATED.
4. If there is still excessive voltage present in the coolant, check the engine to body/battery grounds. Also, verify proper grounding of any aftermarket electrical/electronic equipment which has been installed into the vehicle. Improperly grounded electrical devices can cause electrolysis to occur.
5. If the condition is still present after the grounds have been checked, it may be necessary to add extra grounds to the heater core and engine. A hose clamp can be used to secure a 16 AWG stranded copper wire to the heater core inlet tube. The other end should be secured to an EXISTING FASTENER on the body sheet metal. Extra grounds to the engine should be attached between EXISTING FASTENERS on the engine and body sheet metal. Verify continuity of any added grounds to the negative battery terminal.
6. If the condition is still present, add a restrictor (part F1UZ-18D406-A) on the inlet hose with the arrow facing the direction of coolant flow (toward heater core). Cut the line and install with 2 hose clamps. It is important that the restrictor be installed in the right direction of flow and as close to the engine block as possible (not near the heater core itself).

Coolant Fill Procedure
At times, in order to completely remove any trapped air in the cooling system of vehicles equipped with 4.6/5.4/6.8L modular engines, it may be necessary to use the following procedure:

1. Disconnect the heater hose at the right front or rear of the engine.
2. Remove the thermostat and housing.
3. Using the thermostat opening, carefully fill the engine with the proper clean coolant mixture until observed at the engine side heater hose connection.
4. Reconnect the heater hose and reinstall the thermostat and housing.
5. Fill the degas bottle to the coolant fill level mark.
6. Run the engine until it reaches normal operating temperatures.
7. Select max heat and max blower speed on the climate system.
NOTE: IF THE HEAT OUTPUT IS INSUFFICIENT, OR THE ENGINE DOES NOT REACH NORMAL OPERATING TEMPERATURES, VERIFY PROPER THERMOSTAT OPERATION AND REPEAT PROCEDURE IF REQUIRED.


PART NUMBER PART NAME
F1UZ-18D406-A Restrictor

OTHER APPLICABLE ARTICLES: 98-23-16
WARRANTY STATUS: INFORMATION ONLY

Url
Tag
Thumb

12TopStud.jpg | Hits: 3607 | Size: 49.7 KB | Posted on: 11/11/05 | Link to this image


The box can be placed back onto the firewall, the 3 nuts re-installed, & the 2 hoses re-connected. Fill & pressure-test the system before proceeding.

Url
Tag
Thumb

06TopStud.jpg | Hits: 3364 | Size: 49.95 KB | Posted on: 11/11/05 | Link to this image


This is the top stud that causes so much trouble, but it SHOULD remain installed in the inside ventilation box..

Url
Tag
Thumb

07TopStud.JPG | Hits: 3368 | Size: 41.76 KB | Posted on: 11/11/05 | Link to this image


This is the top stud that causes so much trouble, but it SHOULD remain installed in the inside ventilation box.. The push nut isn't necessary - it's only used on the assembly line.
