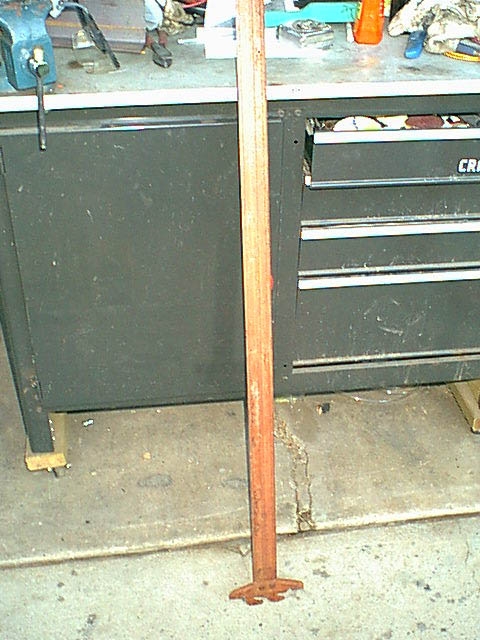

i needed a way to move the new shop press around the garage. More free bed rails. Here is the shop p...

press trolly3.jpg
528 hits | 81.54 KB | Posted: 8/23/06

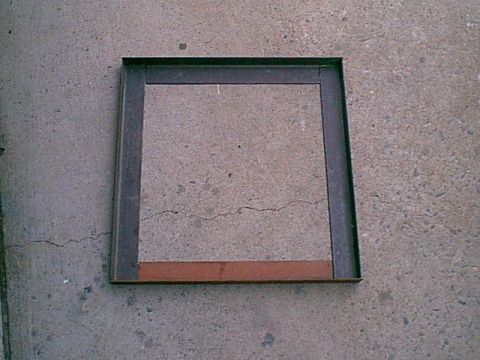

here is the plan it will wrap around the foot of the press.

press trolly2.jpg
456 hits | 76.48 KB | Posted: 8/23/06

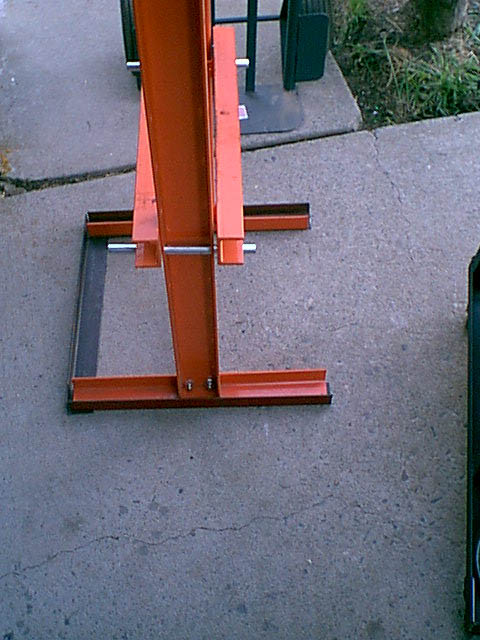

here is what it will be. the press will sit in the rails and this will allow the press to move aroun...

press trolly4.jpg
476 hits | 85.3 KB | Posted: 8/23/06

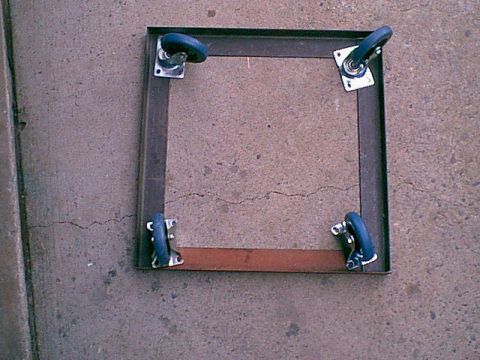

i got some Harbor Frieght wheels ($1.99 each) This was the only parts i had to buy.

dolly all parts.jpg
432 hits | 84.4 KB | Posted: 8/23/06

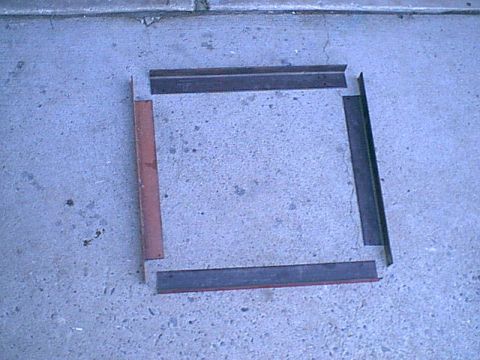

i notched the side rails to make the fit better. here are all 4 rails ready to weld and go.

dolly howitfits.jpg
437 hits | 86.62 KB | Posted: 8/23/06

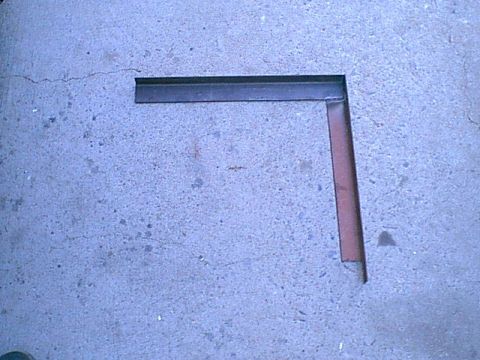

Here is how it goes together. easy welds top and bottom.

dolly weldedwehhels.jpg
473 hits | 93.76 KB | Posted: 8/23/06

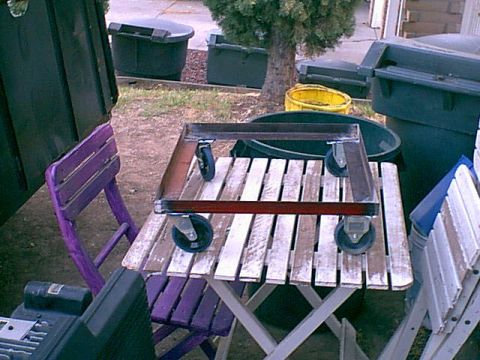

to make this a faster project, i found it was best to plug weld the casters the the rails.

dolly done weldedwheels.jpg
457 hits | 94.75 KB | Posted: 8/23/06

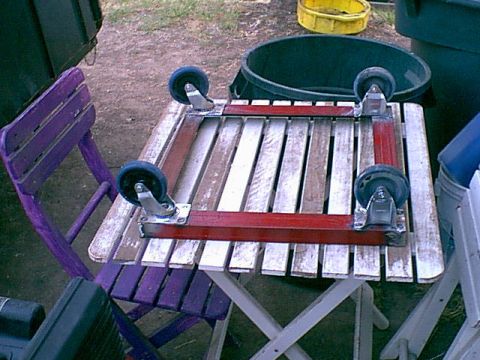

here it the bottom side. now time to dress the welds and knock off loose paint.

467 hits | 77.09 KB | Posted: 8/23/06

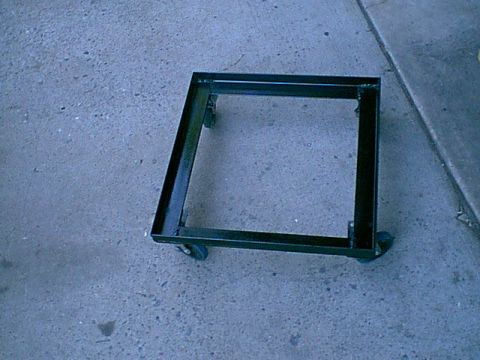

here it is with 2 coats of gloss black paint.

dolly under the press2.jpg
481 hits | 91.91 KB | Posted: 8/23/06

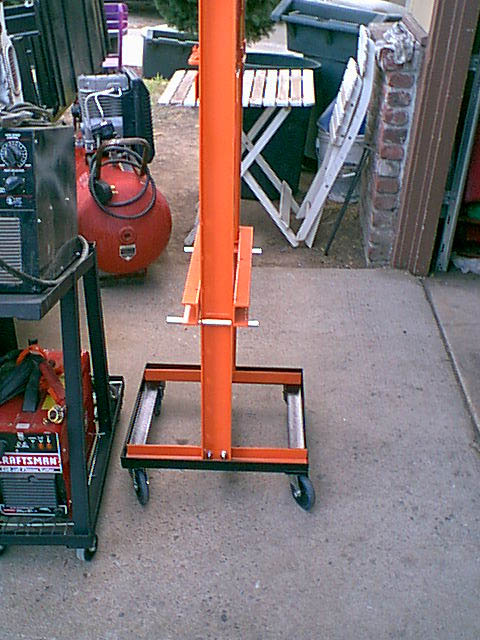

here it is under the press. what a difference it is to push the press and have it move vrs getting t...

dolly under the press.jpg
598 hits | 95.68 KB | Posted: 8/23/06

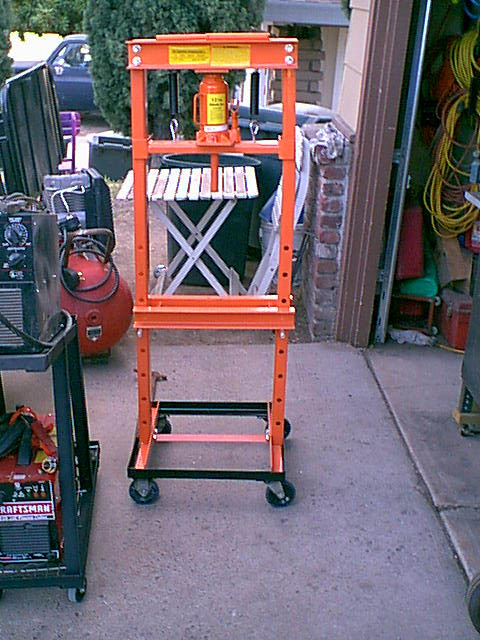

here is the front side of the press. my only complaint was i was too cheap and did not get casters w...
