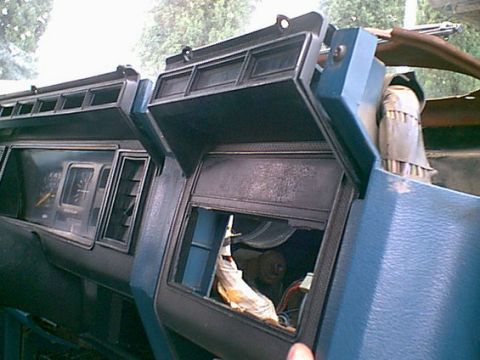

the top looks like a great place to install the Aux guages. it is wasted space on this bronco.

476 hits | 83.29 KB | Posted: 10/18/06

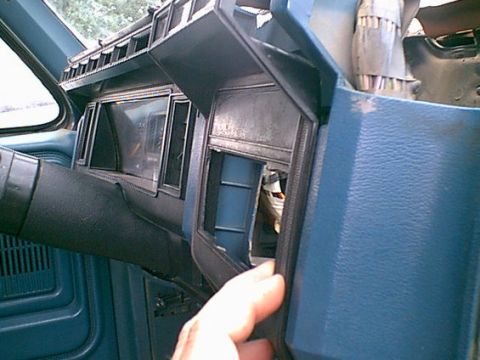

you can see all the unused space behind the bezel. all this is is a second harness cover. you can se...

448 hits | 85.44 KB | Posted: 10/18/06

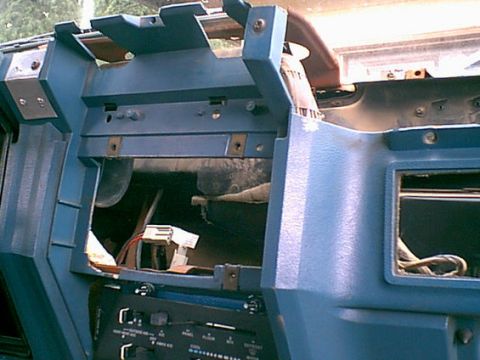

I just need to trim the blue plastic at the top.

guage face reinstalled.jpg
424 hits | 112.45 KB | Posted: 10/18/06

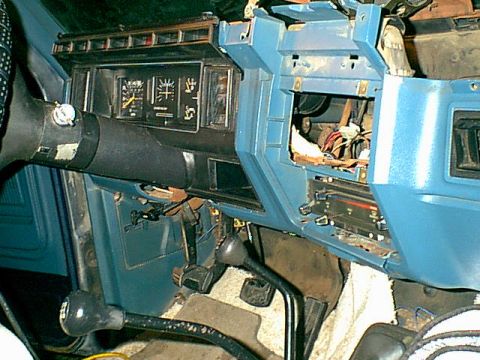

i wanted these to look factory. so i looked and fount the space on the top of the radio was wasted s...

615 hits | 64.34 KB | Posted: 10/18/06

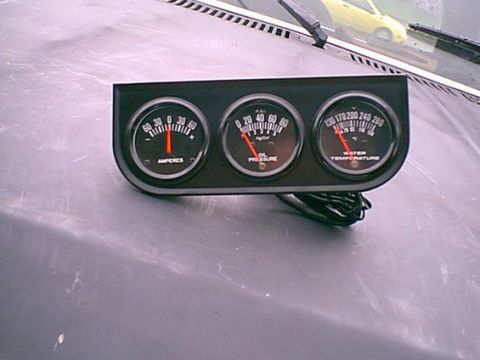

these were bought from Harbor Frieght for $6. amp/water temp/oil pressure. not too bad of a set.

429 hits | 61.7 KB | Posted: 10/18/06

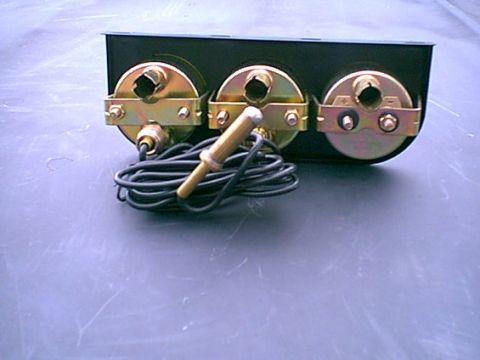

This is the back of the Harbor Frieght guage set. simple connections and easy to follow instructions...

temp probe.jpg
452 hits | 102.26 KB | Posted: 10/18/06

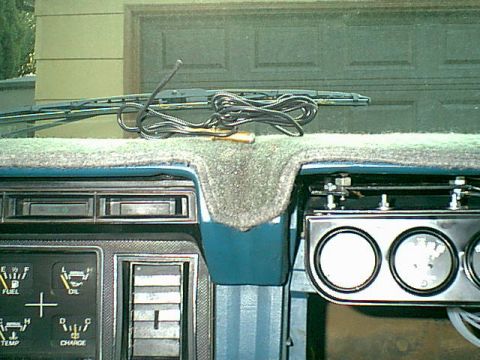

if you knew where you were going and did not install and remove the guages a few times these are goo...

405 hits | 107.24 KB | Posted: 10/18/06

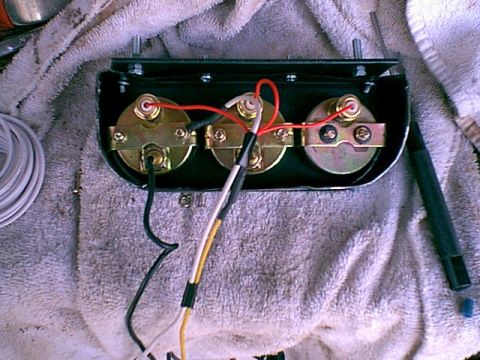

This is the back side of the aftermarket guages. I got this set from Pep Boys $20. The connections a...

pod mount.jpg
422 hits | 87.27 KB | Posted: 10/18/06
i wanted simple and easy to make and install. this adapter mounts to the factory top speaker mounts....

479 hits | 104.93 KB | Posted: 10/18/06

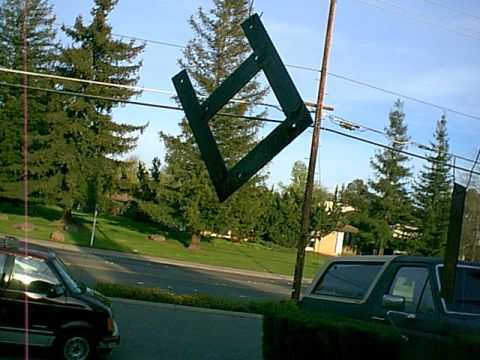

I coated it with some paint and it is ready to install.

434 hits | 91.12 KB | Posted: 10/18/06
one last angle ---still waiting for the paint to dry.....lol

460 hits | 87.79 KB | Posted: 10/18/06

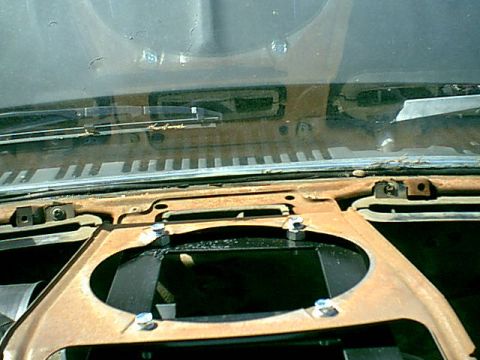

the dash was beat up bad in this bronco. i added a few nuts as spacers and used the factory speaker ...

411 hits | 71.94 KB | Posted: 10/18/06

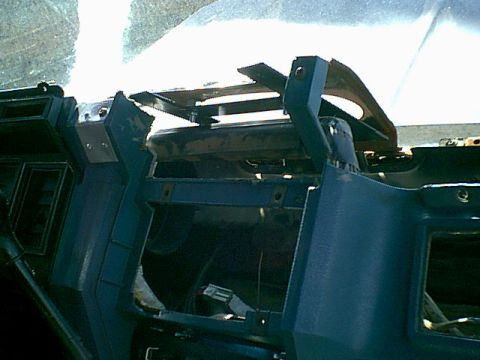

here is a lower view. i trimed out the plastic (if you do this watch the main wire harness across th...

506 hits | 104.86 KB | Posted: 10/18/06

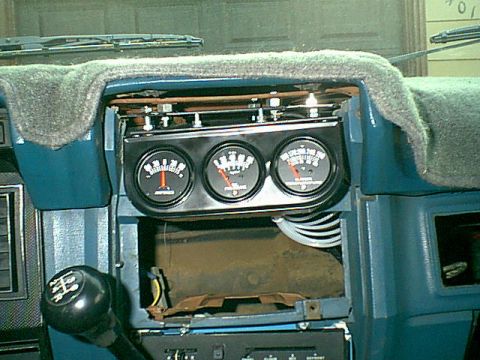

this was setting up the next step. the guages are just in place not completly installed. i wanted to...

474 hits | 57.89 KB | Posted: 11/3/06

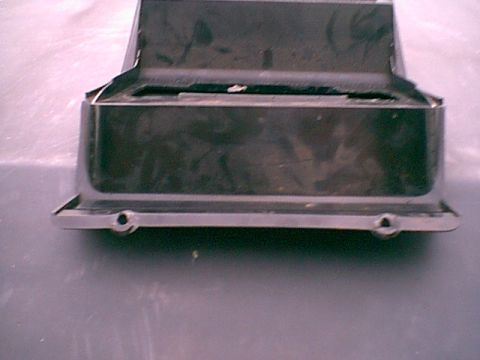

Here is the stock bezel before i started.

dash cover.jpg
473 hits | 71.08 KB | Posted: 11/3/06

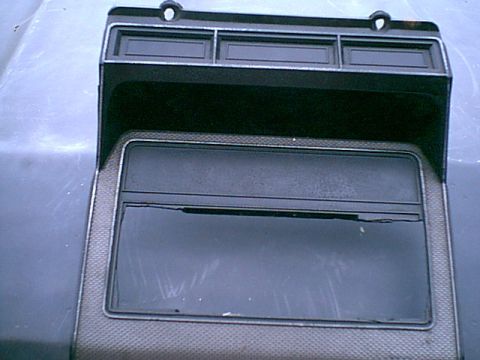

Here is the stock bezel. i am not too worried about chopping it up as you can see the PO did to inst...

dash cover2.jpg
442 hits | 78.59 KB | Posted: 11/3/06

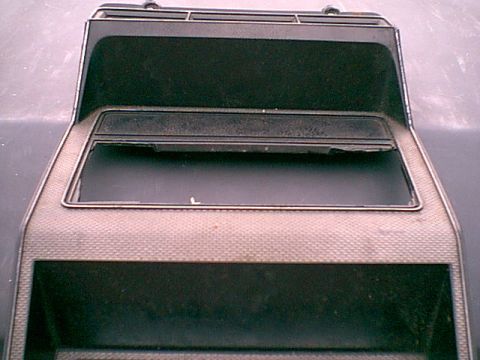

I going to remove almost all the top box.

449 hits | 64.77 KB | Posted: 10/18/06

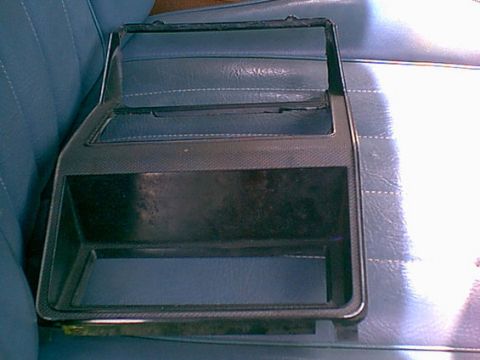

All i had to do the the bezel was trim out the top portion. this one was damaged anyway.

462 hits | 93.92 KB | Posted: 10/18/06

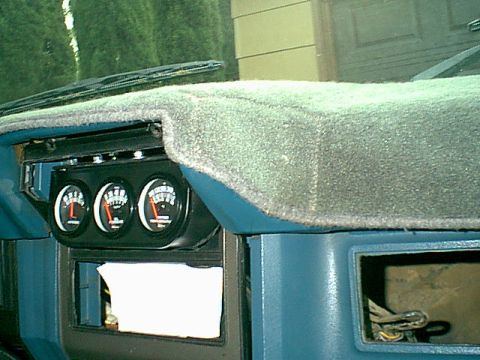

I had to trim the radio bezle (i going to get a new one and redo i think still not sure. this works...

487 hits | 76.59 KB | Posted: 10/18/06

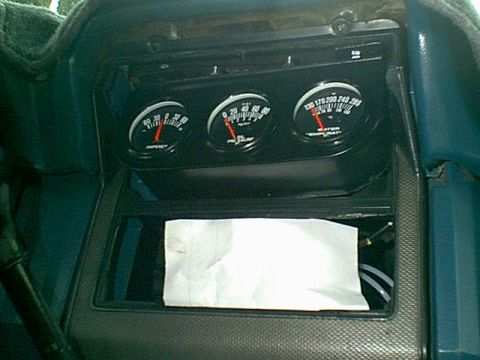

this is lookin up from the floor. i mad a sheet metal cover for the guages. you would normally see t...

455 hits | 72.57 KB | Posted: 10/18/06

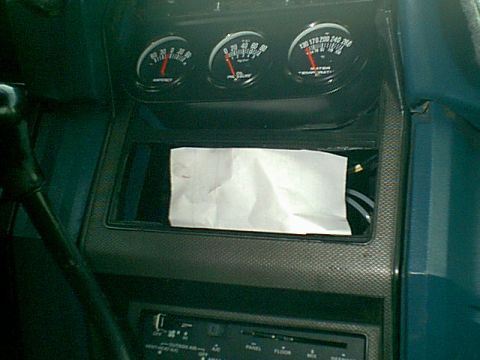

Here is another view of the install

510 hits | 81.77 KB | Posted: 10/18/06
this looks good and is easy to read.

443 hits | 104.76 KB | Posted: 10/18/06

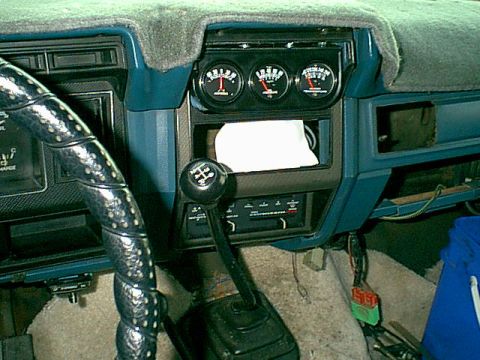

this is the view from the driver seat.

438 hits | 75.87 KB | Posted: 10/18/06

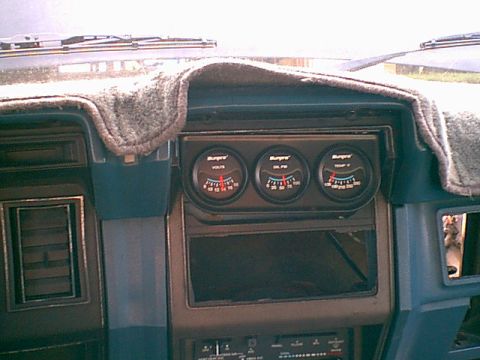

here are the SunPros install and from the drivers seat.

471 hits | 62.01 KB | Posted: 10/18/06

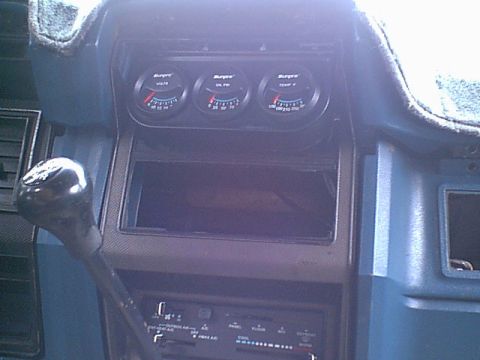

this is the SunPros from the pas side floor.

443 hits | 42.33 KB | Posted: 11/3/06

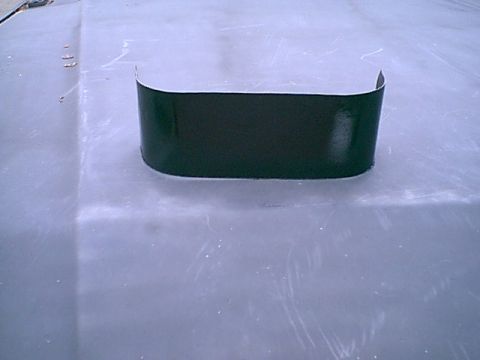

To hide or trim out the guages i took a piecs of sheet metal and bent and cut it to fit the pod. i r...

458 hits | 50.53 KB | Posted: 11/3/06

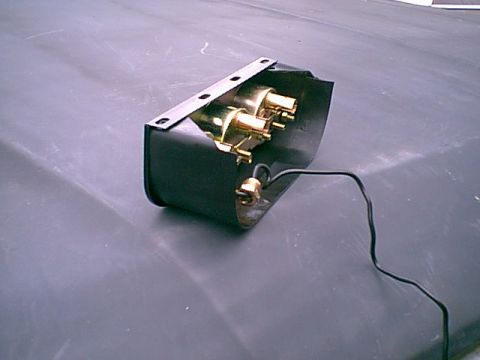

Here is the trim on the guagesas seen from the back.

461 hits | 57.93 KB | Posted: 11/3/06

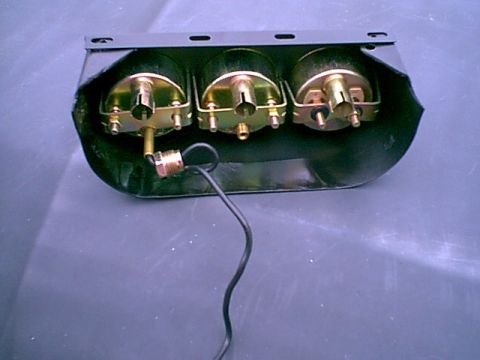

Here is another view of the trim panel.

Water temp sending Unit.jpg
425 hits | 92.16 KB | Posted: 10/18/06

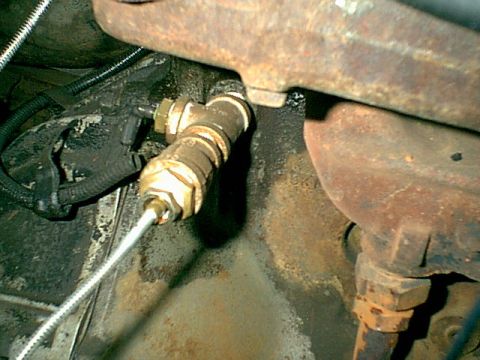

to install the water temp probe i just removed the stock sending unit and added a couple nipples and...

495 hits | 73.26 KB | Posted: 10/18/06

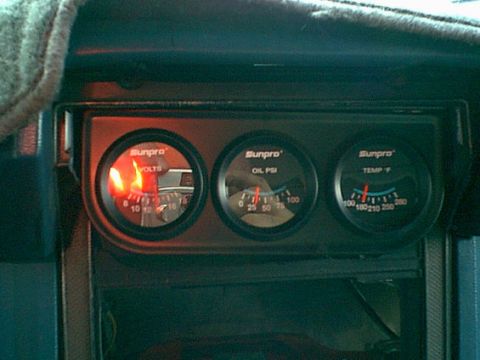

Here are the SunPros install and working. Volts at 14 (Thanks 3G swap) oil Pressure 27 at idle and w...

599 hits | 81.77 KB | Posted: 11/3/06

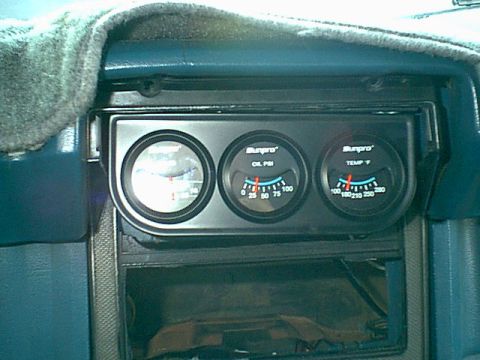

Here are the SunPro guages working and looking good.
