489 hits | 82.37 KB | Posted: 10/30/06

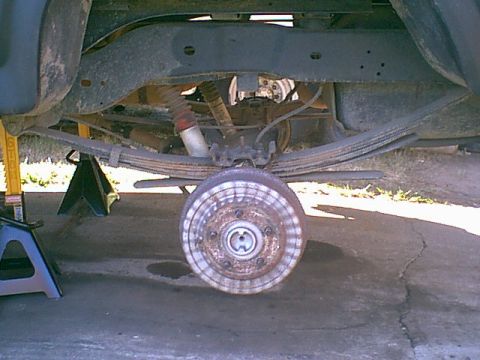

Here is how she all started out.
477 hits | 94.68 KB | Posted: 10/30/06

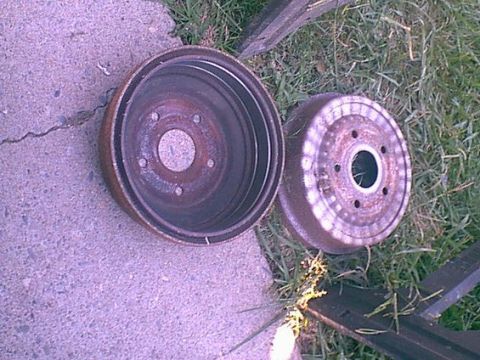

Here is the rear brakes as i got the beast. the drums were over spraied with the rim color. they had...
487 hits | 63.77 KB | Posted: 10/30/06

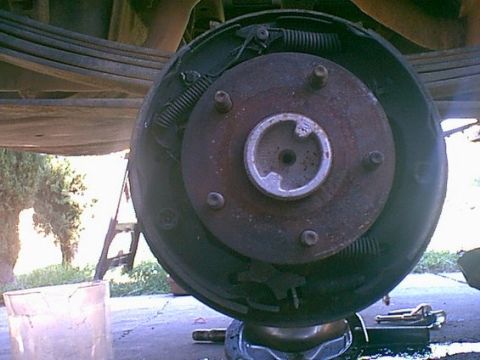

Here is the drivers side old brake system
driver brake.jpg
469 hits | 91.91 KB | Posted: 10/30/06

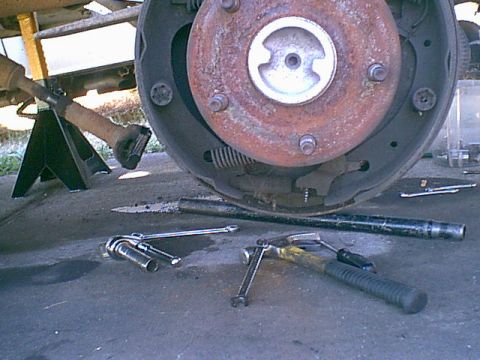

Here is the drivers side brake system as i started this repair.
no brakes.jpg
426 hits | 93.48 KB | Posted: 10/30/06

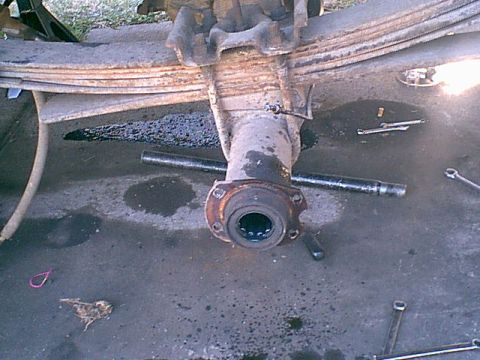

Here it all stripped down ready to be pulled out anf get regeared and new paint and brakes.
axle pass.jpg
477 hits | 99.89 KB | Posted: 10/30/06

I stripped all the brake parts off. i found the backing plates were torn up and needed to be replace...
axle driver side.jpg
505 hits | 79.14 KB | Posted: 10/30/06

Here is the driver side all torn down.
500 hits | 72.47 KB | Posted: 10/30/06

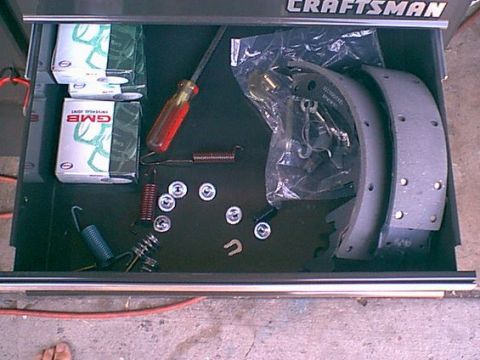

Here is the all new brake system. new shoes, drums, springs and hardware.
521 hits | 77.45 KB | Posted: 10/30/06

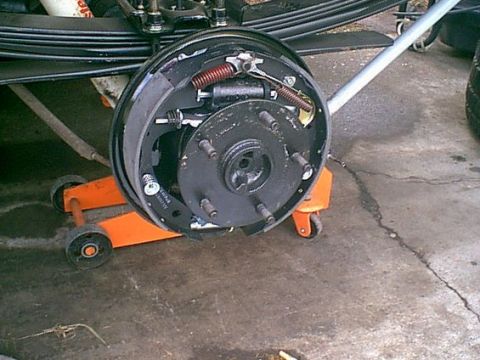

Here is the rear brakes all installed and looking new.
544 hits | 77.88 KB | Posted: 10/30/06

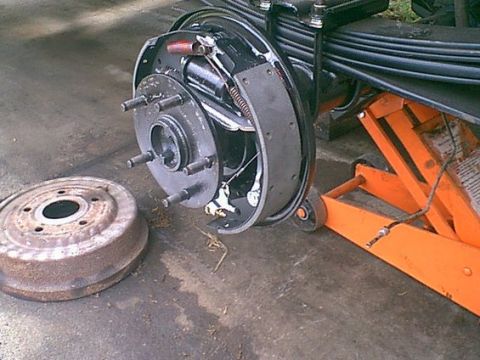

Here is another view of the new rear brakes.
511 hits | 69.69 KB | Posted: 10/30/06

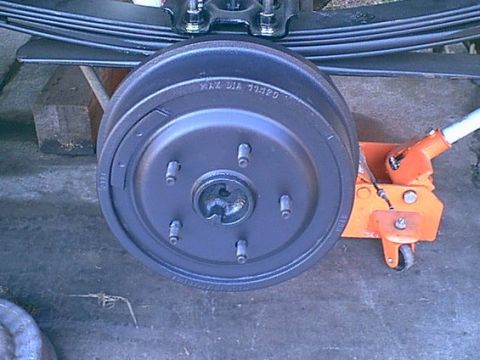

Here it is all completed with the new drums installed
418 hits | 89.52 KB | Posted: 10/30/06

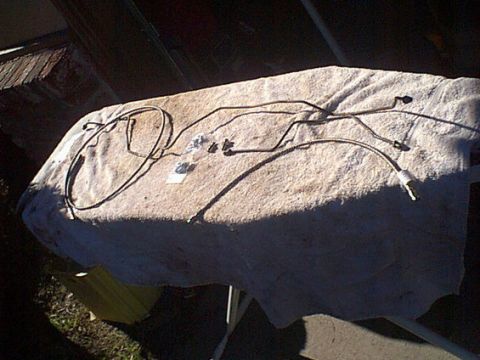

with the brake and drums being new i decided it was time to replace and upgrade the brake lines. i t...
line adapt.jpg
478 hits | 96.62 KB | Posted: 10/30/06

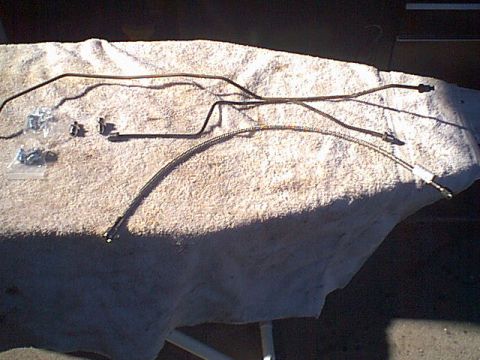

Here is the new lines and adapters i got to conver the rear brakes to braided lines.
new old.jpg
462 hits | 95.82 KB | Posted: 10/30/06

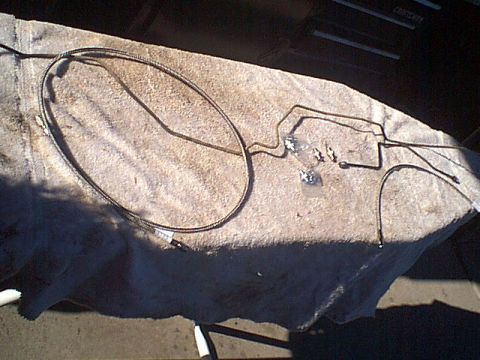

This is both new axle lines and the adapters.
450 hits | 77.56 KB | Posted: 10/30/06

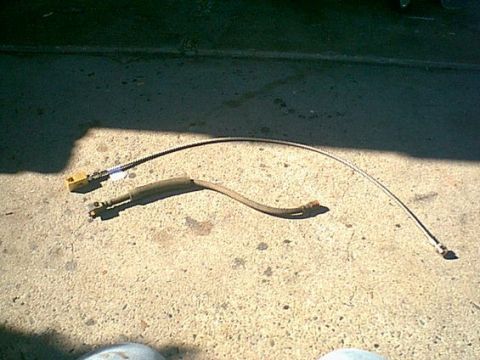

here is the rear flex line the stock on the bottom and the new on th top.
489 hits | 101.61 KB | Posted: 10/30/06

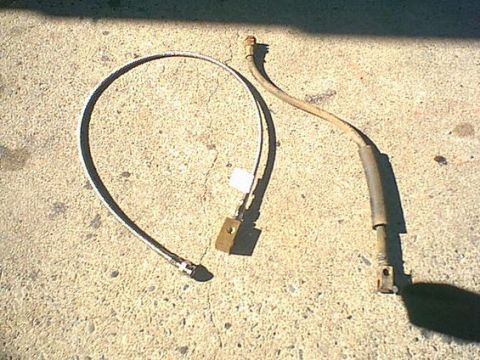

Here is another view of the old and the new lines.
447 hits | 56.19 KB | Posted: 10/30/06

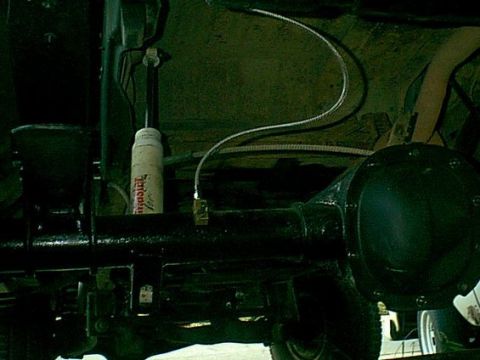

the flex line went right in place of the stock rubber line. the axle vent goes thru the bottom of th...
474 hits | 80.26 KB | Posted: 10/30/06

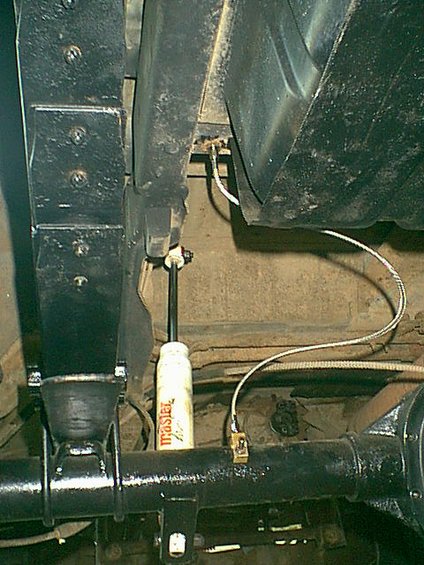

here you can see where the line connects to the frame. it is the same line as the stock rubber line.
468 hits | 92.32 KB | Posted: 10/30/06

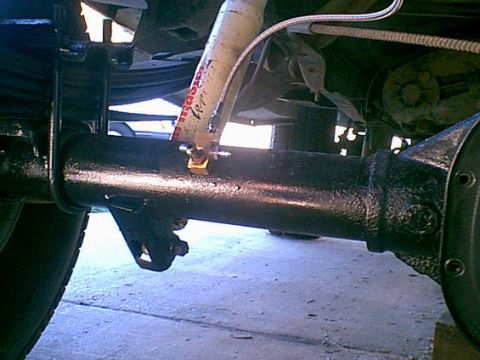

to instal the braided lines i added the adapters to the disti block. these are AN adapters.
rear disti block.jpg
467 hits | 101.19 KB | Posted: 10/30/06

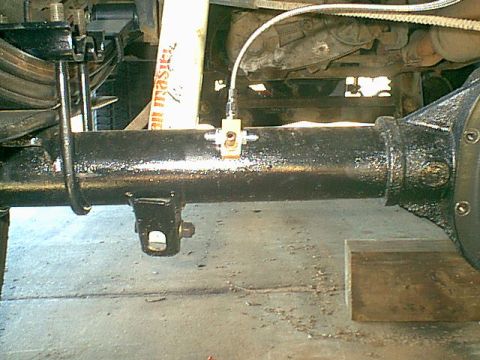

here is the disti block ready to get the new lines.
460 hits | 88.27 KB | Posted: 10/30/06

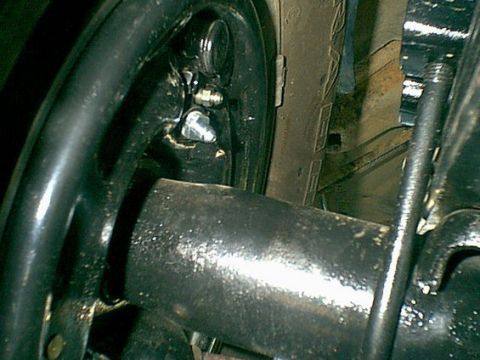

i added the AN adapter to the wheel cylinder on the drivers side.
436 hits | 90.05 KB | Posted: 10/30/06

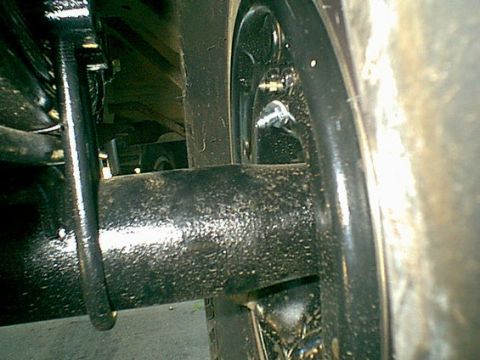

here is the AN adapter on the pass side wheel cylinder.
472 hits | 85.63 KB | Posted: 10/30/06

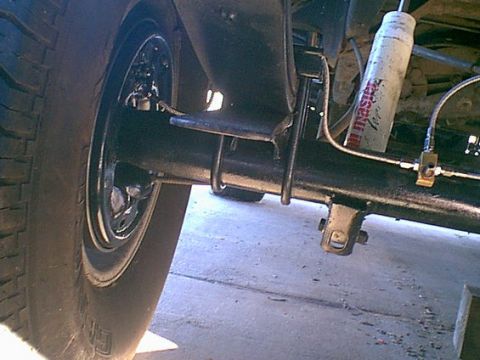

i got the lines longer than i thought and i went over the spring and connected the wheel to the dist...
446 hits | 85.67 KB | Posted: 10/30/06

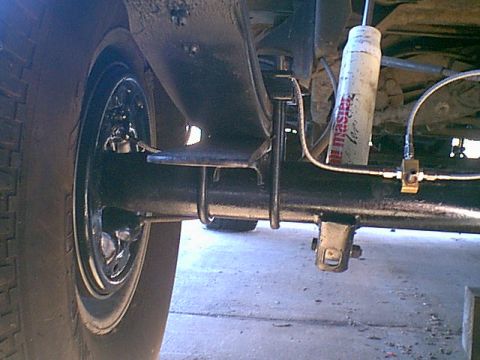

here is another view of the drivers side.
driver side brake.jpg
472 hits | 43.19 KB | Posted: 10/30/06

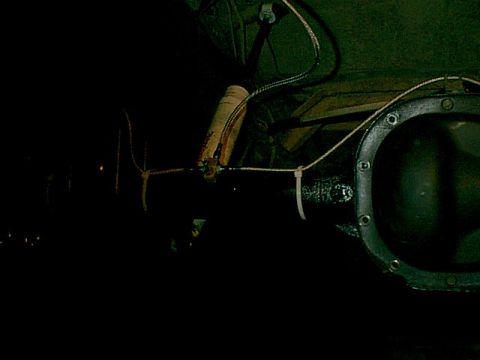

Here is the brake lines all completed. the pedal feels so much better.
435 hits | 103.46 KB | Posted: 10/30/06

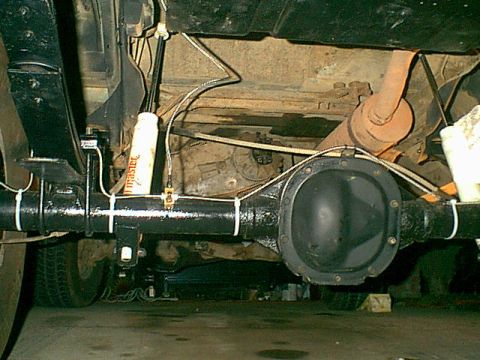

This turned out real good and was an easy upgrade.
rear line2.jpg
438 hits | 79.31 KB | Posted: 10/30/06

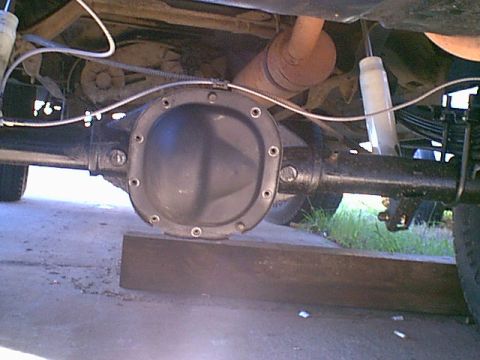

Here is the rear brake line going over the top of the center housing.
465 hits | 93.29 KB | Posted: 10/30/06

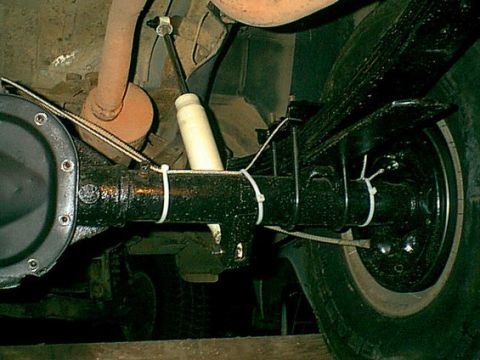

here is the line to the pass side wheel.
456 hits | 69.45 KB | Posted: 10/30/06

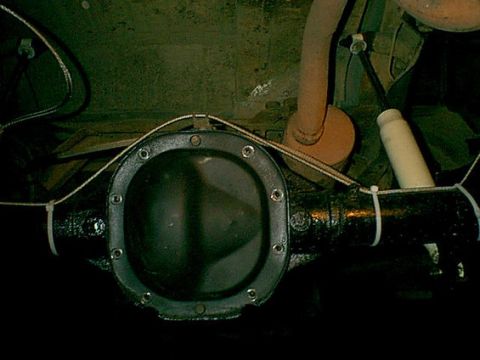

I was going to add new tabs to hold the lines but now there is going to be an axle swap somewhere so...
