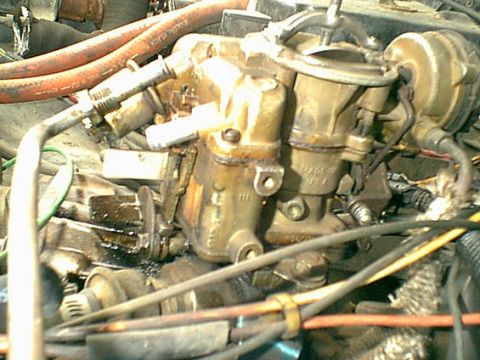

Here is the carburetor as i started. it was leaking and i was not even sure it was the correct one. ...

726 hits | 99.31 KB | Posted: 10/31/06

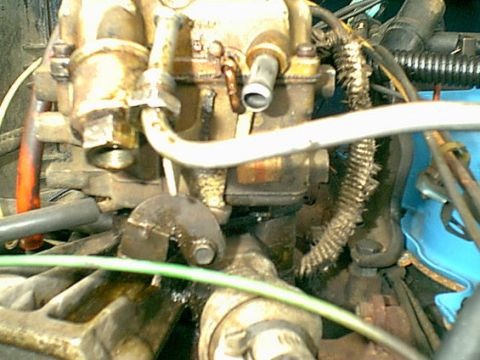

Here is a view from the front. you can see all spots leak on this thing.

652 hits | 98.49 KB | Posted: 10/31/06

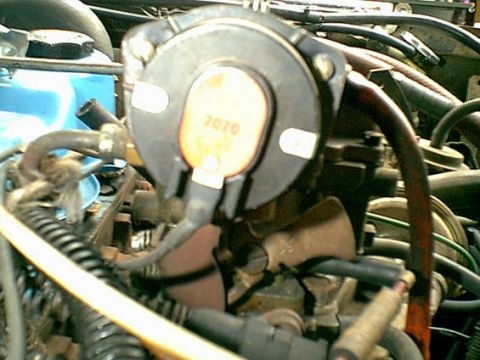

here is the electric choke. it was connected to a dead power wire.

621 hits | 126.26 KB | Posted: 10/31/06

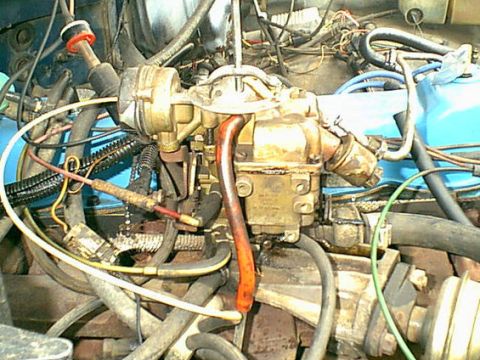

here is the pass side of the carburetor.

655 hits | 63.59 KB | Posted: 10/31/06

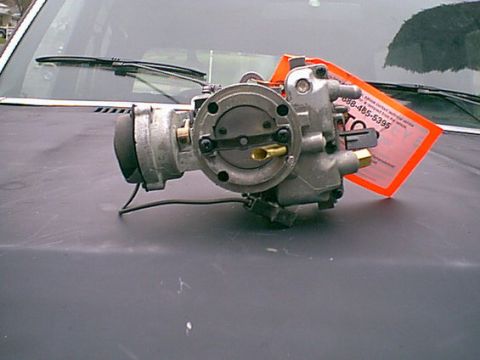

Here is the new (rebuilt) carburetor.

601 hits | 60.04 KB | Posted: 10/31/06

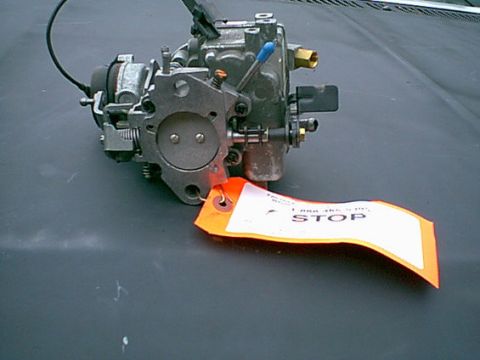

Here is the bottom view.

590 hits | 63.72 KB | Posted: 10/31/06

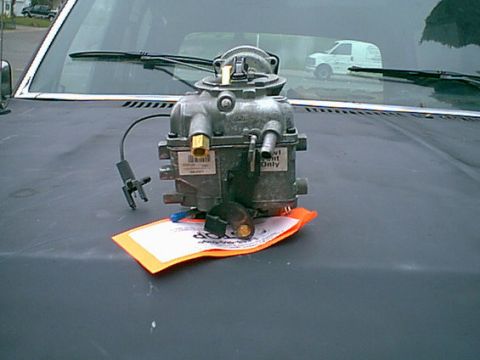

This is the front view.

594 hits | 61.71 KB | Posted: 10/31/06

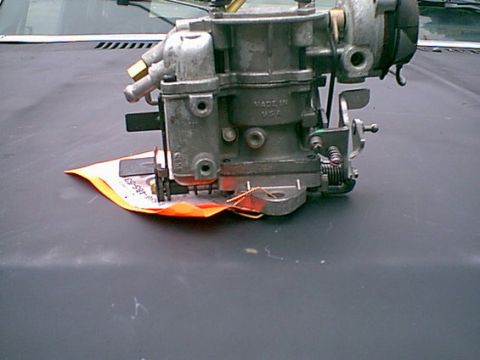

Here is the driver side view.

938 hits | 58.24 KB | Posted: 10/31/06

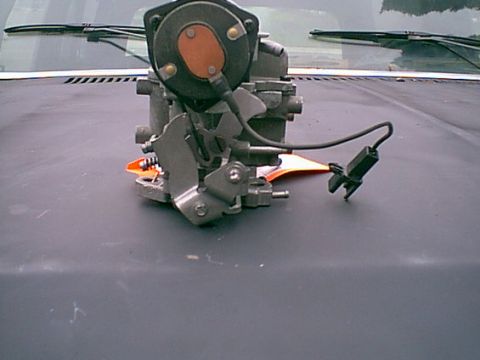

here is the back or electric choke side view.

887 hits | 66.53 KB | Posted: 10/31/06

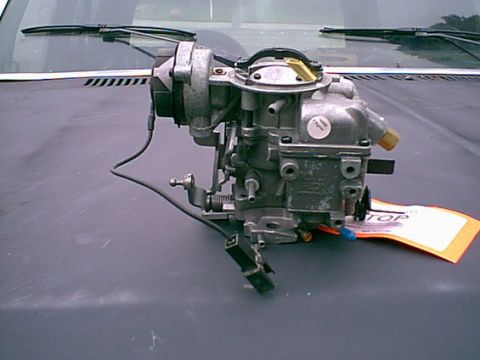

Here is the pass side view.

665 hits | 129.37 KB | Posted: 10/31/06

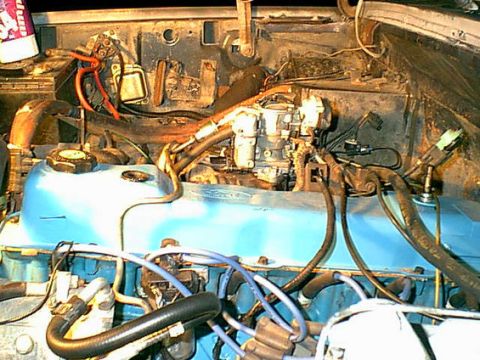

her it is installed and seen from the drivrs side.

596 hits | 126.01 KB | Posted: 10/31/06

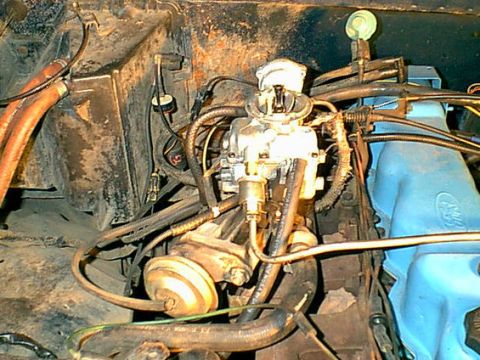

Here it is installed as seen from the front.

631 hits | 126.74 KB | Posted: 10/31/06

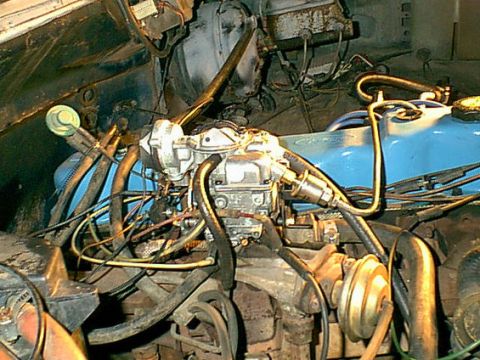

here it is installed as seen from the pass side
