DSC00058.JPG 723 hits | 65.73 KB | Posted: 1/16/07 This is the stoce fuel tank and guage harness. The donor had 2 fuel tanks. i going to remove the not...
DSC00061.JPG 479 hits | 56.3 KB | Posted: 1/16/07 this is the fuel tank connection and the rear anti lock brake sendsor (VSS)
DSC00062.JPG 454 hits | 61.62 KB | Posted: 1/16/07 this is the front part of the harness. the main plug, anti lock valve plug, wiper,
DSC00063.JPG 500 hits | 58.32 KB | Posted: 1/16/07 this is the anti lock brake valve plug. (not needed)
DSC00064.JPG 503 hits | 52.03 KB | Posted: 1/16/07 this is the firewall plug and anti lock plug
DSC00068.JPG 472 hits | 47.41 KB | Posted: 1/16/07 here is the rear anti lock sensor or tone ring counter.

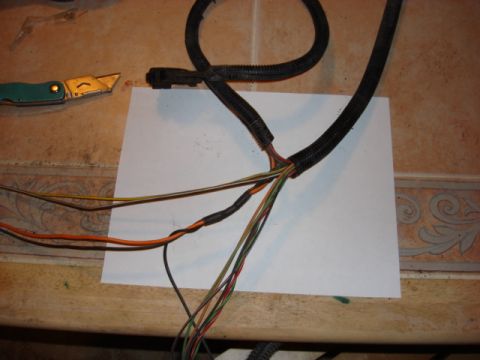

DSC00069.JPG 583 hits | 48.03 KB | Posted: 1/16/07 This is the fuel ground tap.

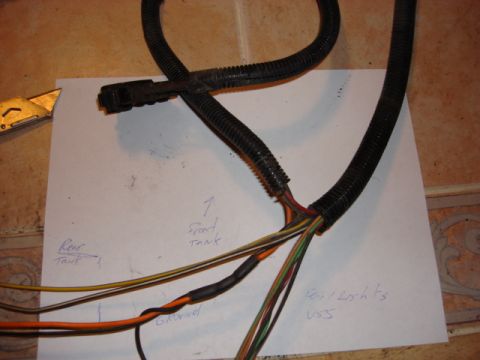

DSC00070.JPG 495 hits | 46.77 KB | Posted: 1/16/07 this is the different plugs labled

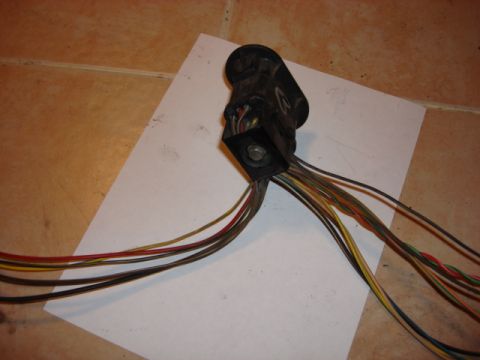

DSC00071.JPG 504 hits | 43.37 KB | Posted: 1/16/07 the fire wall plug

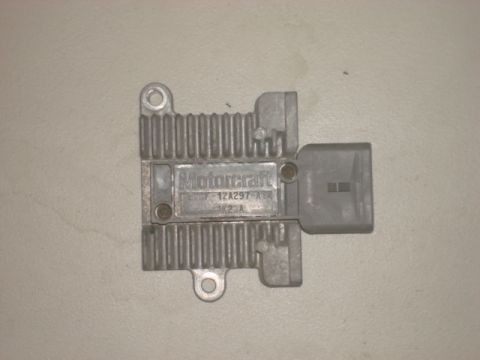

DSC00083.JPG 664 hits | 34.18 KB | Posted: 1/16/07 i was missing the TFI remote connector and module. I got this at the local junk yard.

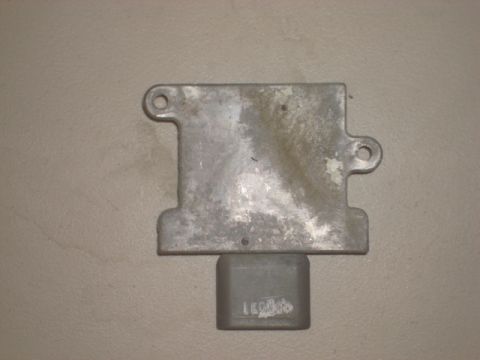

DSC00084.JPG 480 hits | 35.25 KB | Posted: 1/16/07 here is the back of the module. it screws to the drivers side fender

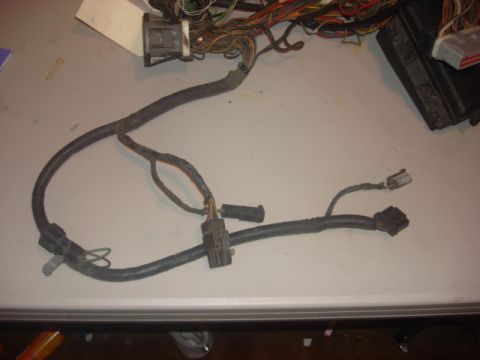

engine harness.JPG 514 hits | 37.3 KB | Posted: 2/2/07 this is the wiper/ cruse control end of the motor harness.

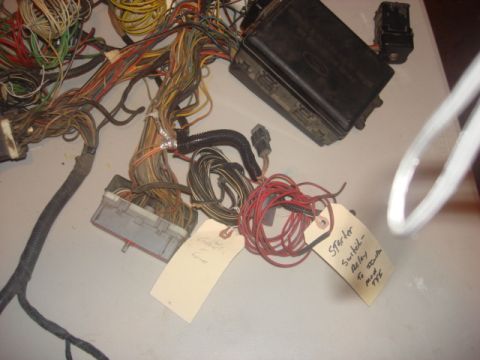

engine harness 2.JPG 475 hits | 54.71 KB | Posted: 2/2/07 here is the harness all split out. lots of fun tracking wires.

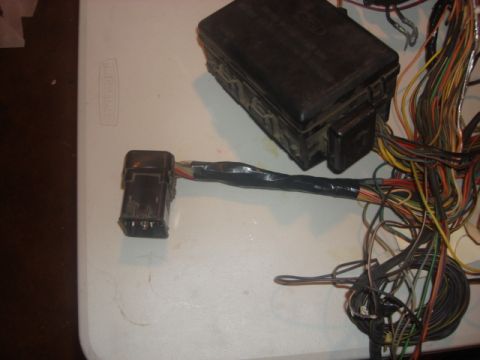

engine harness 3.JPG 610 hits | 44.54 KB | Posted: 2/2/07 this end goes to the motor and all its sensors. i not pulled anything from it so i wrapped it backup...

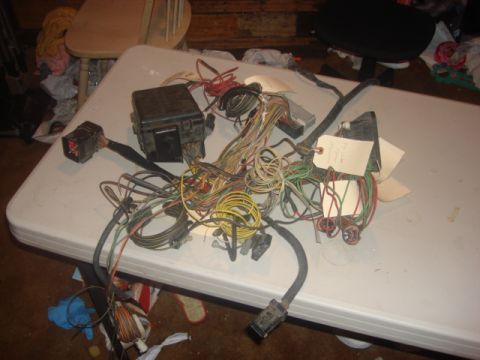

engine harness4.JPG 745 hits | 54.39 KB | Posted: 2/2/07 here is another view of all the mess.

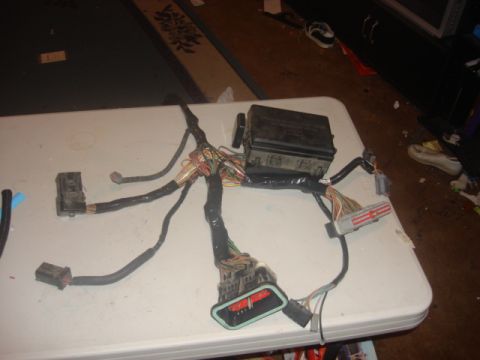

engine harness 5.JPG 509 hits | 40.39 KB | Posted: 2/2/07 Here is the under the hood or motor harness ready to be installed. I still going to get the sprial c...

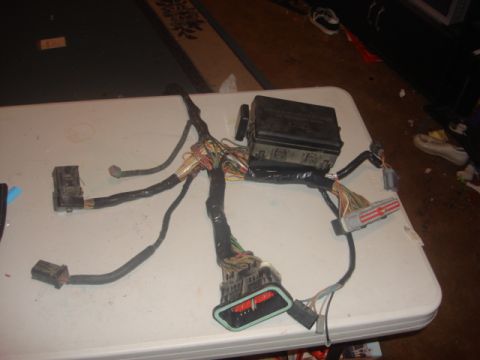

engine harness6.JPG 687 hits | 39.8 KB | Posted: 2/2/07 this is much cleaner and ready to be installed.

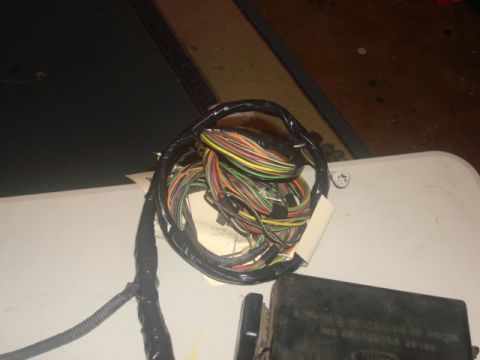

engine harness7.JPG 537 hits | 38.72 KB | Posted: 2/2/07 this wires goto the front of the engine compartment.

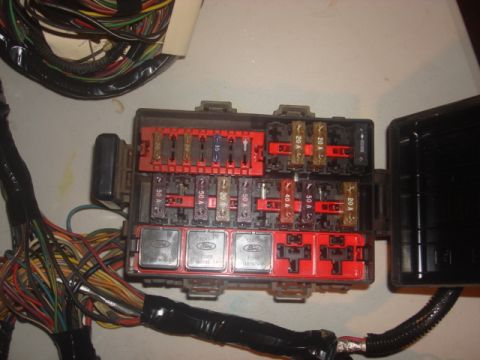

extra fuserelaybox.JPG 652 hits | 57.95 KB | Posted: 2/2/07 i am going to use the stock ford relay/aux fuse box.

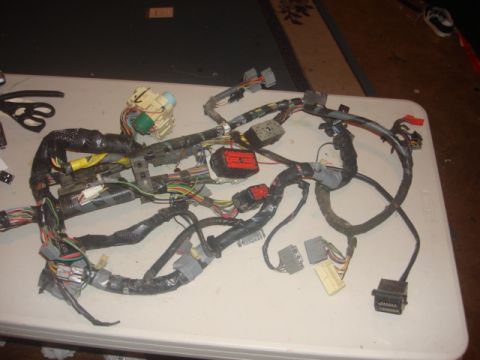

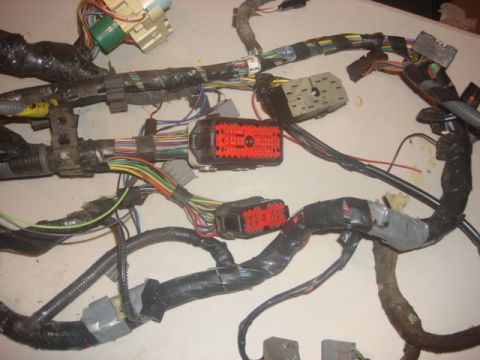

underthedashharness3.JPG 523 hits | 61.57 KB | Posted: 2/2/07 This is the plug side of the wiring

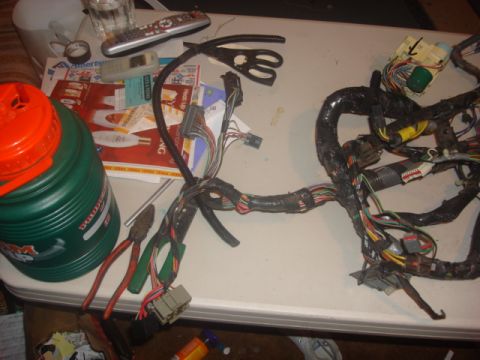

underthedashharness2.JPG 479 hits | 61.72 KB | Posted: 2/2/07 this side is the heater and radio and center cluster wiring. most not going to be used.

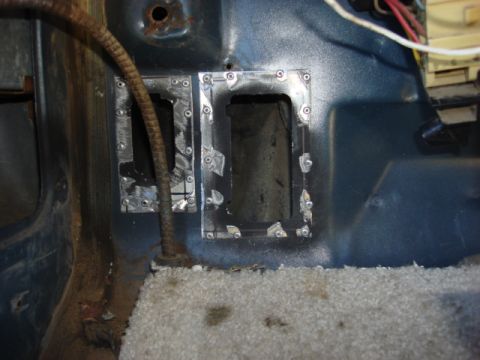

wireharness.JPG 516 hits | 54.4 KB | Posted: 3/12/07 i had these plug holes on one plate but i could not get it to fit anyway, so i made 2 panels and riv...

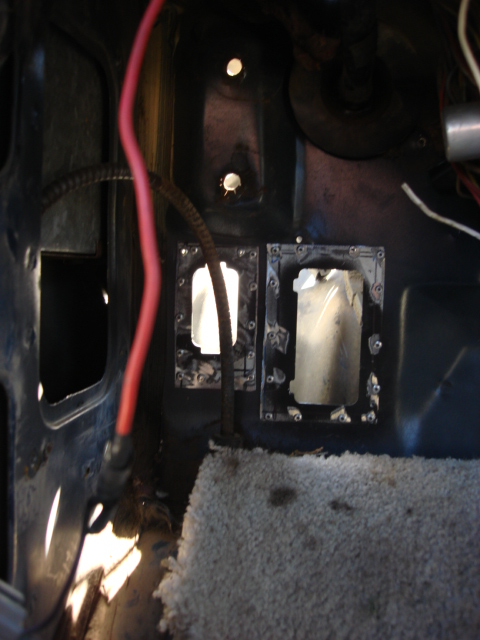

computer6.JPG 613 hits | 44.46 KB | Posted: 3/12/07 you can see right thru to the engine compartment.

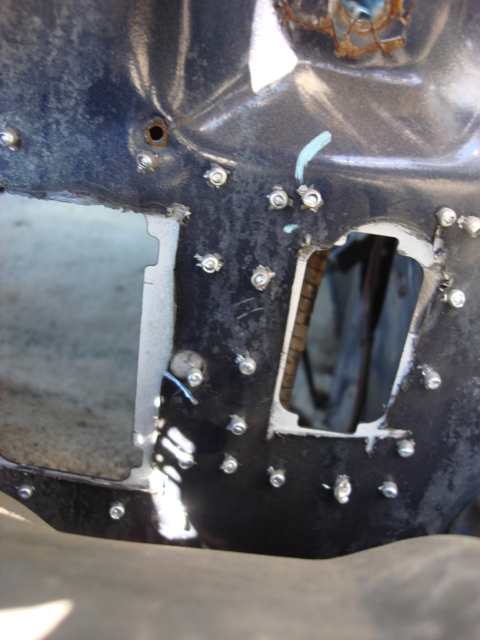

computer5.JPG 609 hits | 52.42 KB | Posted: 3/12/07 this is the motor side of the conversion. I going to flatten the rivets i then paint the area and i...

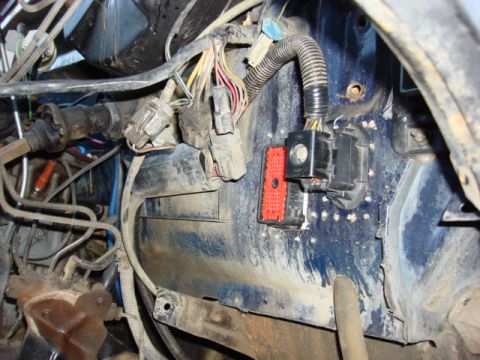

computer harness.JPG 551 hits | 83.4 KB | Posted: 10/12/07 this is the fuel tank wiring harness. it is now connected to the under dash harness.

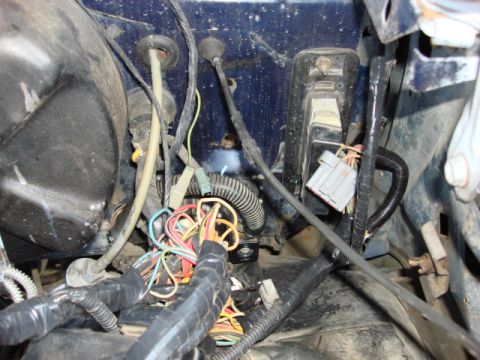

computer harness02.JPG 483 hits | 81.12 KB | Posted: 10/12/07 i routed it along the same path and the stock wire harness.

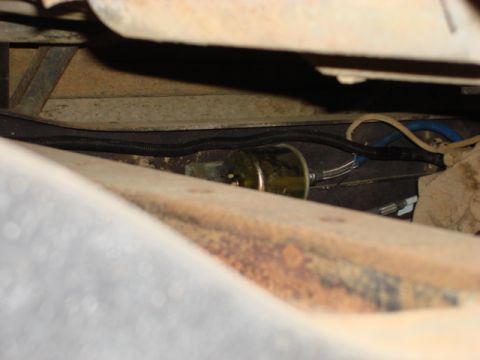

fuel filter.JPG 501 hits | 38.06 KB | Posted: 10/12/07 i got the stock efi fuel filter instaled in the stock location

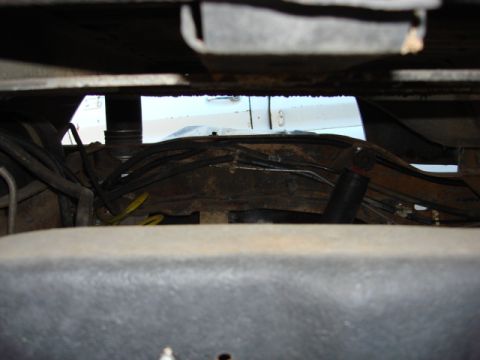

fuel lines.JPG 510 hits | 39.74 KB | Posted: 10/12/07 you can see the fuel pressure and return line and the wire harness for the tank

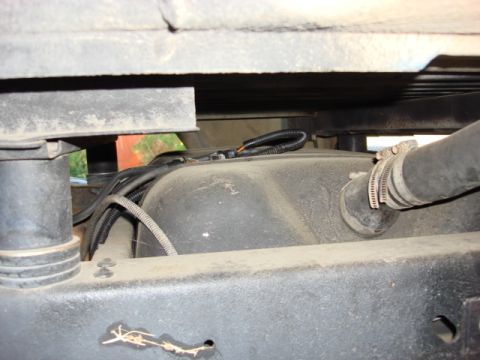

fuel tank harness.JPG 559 hits | 55.16 KB | Posted: 10/12/07 here it is connected o the fuel tank
computer harness02.JPG 514 hits | 81.12 KB | Posted: 10/12/07 now the computer and the other connector are connected

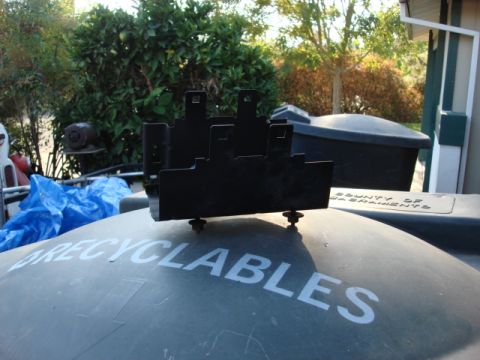

aux fuse panel mount.JPG 526 hits | 64.83 KB | Posted: 10/12/07 i going to use the stock 1992 aux relay/fuse panel box. here is the stock mount

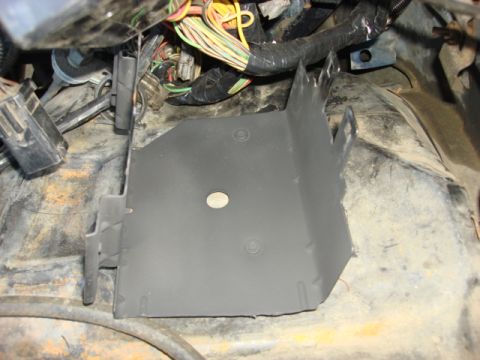

aux fuse panel mount02.JPG 520 hits | 59.66 KB | Posted: 10/12/07 here is is bolted to the fender. i had to drill 3 holes and then nut it from the bottom.

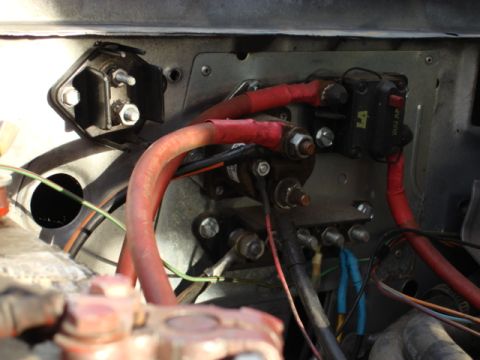

Power take off.JPG 511 hits | 55.66 KB | Posted: 10/12/07 i did not want alot of different connectors for an ignition hot power. i used this power take off fr...

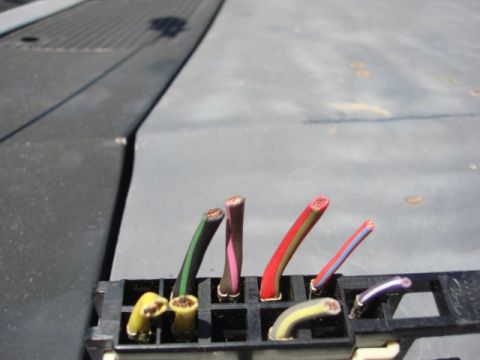

mid ignition switch.JPG 492 hits | 40.21 KB | Posted: 6/10/08 Here is the mid ignition switch on the column. this is the stock wiring switch and plug.

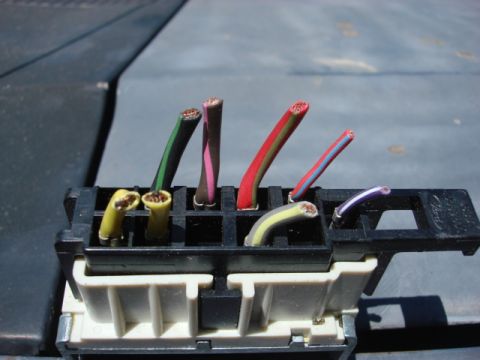

mid ignition switch 2.JPG 459 hits | 47.71 KB | Posted: 6/10/08 a closer view of the switch and wire colors. this switch is the acc/ignition and off switch.

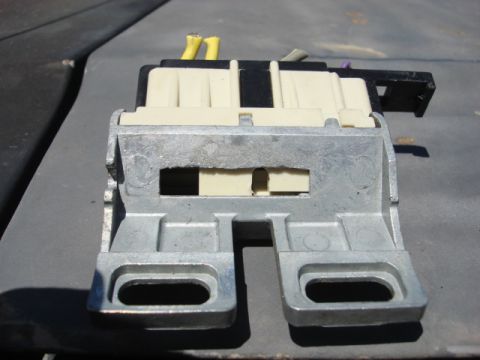

mid ignition switch 3.JPG 476 hits | 45.51 KB | Posted: 6/10/08 this is the whole switch for a 1992 early mid column switch.

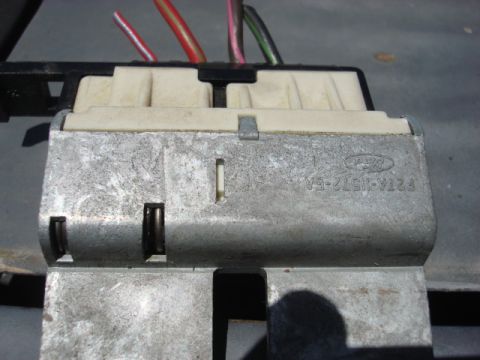

mid ignition switch 4.JPG 515 hits | 53.91 KB | Posted: 6/10/08 this is to see the part number on the switch. i will not be using it.

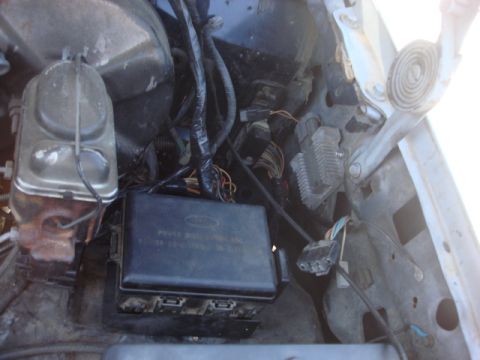

fuse panel.JPG 512 hits | 49.81 KB | Posted: 6/10/08 i found the under the hood panel box was wrongly installed so i corrected it.
Wiring Harness conversion
