525 hits | 52.21 KB | Posted: 3/9/07

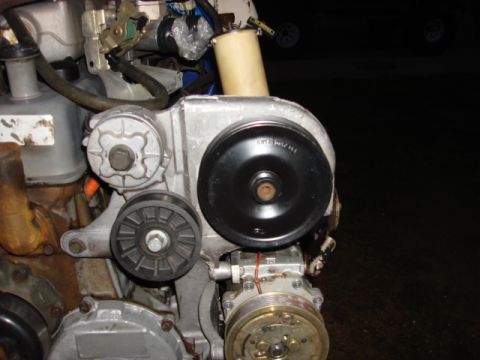

this is the stock p/s pump
551 hits | 46.27 KB | Posted: 3/9/07

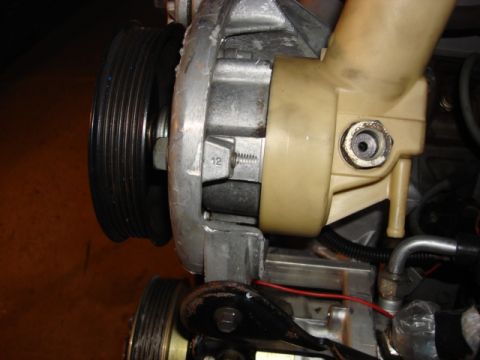

here is the side shot of the stock pump.
sagnaw swap.JPG
632 hits | 59.68 KB | Posted: 3/12/07

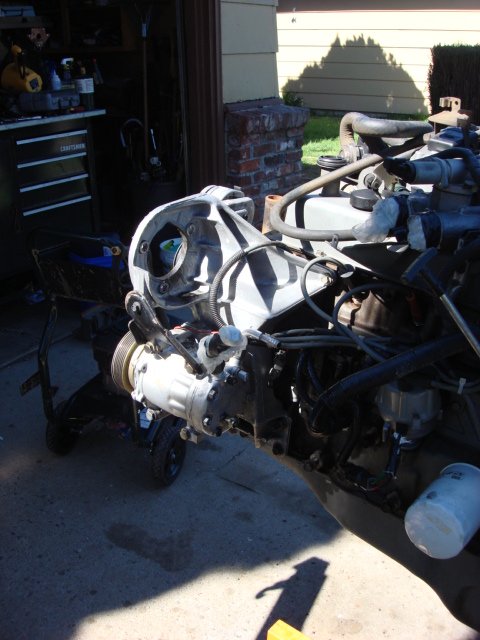

after removing the pulley and the 3 bolts the P/S pump came right off.
sagnaw swap2.JPG
556 hits | 74.68 KB | Posted: 3/12/07

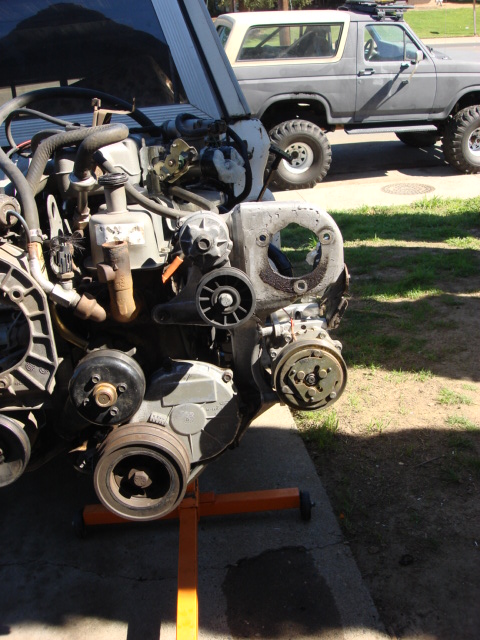

here is the front of the bracket withthe P/s removed. it looks like i have to get a different bracke...
632 hits | 57.14 KB | Posted: 3/16/07

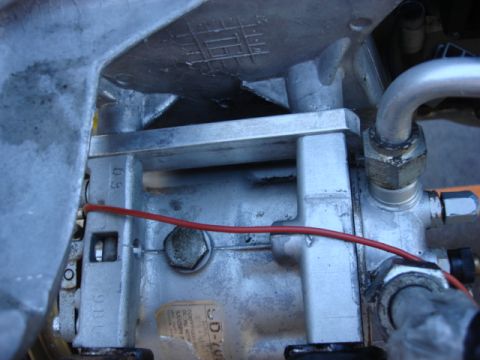

as i was removing the AC compressor from the old mount i found they used a couple spacers. i found o...
596 hits | 50.57 KB | Posted: 3/16/07

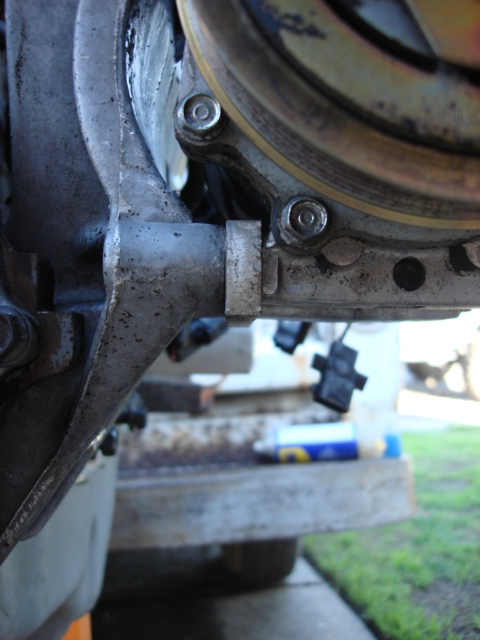

here is the bottom spacer.
587 hits | 64.43 KB | Posted: 3/16/07

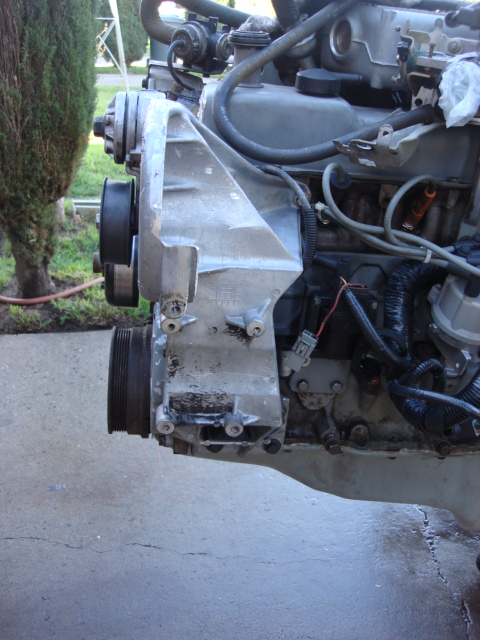

here is the old mount there is 2 bolts on the top and two bolts and two nuts on the bottom
630 hits | 70.37 KB | Posted: 3/16/07

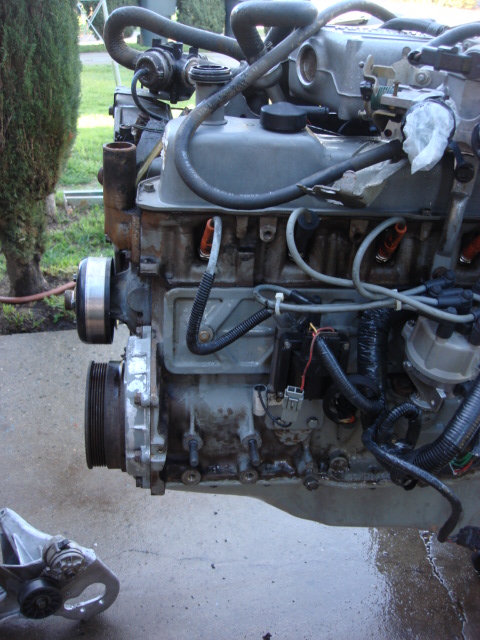

here is the motor with the bracket removed. i need to clean the motor some more..
549 hits | 78.81 KB | Posted: 3/16/07

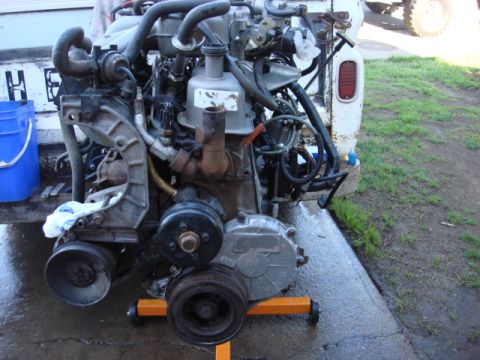

Here is the front of the motor no bracket.

645 hits | 64.58 KB | Posted: 3/16/07

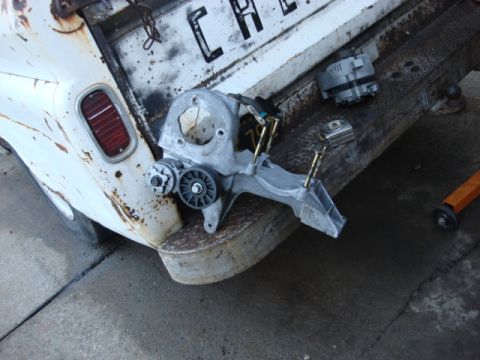

here is the old mount off of the motor.
579 hits | 59.82 KB | Posted: 3/16/07

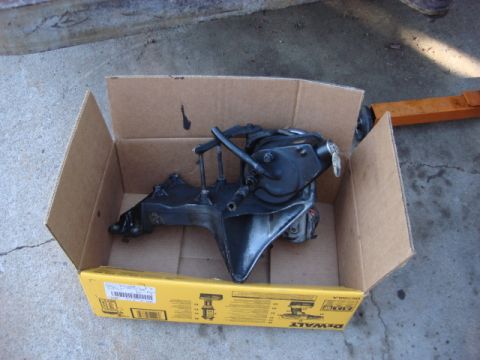

well i went to 6 different junk yards and found only one van with a 4.9 the rest had V-8s. i got the...
624 hits | 55.52 KB | Posted: 3/16/07

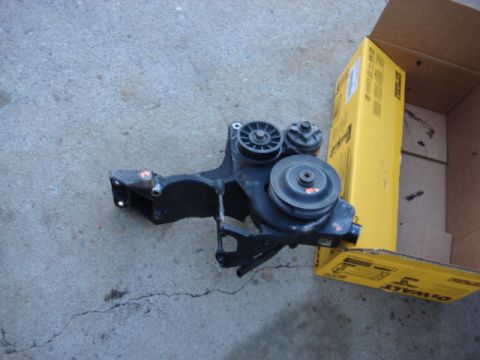

here is the new pump it is an oilly mess right now.
623 hits | 59.61 KB | Posted: 3/16/07

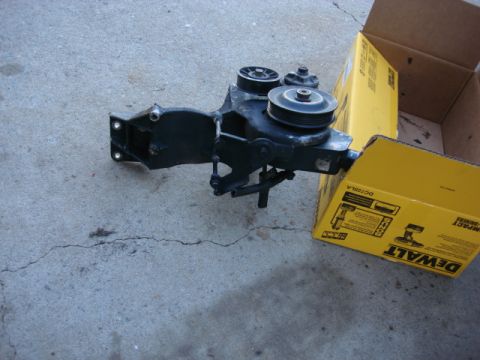

here is the other side of the new pump.
597 hits | 78.81 KB | Posted: 3/16/07

i washed the motor down again and here is a shot before the new mbrackets goes on.
629 hits | 73.19 KB | Posted: 3/16/07

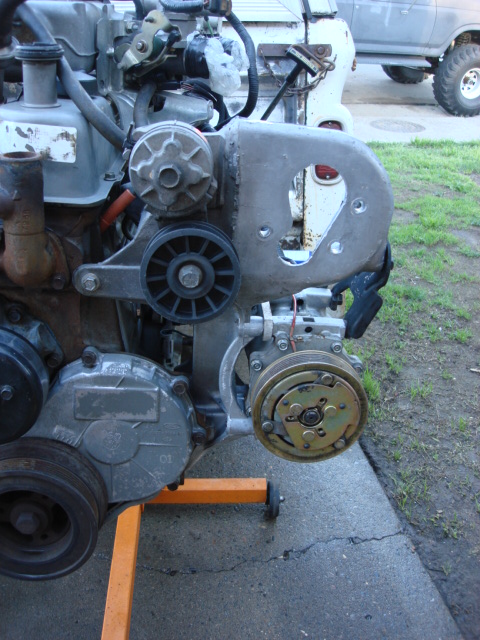

the new mount is in place and the old AC compressor and spacers are installed.
539 hits | 67.42 KB | Posted: 3/16/07

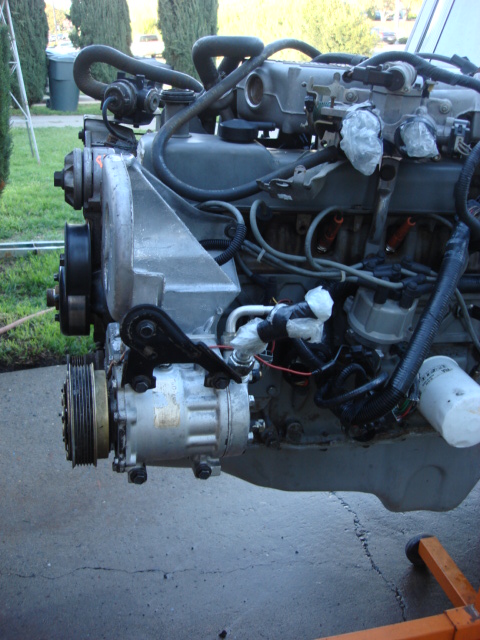

here is a side view of the new mount and AC compressor installed.
577 hits | 70.48 KB | Posted: 3/16/07

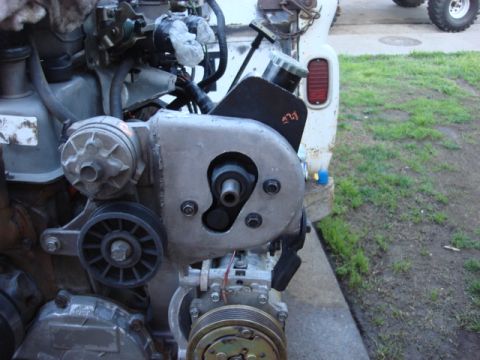

here is the new P/S pump in place. this stuff cleaned up real good.
530 hits | 60.58 KB | Posted: 3/16/07

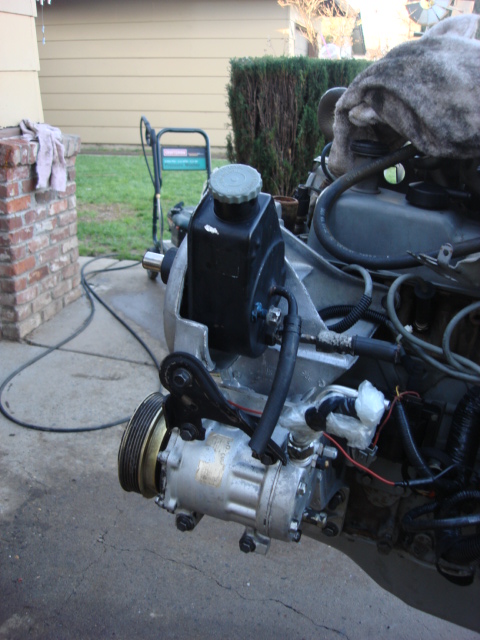

a side view of the new pump installed.
677 hits | 72.85 KB | Posted: 3/16/07

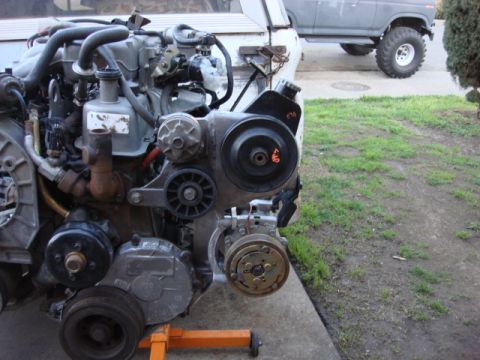

i then installed the serp belt pulley.
710 hits | 72.86 KB | Posted: 3/16/07

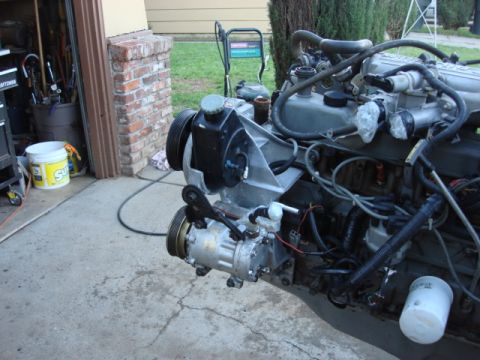

I then removed the old hose ends and all that is needed is a new pressure hose for E150 van and a n...
motor ready.JPG
645 hits | 75.16 KB | Posted: 3/20/07

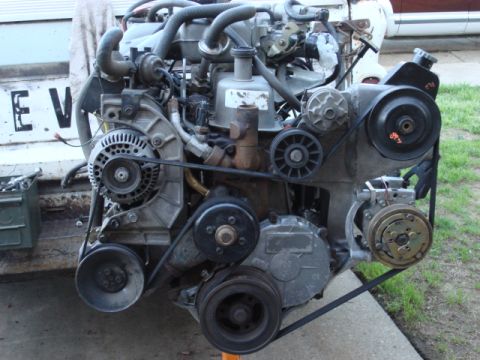

the motor is now ready to go in the bronco. the 3G is the smaller one for now. the P/S pump swap is ...
signaw swap.JPG
557 hits | 44.46 KB | Posted: 7/3/07

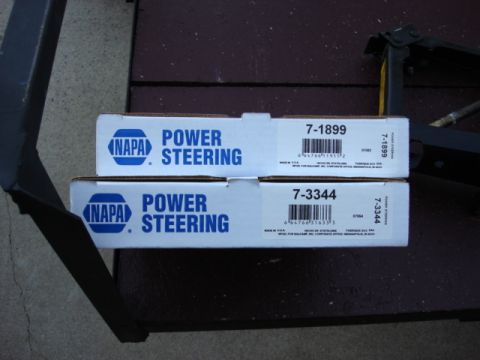

ok next step i went to NAPA and got the return line Part number 7-1899 and the pressure line (from a...
signaw swap2.JPG
497 hits | 51.99 KB | Posted: 7/3/07

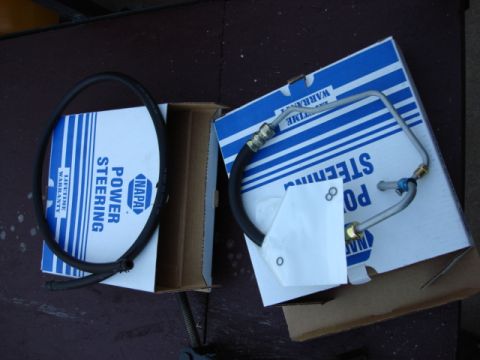

Here are the parts out of the box and ready to go on Jezebel
