gas tank.JPG
669 hits | 59.5 KB | Posted: 5/16/07

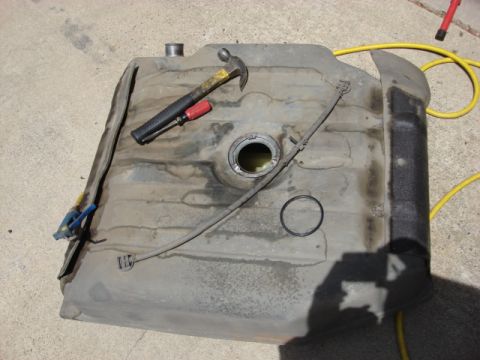

well i had to swap out the fuel tank pump. you have to disconnect the fuel fill tube and the skid pl...

fuel pump6.JPG
475 hits | 52.34 KB | Posted: 5/16/07

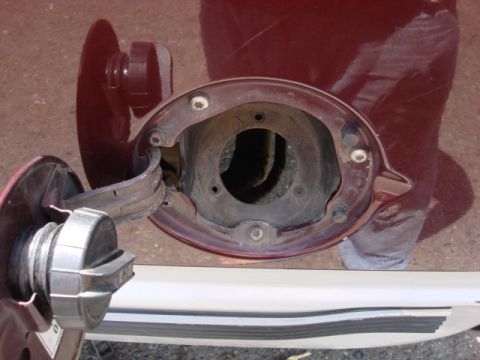

make sure you remove the filler neck 8mm bolts. this allows the tank to drop some so it will come ou...

fuel pump2.JPG
439 hits | 66.78 KB | Posted: 5/16/07

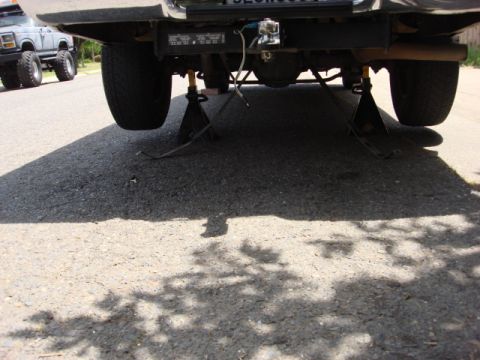

on jack stands i had the tank out. here are the fuel tank straps.

fuel pump3.JPG
431 hits | 56.3 KB | Posted: 5/16/07

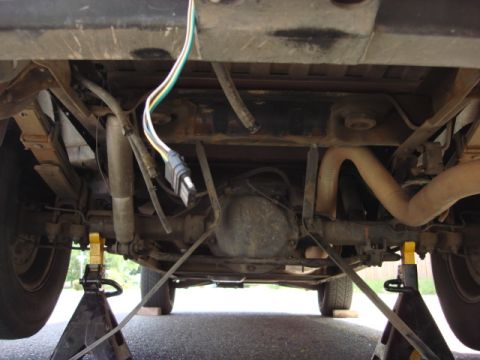

here is a view of the spot where the tank fits. it is a tight spot.

fuel pump4.JPG
485 hits | 45.88 KB | Posted: 5/16/07

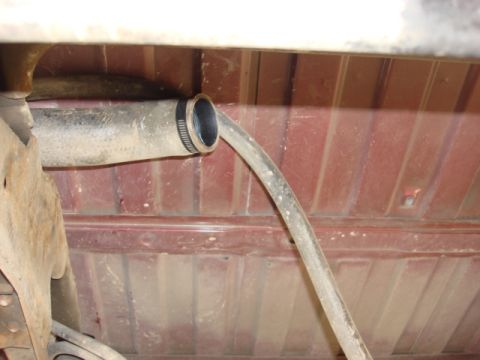

This is the filler neck and filler vent line.

fuel pump5.JPG
496 hits | 49.95 KB | Posted: 5/16/07

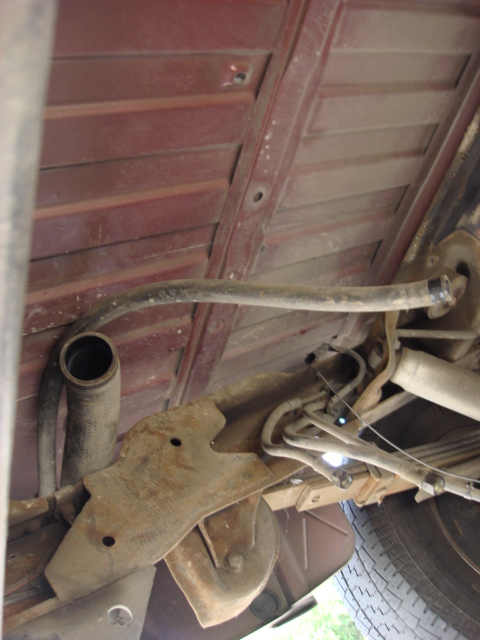

Here is a shot of the fuel main line, return and evap line and the pump electrical and fuel level po...

fuel pump.JPG
519 hits | 40.39 KB | Posted: 5/16/07

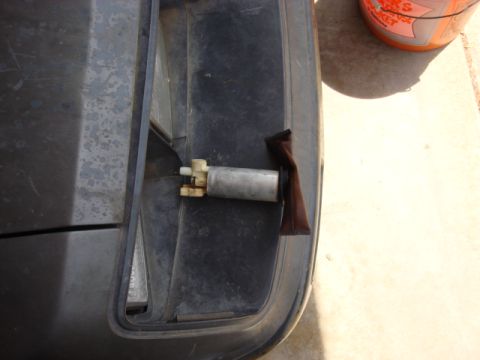

Here is the old fuel pump and screen

fuel pump old.JPG
445 hits | 49.41 KB | Posted: 5/19/08

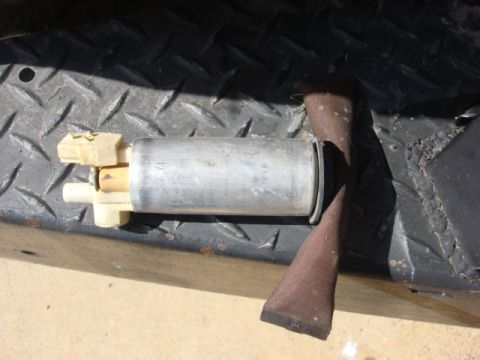

here is another view of the old pump

fuel pump7.JPG
456 hits | 55.93 KB | Posted: 5/16/07

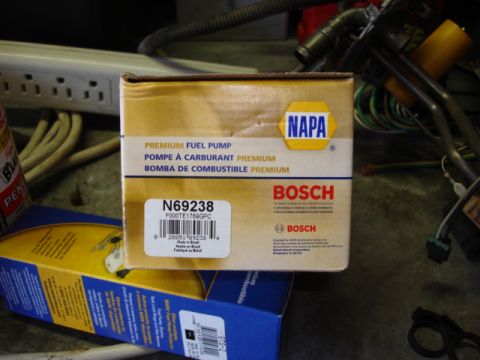

Here is the new fuel pump-i went with a bosh 26 PSI/ 12 GPH from NAPA. Part number N69238. it had mo...

fuel pump8.JPG
450 hits | 49.4 KB | Posted: 5/16/07

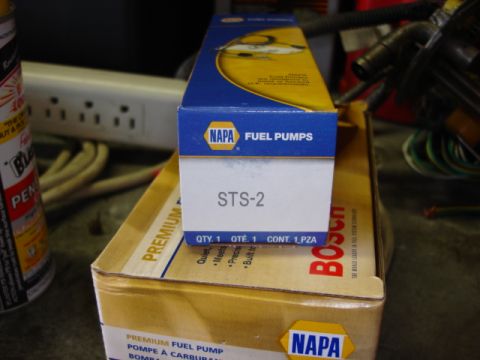

This is the pump screen. it is sold seprate from the pump NAPA STS-2

fuel pump.JPG
404 hits | 48.25 KB | Posted: 5/29/08

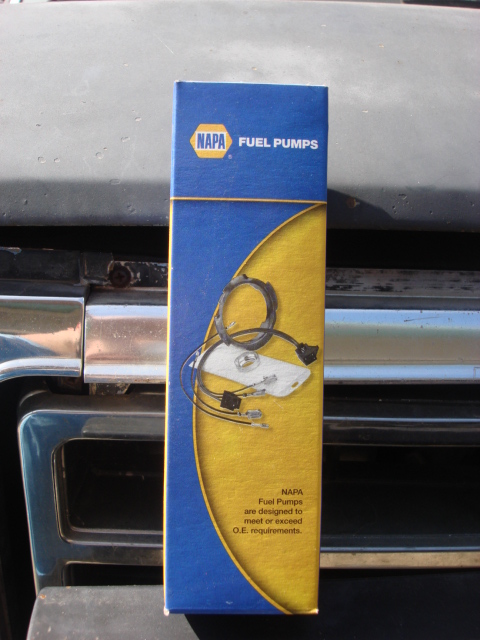

Here is a view from the front of the box

Fuel Pump02.JPG
440 hits | 49.25 KB | Posted: 5/29/08

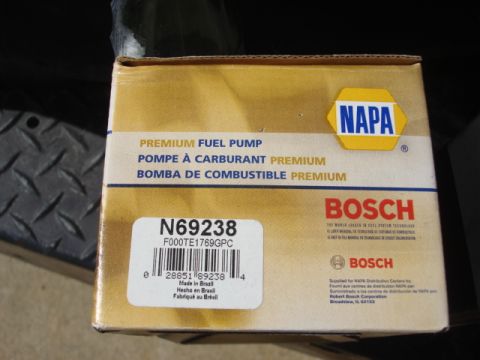

a closer shot of the fuel pump box

Fuel Pump03.JPG
444 hits | 48.19 KB | Posted: 5/29/08

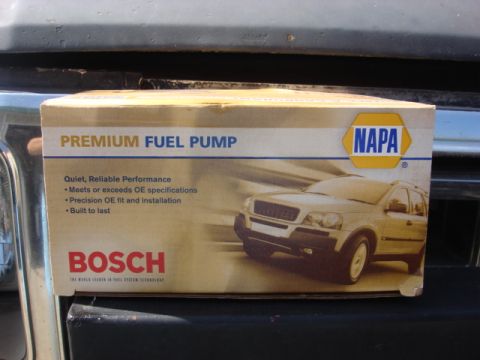

last view of the box

gas tank 2.JPG
469 hits | 71.89 KB | Posted: 5/16/07

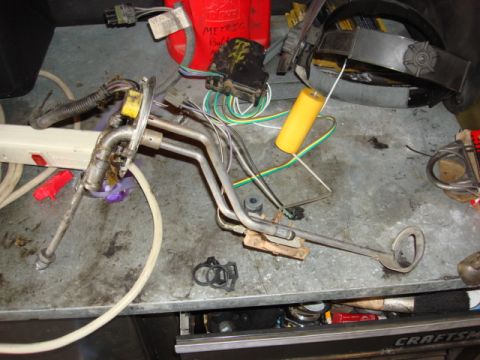

the old pump was out in a few seconds.

fuel pump9.JPG
620 hits | 67.01 KB | Posted: 5/16/07

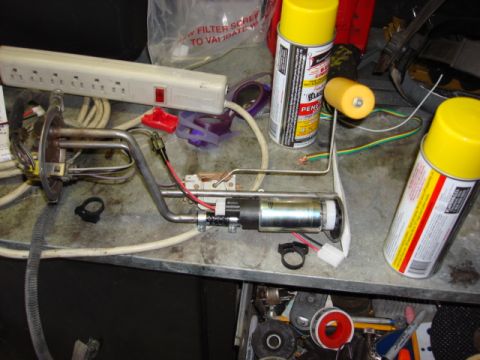

i had to use the specail jumper wire and the pump went right in. what a difference. it starts right ...
