front belt.JPG
1854 hits | 43.49 KB | Posted: 1/3/08
well i was getting a bad chipmonk sound from under the hood. each time i started Brutis iit sound li...

1682 hits | 41.73 KB | Posted: 1/3/08
here is a second view of the pulleys. they came stock as plastic but you can get metal HP replacemen...

1087 hits | 34.8 KB | Posted: 1/3/08
here are both replacements from NAPA
38001 and 38006. i had to wait one day for to get one from ano...

2395 hits | 32.04 KB | Posted: 1/3/08
here is the front of the idler pulley this was normal thread and came out without issue

1346 hits | 34 KB | Posted: 1/3/08
here is the back side- the same size and better bearing and metal.

1666 hits | 30.71 KB | Posted: 1/3/08
here is how it goes back together. the o-ring holds this all together.

1182 hits | 51.23 KB | Posted: 1/3/08
i put a small dab on the threads do if i ever need to remove it again i could.

1379 hits | 40.63 KB | Posted: 1/3/08
here is the tesioner pulley front old and new

903 hits | 40.26 KB | Posted: 1/3/08

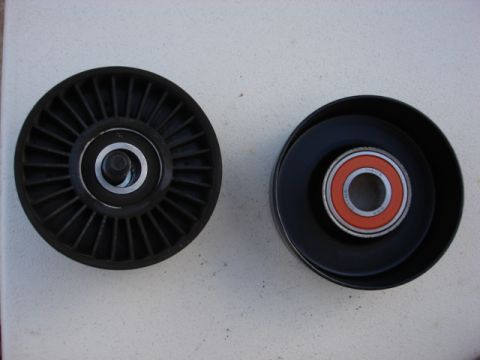

here is the back side

1251 hits | 39.08 KB | Posted: 1/3/08

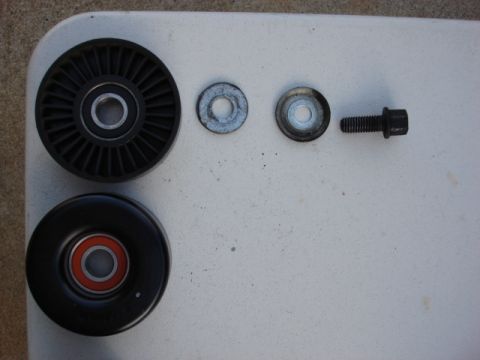

here is how the parts go together

1017 hits | 39.68 KB | Posted: 1/3/08

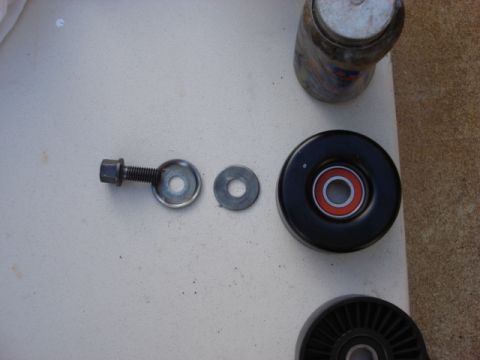

here are the parts all cleaned up. i used a dab of antisize here too.
******this is a reverse thre...

1224 hits | 39.93 KB | Posted: 1/3/08

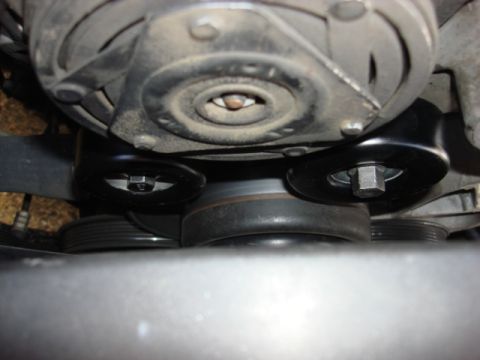

Here are the pulleys installed. if you were only doing these reinstall the serp belt and be on your ...
