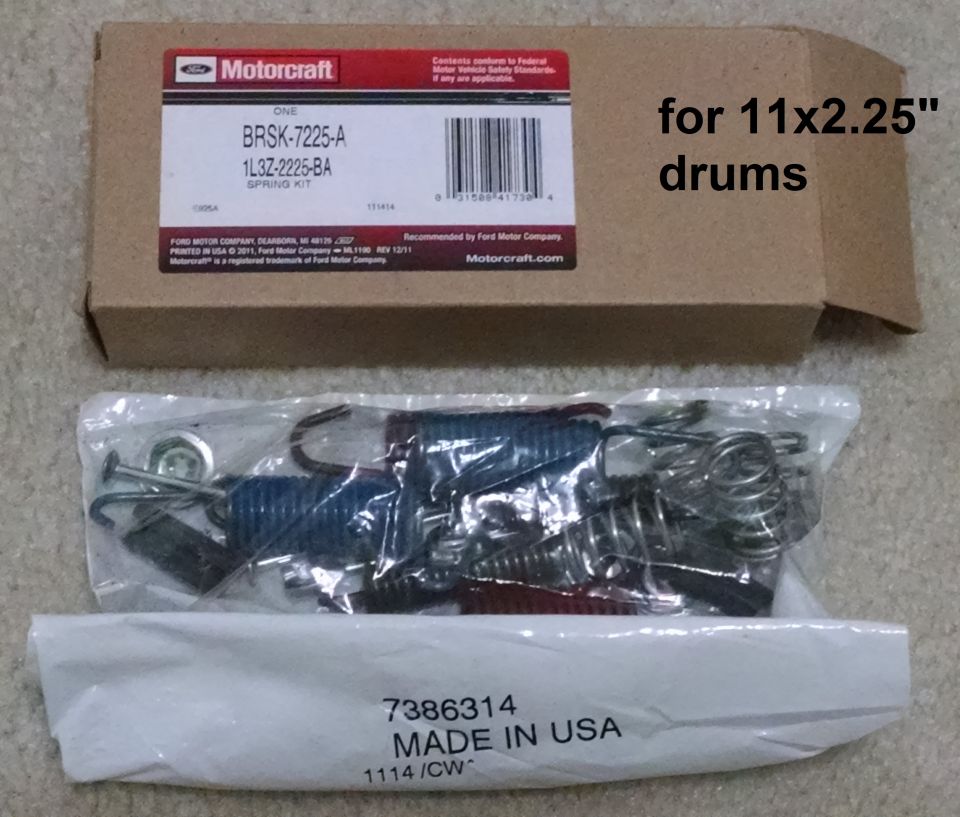

Brake Spring Kit (BRSK-7225-A) for all '80-96 F150s & Broncos

Contains:
2 - primary shoe retractor spring (red) - part of 2035 (2296)
2 - secondary shoe retractor spring (brown) - part of 2035 (2296)
2 - autoadjuster pawl spring (blue) - 2049 (2269)
4 - shoe retainer spring (silver) - 2068
4 - shoe retainer pin - 2069
4 - shoe retainer cup - 2066
2 - autoadjuster access plug (rubber) - 2092
2 - park lever washer - 351467-S (XX352)
2 - park lever U-ring - 2106
2 - spreader bar spring (red) - 2A601
2 - access plug - 2092



NOT INCLUDED:
2 - spreader bar washer - 2A787 (no longer available)
2 - spreader bar - 2A642 (no longer available)
2 - shoe top pin guide - 2028 (no longer available)
4 - wheel cylinder pushrod - 2042 (possibly Wagner Wagner H1421))
2 - park lever (L&R) - 2A637 (no longer available)
2 - wheel cylinder w/dust boots (L&R) - 2206 (Left BRWC6 & Right BRWC7)
L - autoadjuster kit (sleeve, screw, washer, cap, pawl, cable, guide, access plug) - BRAK2544A
R - autoadjuster kit (sleeve, screw, washer, cap, pawl, cable, guide, access plug) - BRAK2545A
1 - shoe set (2 primary & 2 secondary) - 2200 Motorcraft-BR96B
2 - drum - YL3Z-1V126-D Motorcraft BRD49
