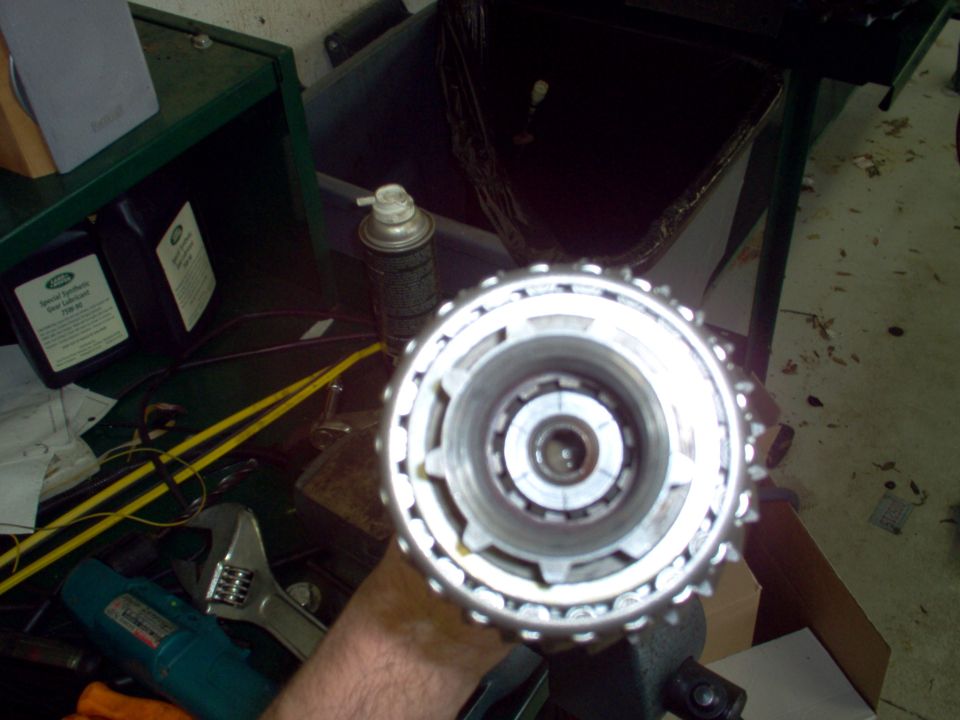

worn1.jpg Note that the marks at 12:00 & 6:00 line up perfectly with the edges of the splines. This is with the gear in backlash on the shaft.
worn1.jpg | Hits: 310 | Posted on: 9/23/04 | View original size (583.25 KB)

Note that the marks at 12:00 & 6:00 line up perfectly with the edges of the splines. This is with the gear in backlash on the shaft.
