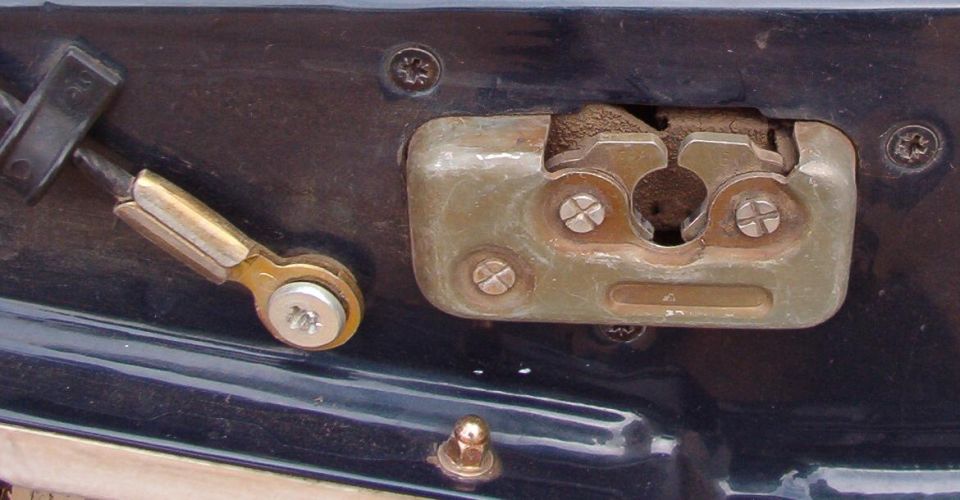

latch-closed.jpg To operate the motor with the tailgate open, simply close the driver's latch.  Be SURE to open it before you attempt to close the tailgate or you'll damage the plastic sleeve on the strike bolt.

On '78~85, BOTH latches must be closed because the interlock switch is mounted to the center mechanism.

[url=http://www.supermotors.net/registry/media/160901][img]http://www.supermotors.net/getfile/160901/thumbnail/mechanism-all.jpg[/img][/url]
latch-closed.jpg | Hits: 10224 | Posted on: 11/28/04 | View original size (97.67 KB)

To operate the motor with the tailgate open, simply close the driver's latch. Be SURE to open it before you attempt to close the tailgate or you'll damage the plastic sleeve on the strike bolt.

On '78~85, BOTH latches must be closed because the interlock switch is mounted to the center mechanism.
