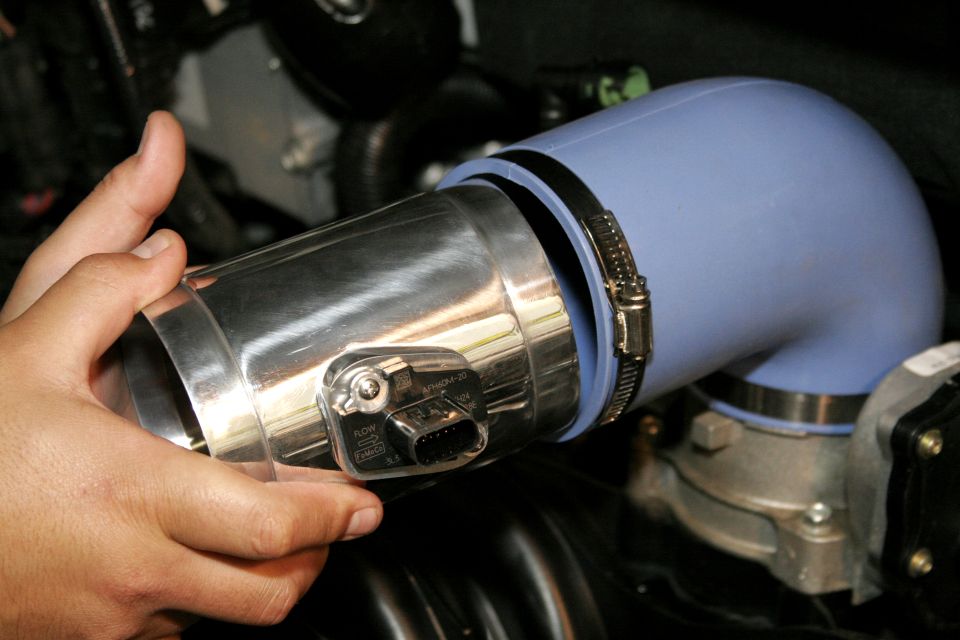

mac18.jpg Mount the new MAF housing with sensor installed into the elbow fitting on the engine with the flow arrow pointing towards the elbow, at this stage leave all the clamps loose.
mac18.jpg | Hits: 3630 | Posted on: 1/16/07 | View original size (1.7 MB)

Mount the new MAF housing with sensor installed into the elbow fitting on the engine with the flow arrow pointing towards the elbow, at this stage leave all the clamps loose.
