Vent Window Removal
IF THE IMAGE IS TOO SMALL, click it.
The vent window frame is very easy to remove from the door once the door panel is off. Roll the glass all the way down, and remove the 2 phillips screws from the upper front edge of the door frame. (They may be hidden by the upper seal, and on older trucks, they may have 7/32" hex heads.) Remove the 11mm (7/16") bolt from the inner door skin, just rearward of the divider bar and about 6" down from the glass. (Do not remove the 8mm - 5/16" bolt if present.) Pull the rubber glass run down from where the divider meets the top of the door frame & rearward out of the back of the divider and the top of the door. Tilt the vent window frame rearward to remove it from the channel in the door's upper forward edge, and rotate the front of the vent window frame inward 90 degrees. Tilt the frame back and slide it up & out of the door. Work the run out of the divider as it is exposed. Reverse to install.

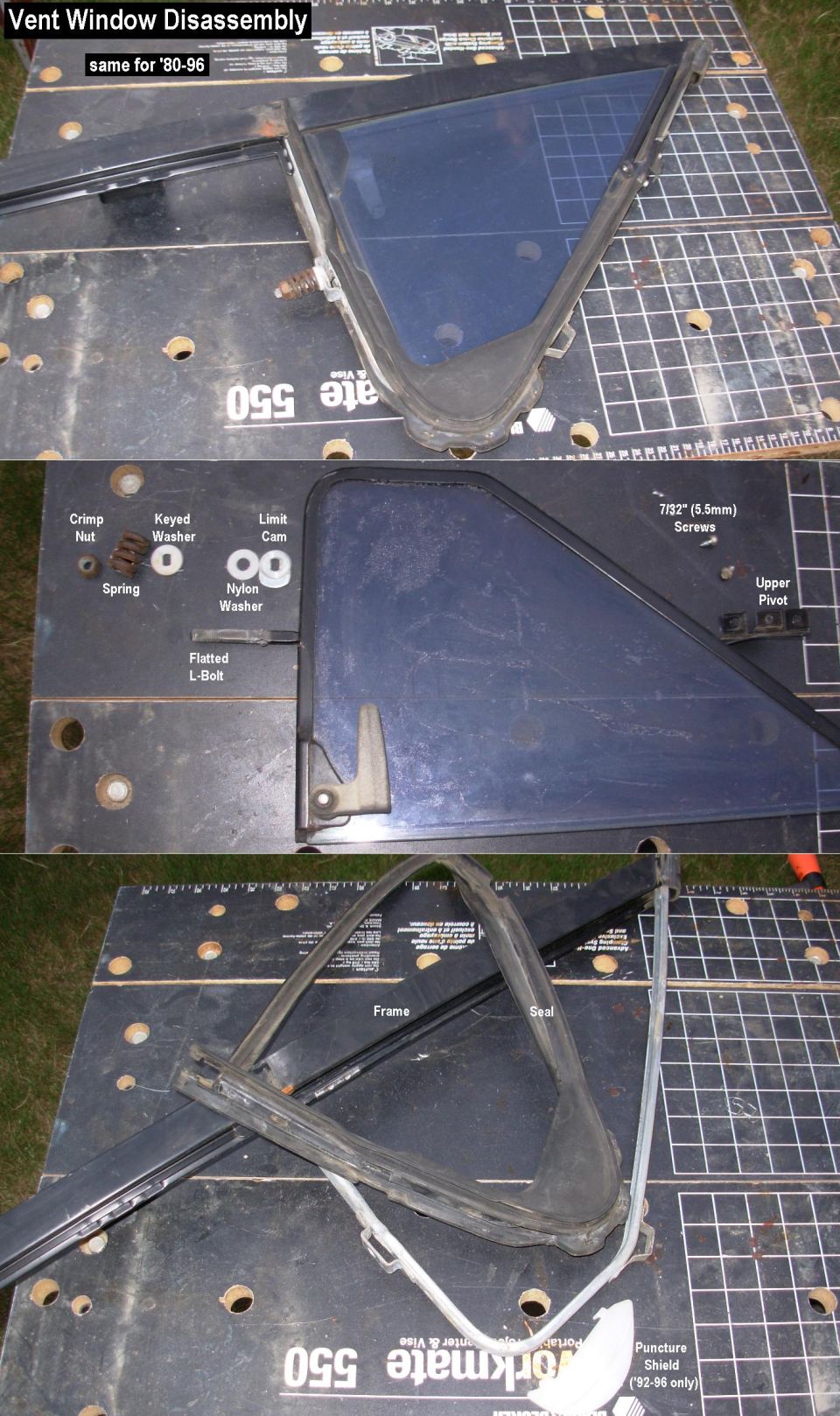

Vent Window Disassembly
With the frame out, unlatch & open the vent window, remove the two 5.5mm (7/32") screws from the upper pivot, and remove the 11mm (7/16") crimped nut from the lower pivot bolt. Slide the spring & indexed washer off, and rotate the upper pivot away from the frame. Gently rap the frame & vent window pivot bolt on a solid surface to drive the bolt & window up out of the frame. Catch the nylon washer & limit cam as the bolt clears the frame. Note their order for reassembly.
Work the ends of the rubber seal out of their notches in the frame, and peel it out of the channel. On '92-96, remove the 4 staples from the front corner, and remove the penetration shield.
Use a steel drift to drive the roll pin out of the latch handle, slide it off its shaft, and collect the button & spring.
Tap the steel frame away from the glass to gently bend it (only at its corners) off the glass. Scrape the mounting tape out of the frame channel.
Drill out the rivets for the L-bolt.
