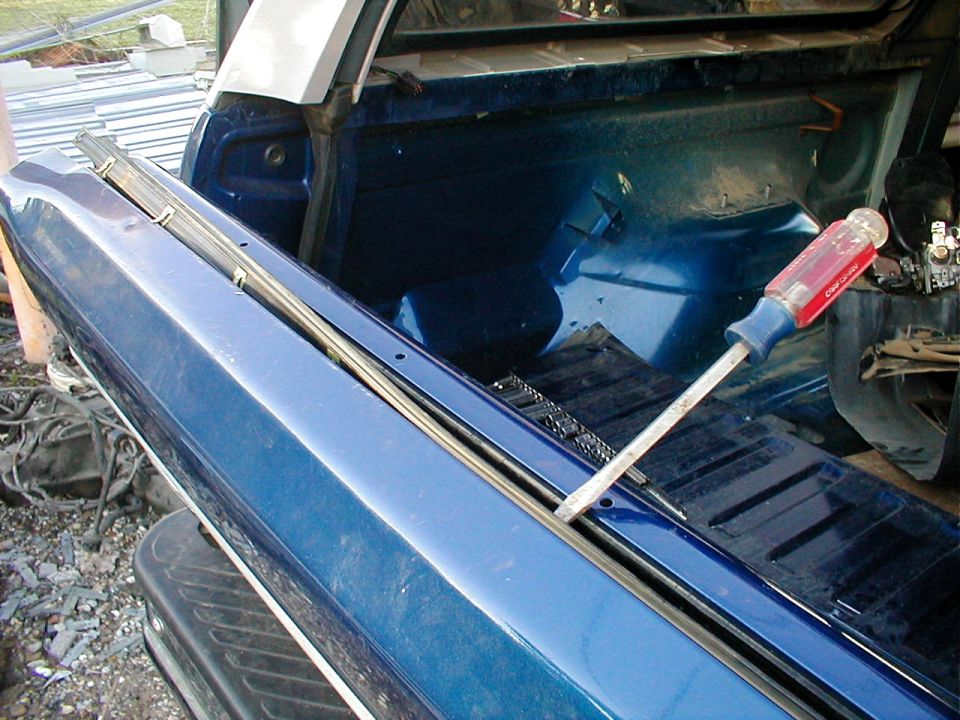

weatherbelt.jpg AFTER removing the screw at each end, use a screwdriver to gently pry the OUTER weatherbelt up just enough to pop the cllps loose.  I've pulled the far end out to show the clips, but it should be left straight until ALL the clips are loose, then lifted out without bending.  The inner seal is removed the same way (it has no screws), but use a rag between the screwdriver and the paint.

The outside weatherbelt is D8TZ-9841610-A (interchange FO1930103) and cost $24 in 1996.  The inner is F6TZ-9842072-AA (interchange FO1930104) and was $27.

2014 prices
Supplier . . . . Inner Belt . . . . . . . . . . . . Outer Belt . . . . . . . . . . . . Camper Run
RockAuto . . . F2028 $18 . . . . . . . . . . . F2027 $18 . . . . . . . . . . . F1019 $43
LMC . . . . . . . 49-9466 $30 . . . . . . . . . 49-9465 $40 . . . . . . . . . . 49-9461 $40 not sure
JBG . . . . . . . . pair 34543 $55 pair of inner & outer . . . . . 36020 $39 NOT CORRECT
weatherbelt.jpg | Hits: 12577 | Posted on: 7/7/03 | View original size (280.41 KB)

AFTER removing the screw at each end, use a screwdriver to gently pry the OUTER weatherbelt up just enough to pop the cllps loose. I've pulled the far end out to show the clips, but it should be left straight until ALL the clips are loose, then lifted out without bending. The inner seal is removed the same way (it has no screws), but use a rag between the screwdriver and the paint.

The outside weatherbelt is D8TZ-9841610-A (interchange FO1930103) and cost $24 in 1996. The inner is F6TZ-9842072-AA (interchange FO1930104) and was $27.

2014 prices
Supplier . . . . Inner Belt . . . . . . . . . . . . Outer Belt . . . . . . . . . . . . Camper Run
RockAuto . . . F2028 $18 . . . . . . . . . . . F2027 $18 . . . . . . . . . . . F1019 $43
LMC . . . . . . . 49-9466 $30 . . . . . . . . . 49-9465 $40 . . . . . . . . . . 49-9461 $40 not sure
JBG . . . . . . . . pair 34543 $55 pair of inner & outer . . . . . 36020 $39 NOT CORRECT
