tsb982010exhaustbuzz.jpg TSB 98-20-10 Exhaust "Buzzing" or "Rattling" - Loose Catalyst or Muffler Heat Shields
Publication Date: SEPTEMBER 29, 1998

FORD:  1993 FESTIVA
1993-94 TEMPO
1993-97 PROBE, THUNDERBIRD
1993-99 CROWN VICTORIA, ESCORT, MUSTANG, TAURUS
1994-97 ASPIRE
1995-99 CONTOUR
LINCOLN-MERCURY:  1993-94 CAPRI, TOPAZ
1993-99 CONTINENTAL, COUGAR, GRAND MARQUIS, SABLE, TOWN CAR, TRACER
1995-99 MYSTIQUE
LIGHT TRUCK:  1993-96 BRONCO
1993-97 F SUPER DUTY, F-350
1993-99 AEROSTAR, ECONOLINE, EXPLORER, F-150, F-250 LD, RANGER
1995-99 WINDSTAR
1997-99 EXPEDITION, MOUNTAINEER, VILLAGER
1998-99 NAVIGATOR
1999 F-250 HD, SUPER DUTY F SERIES

ISSUE: A "buzzing" or "rattling" noise from the exhaust system may be caused by a loose heat shield attachment to the catalytic converter, catalytic pipes, muffler pipes and/or muffler. The noise is noticeable during normal driving conditions or at engine idle.

ACTION: Install worm clamps to secure loose heat shield attachments. Refer to the following Service Procedure for details.

SERVICE PROCEDURE
Inspect for loose shields. If shield(s) is missing, this TSB does not apply. Refer to the appropriate Service or Workshop Manual for repair procedures.
NOTE:  UNDER NO CIRCUMSTANCES SHOULD A HEAT SHIELD BE REMOVED WITHOUT REPLACEMENT BEFORE THE VEHICLE IS RETURNED TO THE CUSTOMER.

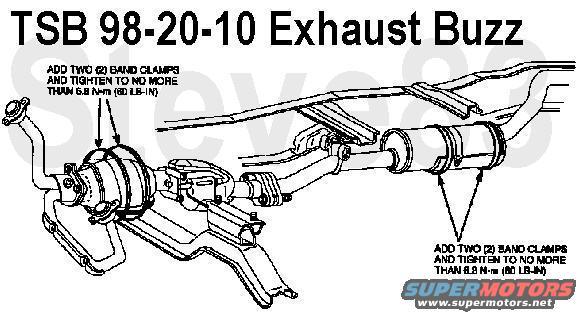

Install worm clamps to the catalytic converter, catalytic pipes, muffler pipes or muffler as shown.
Align the clamps to secure the heat shield to the catalytic converter, catalytic pipes, muffler pipes or muffler as required.
Tighten the clamps to 6.8 N-m (60 lb-in).
Trim the excess "ear" of the clamp to approximately 2.54 cm (1").

PART NUMBER  PART NAME
FOTZ-5A231-A  Worm Clamp (4-1/2" To 9-1/2")
W705949-S300  Worm Clamp (3/4" To 4")

OTHER APPLICABLE ARTICLES: NONE
SUPERSEDES: 98-06-04
WARRANTY STATUS: Eligible Under Basic Warranty Coverage For 1991 And Prior Models, Bumper To Bumper Warranty Coverage For 1992-99 Models, And Any Applicable Emissions Warranty Coverage
OPERATION  DESCRIPTION  TIME
982010A  Install One (1), Two (2), Or Four (4) Worm Clamps  0.3 Hr.

For other TSBs, check [url=http://www.revbase.com/BBBMotor/]here[/url].
tsb982010exhaustbuzz.jpg | Hits: 5994 | Posted on: 4/18/09 | View original size (47.14 KB)

TSB 98-20-10 Exhaust "Buzzing" or "Rattling" - Loose Catalyst or Muffler Heat Shields
Publication Date: SEPTEMBER 29, 1998

FORD: 1993 FESTIVA
1993-94 TEMPO
1993-97 PROBE, THUNDERBIRD
1993-99 CROWN VICTORIA, ESCORT, MUSTANG, TAURUS
1994-97 ASPIRE
1995-99 CONTOUR
LINCOLN-MERCURY: 1993-94 CAPRI, TOPAZ
1993-99 CONTINENTAL, COUGAR, GRAND MARQUIS, SABLE, TOWN CAR, TRACER
1995-99 MYSTIQUE
LIGHT TRUCK: 1993-96 BRONCO
1993-97 F SUPER DUTY, F-350
1993-99 AEROSTAR, ECONOLINE, EXPLORER, F-150, F-250 LD, RANGER
1995-99 WINDSTAR
1997-99 EXPEDITION, MOUNTAINEER, VILLAGER
1998-99 NAVIGATOR
1999 F-250 HD, SUPER DUTY F SERIES

ISSUE: A "buzzing" or "rattling" noise from the exhaust system may be caused by a loose heat shield attachment to the catalytic converter, catalytic pipes, muffler pipes and/or muffler. The noise is noticeable during normal driving conditions or at engine idle.

ACTION: Install worm clamps to secure loose heat shield attachments. Refer to the following Service Procedure for details.

SERVICE PROCEDURE
Inspect for loose shields. If shield(s) is missing, this TSB does not apply. Refer to the appropriate Service or Workshop Manual for repair procedures.
NOTE: UNDER NO CIRCUMSTANCES SHOULD A HEAT SHIELD BE REMOVED WITHOUT REPLACEMENT BEFORE THE VEHICLE IS RETURNED TO THE CUSTOMER.

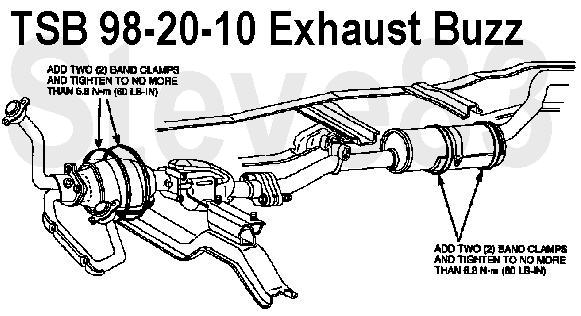

Install worm clamps to the catalytic converter, catalytic pipes, muffler pipes or muffler as shown.
