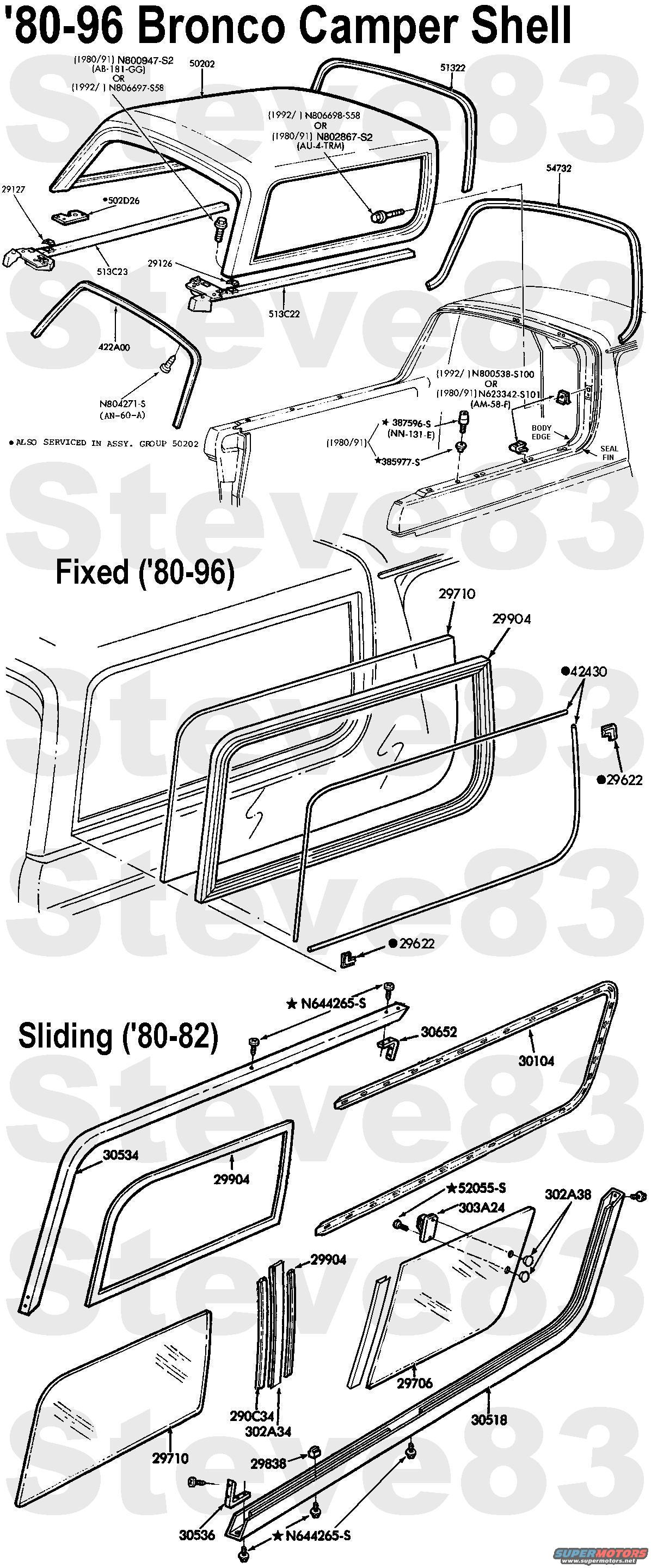

'80-96 Bronco Camper Shell & Sliding Side Windows
IF THE IMAGE IS TOO SMALL, click it.

290C34 - Weatherstrip, division bar rear (EOTZ98290C34A)
29126 - ? Right side
29127 - ? Left side
29622 - Trim Insert Corner (stainless, optional)
29706 - Window, right sliding (EOTZ9829706A), with rear reinforcement
29707 - Window, left sliding (EOTZ9829707A), with rear reinforcement
29710 - Window, right fixed (E4TZ-9829710-F full 1-way; EOTZ-9829710-B full clear; EOTZ9829710D rear half)
29711 - Window, left fixed (E4TZ-9829711-F full 1-way; EOTZ-9829711-B full clear; EOTZ9829711D rear half)
29838 - Stop
29904 - Gasket (F4TZ-9829905-A fixed window with chrome insert, EOTZ-98299045-B sliding window with insert, EOTZ-98299045-F sliding window w/o insert)
29904 - Weatherstrip, division bar front (EOTZ9829904G right, EOTZ9829904H left)
30104 - Run Channel (EOTZ9830104A)
302A34 - Division Bar, right (EOTZ98302A34A)
302A35 - Division Bar, left (EOTZ98302A35A)
302A38 - Nut, nylon cap
303A24 - Latch Assembly
30518 - Frame, right bottom front (EOTZ9830518A)
30519 - Frame, right bottom front (EOTZ9830519A)
30534 - Frame, right top rear (EOTZ9830534A)
30535 - Frame, left top rear (EOTZ9830535A)
30536 - Corner Reinforcement, bottom rear (EOTZ9830536A)
30652 - Corner Reinforcement, top front (EOTZ9830652A)
385977-S - Nutsert M6x1.00 ('78-91 only)
387956-S - Alignment Pin, Allen 4mm (5/32") M6x1.00x15mm ('78-91 only)
422A00 - Window Track Liner (F2TZ-98422A00-A) interchange FO1390131 or APDTY 140398
42430 - Trim Insert Strip (chromed nylon, optional)
50202 - Camper Shell ('80-91 F2TZ9850202A; '92-96 F4TB9850200A??)
502D26 - Reinforcement Plate (EOTZ98502D26A)
51322 - Camper-to-body Seal, front (D8TZ9851322A)
513C22 - Camper-to-body Seal, right side (F4TZ98513C22A)
513C23 - Camper-to-body Seal, left side (F4TZ98513C23A)
52055-S - Screw, Phillips #2 flat head #4x3/16"
54732 - Body Edge Guard (E8TZ9854732A) similar to TrimLok 62B3X1/16-25
N623342-S101 - U-Nut ('78-91 only), M6x1.00 (9 req'd.)
N644265-S - Screw, Phillips #2 cap head #6x1/4" (11 req'd. per side)
N800538-S100 - U-Nut ('92-96 only), M8x1.25 (11 req'd.)
N800947-S2 - Bolt ('78-91 only), 8mm hex head captive fender washer M6x1.00x40mm (8 req'd.)
N802867-S2 - Bolt ('78-91 only), 8mm hex head captive fender washer M6x1.00x70mm (5 req'd.)
N804271-S - Screw, Phillips #2 round head integral washer #6x3/4"
N806697-S58 - Bolt ('92-96 only), TT-40 captive fender washer M8x1.25x30mm (10 req'd.)
N806697-S58 - Bolt('92-96 only), TT-40 captive fender washer M8x1.25x60mm (5 req'd.)

CRLaurence repro (different from original) sliding side windows on Amazon were ~$450 in 2014.
