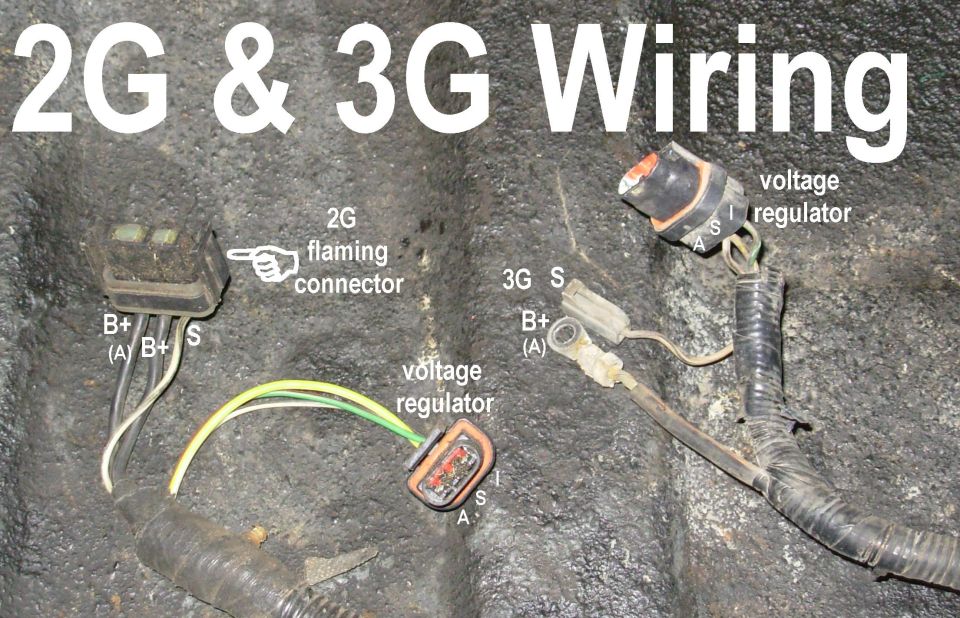

The only differences are that: 1) the 2G uses a [url=http://www.crownvic.net/ubbthreads/ubbthreads.php?ubb=showflat&Number=617089]dangerous 3-pin plug[/url] for the outputs (battery power & stator); the 3G uses a heavy ring for the battery output (like the 1G) and a small blade connector for the stator. And 2) the 3G output wire is heavier (enough for ~160A).

So it's very easy & worthwhile to cut off the dangerous 2G connector, combine the Battery wires on a ring terminal (crimped & soldered), convert the Stator wire to an appropriate terminal, and install a 95A 3G.

[url=https://www.supermotors.net/registry/media/566009][img]https://www.supermotors.net/getfile/566009/thumbnail/alt94tbird.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/843907][img]https://www.supermotors.net/getfile/843907/thumbnail/alternator3gvr.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/907908][img]https://www.supermotors.net/getfile/907908/thumbnail/harness93xltalt.jpg[/img][/url] , [url=https://www.supermotors.net/registry/media/843760][img]https://www.supermotors.net/getfile/843760/thumbnail/alternator2gex.jpg[/img][/url]

Another option is to just pick up a 3G harness from the JY and swap it in with the 3G alternator. That allows the use of a 130A 3G.

[url=https://www.supermotors.net/registry/media/876977][img]https://www.supermotors.net/getfile/876977/thumbnail/3gharness.jpg[/img][/url]

With the matching 3G harness, there's no reason to put in the 95A version - always swap to the 130Amp-output 3G, even if the truck originally had the 95A.

[url=https://www.supermotors.net/registry/media/1079023][img]https://www.supermotors.net/getfile/1079023/thumbnail/3gs.jpg[/img][/url]

But ALWAYS clean the mounting surfaces so the alternator case is well-grounded to the engine.

[url=https://www.supermotors.net/registry/media/825375][img]https://www.supermotors.net/getfile/825375/thumbnail/alternatormountboss.jpg[/img][/url]
