1985 Ford Bronco Booster swap pictures, videos, and sounds

DSCN0833.JPG | Hits: 685 | Size: 100.55 KB | Posted on: 2/5/06 | Link to this image

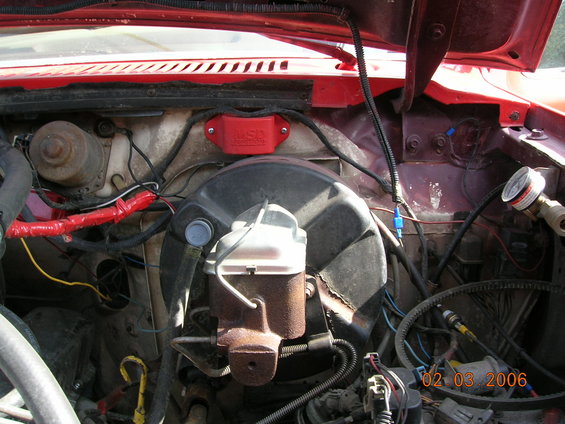

Old booster and master cylinder.

DSCN0834.JPG | Hits: 588 | Size: 85.59 KB | Posted on: 2/5/06 | Link to this image

New one ready to go in.

DSCN0835.JPG | Hits: 583 | Size: 93.34 KB | Posted on: 2/5/06 | Link to this image

Side shot of new booster (f350)

DSCN0836.JPG | Hits: 603 | Size: 99.15 KB | Posted on: 2/5/06 | Link to this image

shot of under dash...where booster passes thru firewall.

DSCN0837.JPG | Hits: 602 | Size: 76.68 KB | Posted on: 2/5/06 | Link to this image

second shot of under dash

DSCN0838.JPG | Hits: 629 | Size: 102.21 KB | Posted on: 2/5/06 | Link to this image

Brake booster removed from bko.

DSCN0839.JPG | Hits: 644 | Size: 112.32 KB | Posted on: 2/5/06 | Link to this image

new booster and m/c installed.
