factory rr bumper removed
|
|
|
hitch and spare tire removed.
|
|
|
rr brackets fabricated and temporary mounted.
|
|
|
rock stomper hinge and latch.
|
|
|
prefitting hinge in rr bumper.
|
|
|
spare tire carrier mocked up and tacked
|
|
|
rt side of carrier with hinge installed.
|
|
|
hi lift mount added and ends trimmed.
|
|
|
side shot from pass side.
|
|
|

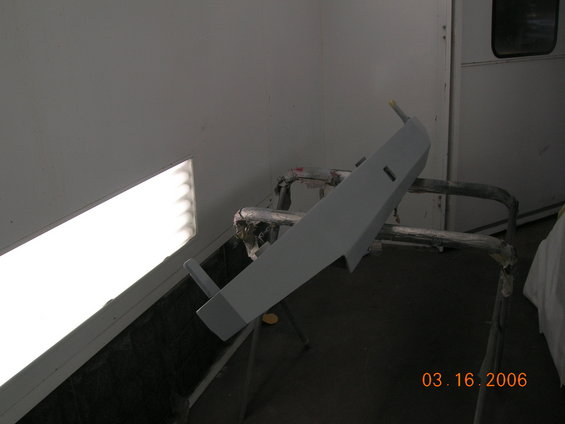

painted and reinstalled on the bko.
|
|
|
shot of hinge mount from underneath.
|
|
|
shot of rack reinstalled on bumper...kidna blurry.
|
|
|
updated pic...new latch set up. I found out while on the trail the body would flex and I coundnt open the old style.
|
|
|
added swing away stop...90 degrees from tail gate
|
rr bumper
