front sheet metal removed to gain easy access
|
|
|
shot of engine bay of 85 (were FI is going in)
|
|
|
85 motor removed to install FI parts
|
|
|
stripping down the 85 motor to transfer FI parts on...also going to replace oil pan gasket with a one piece.
|
|
|
empty engine bay once again.
|
|
|
lower intake cleaned and painted ford blue.
|
|
|
FI timing cover on the left and Carburated on the right...notice the fuel pump cut off plate.
|
|
|
back side of timing covers.
|
|
|
test fitting serpentine belt brackets.
|
|
|
oil pan, intake and valve covers installed...plus misc brackets and water pump.
|
|
|
almost ready to go back in....
|
|
|
side by shot of skid plates...on the left is the 85 and on the right is the 92.
|
|
|
both tanks FI on left and non FI on right
|
|
|

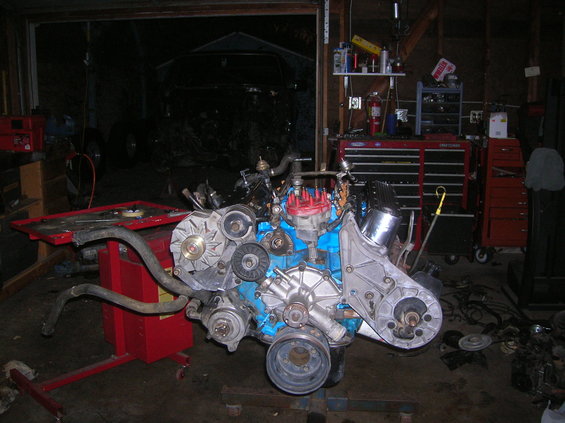

motor ready to go in...front shot showing drive belt rout
|
|
|
airbox/over flow bottle/washer bottle installed...had to fashion brackets to hold the bracket 1inch away from fender
|
|
|
passenger side fender equipment mounted
|
|
|
fuel injectors soaking in cleaner
|
|
|
this is the cleaner I am using.
|
|
|
injectors soaking in cleaner
|
|
|
about done...just misc items plus the wiring
|
|
|
looky looky even the hood clears.
|
|
|
C6 fuel injected kick down cable.
|
|
|
almost done...need to wire in computer
|
|
|
computer location under dash.
|
|
|

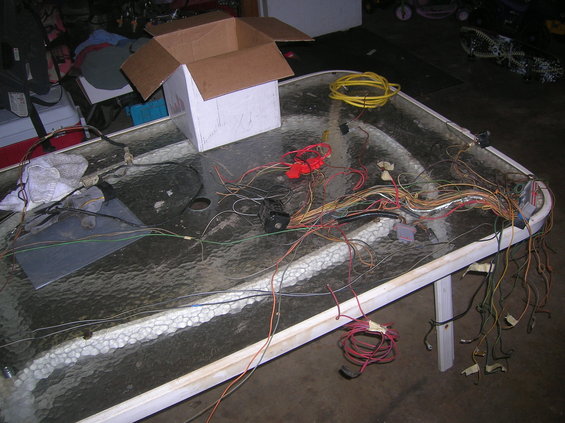

engine wiring stripped of unecessary wires
|
|
|
u joint on front drive shaft.
|
|
|
starting to look like a wiring harness.
|
|
|
second shot TFI location...ya ya I know I am missing a bolt.
|
|
|
another random engine shot.
|
|
|
pride is product...rjm injection tech
|
FI swap
