5 lug spindle on rt 8 lug on left
|
|
|
5 lug brake braket on left 8 lug on right
|
|
|
8 lug rotor on left 5 lug on rt.
|
|
|
pic a part score... 8 lug 16 inch wheels
|
|
|
first coat of eazy off oven cleaner
|
|
|
14 bolt brake drum...friggin huge.
|
|
|
14 bolt drum...this thing weighs a ton.
|
|
|
axle with all drum brake crap off
|
|
|
teardown begun on pass. side
|
|
|
looks like I got a leak....the plug weld is leaking.
|
|
|
all new timken bearings for the front rotors.
|
|
|
moog upper and lower ball joints.
|
|
|
pass side complete torn down.
|
|
|
now there is no front axle
|
|
|
new ball joints pressed in....
|
|
|
inner seals, you can see the one on the left is oblonged, most likely the reason for the oil leaking out of the passenger axle tube.
|
|
|
reamed the front hubs to fit 9/16th wheel studs
|
|
|
one rotor/hub back together.
|
|
|
more parts....spindle bearing kits and inner dif seals.
|
|
|
re-installed the carrier.
|
|
|
fresh coat of rattle can black.
|
|
|
cover and extreme ring back on.
|
|
|
side by side shots of spring plates...
1. 79 D-44 2. 85 9in and 3. iirc D-60 rear
|
|
|
and its back under the truck I used the 9 inch spring plates since they were thicker and bigger then the D44's
|
|
|
more goodies in the mail....ruffstuff 14blt disc brake brackets...Dan makes a killer product these things are beefy.
|
|
|
passenger side knuckle back on.
|
|
|
yay...passenger side assembled.
|
|
|
checking for clearance rr of wheel
|
|
|
drivers side back together
|
|
|
front shot of complete axle
|
|
|
rt front shot, tire on and back on the ground
|
|
|
frt shot tires on and off the jack stands
|
|
|
trimming the bottom of the 14 bolt.
|
|
|
second pic, trimming the bottom off.
|
|
|
yay...rear axle housing installed
|
|
|
outer edges of spring pads welded
|
|
|
new rotors attached to hubs and back on axle.
|
|
|
cleaned and painted the axle.
|
|
|
spring plates and shock mounts welded on.
|
|
|
its 2 piece, heres with the spider gears removed.
|
|
|
set the axle back in so I could measure for the driveshaft...looks like it needs to be shortened about 3 inches.
|
|
|
correct disc brake bracket.
|
|
|
rebuilt the calipers with new seals.
|
|
|
passenger side rr disc assembled with new pads
|
|
|
pulled the front back apart to fix the pass. side brake caliper bracket.
|
|
|
drive shaft reworked with a 1350 u-joint...next to it is the stock size.
|
|
|
comparision of u-joints...1350 on left, stock on right.
|
|
|
went ahead and reinstalled the rear axle while I am waiting on the gears.
|
|
|
painted the pinion support
|
|
|

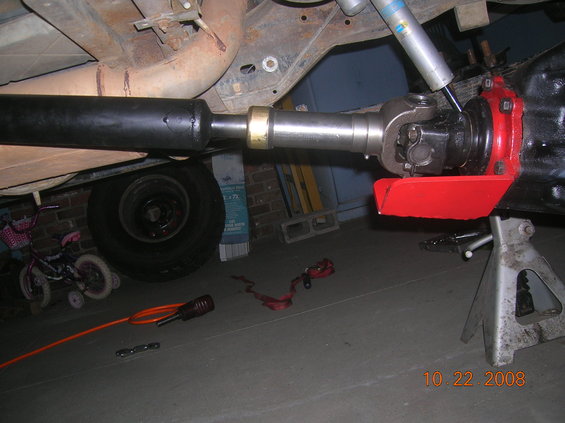

pinion guard, got it ffrom copperhead fab...comes in two pieces, you bend and weld it yourself.
|
|
|
cover back on....and filled with gear oil.
|
|
|
and would you believe it...back on 4 wheels....
|
|
|
kinda dark will get better pics tomorrow.
|
8 lug swap
