10 bolts [13mm] are out

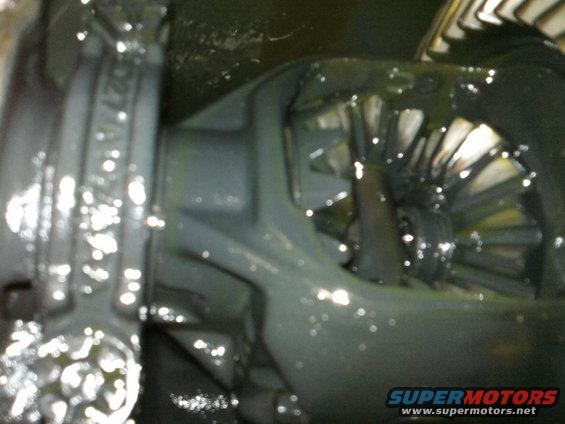

first look inside.

mr. pinion shaft hold bolt. [8mm]

pinion shaft out.

then push the hub into the center, you will see that removing the C-clips is possible now.

push the shaft slowly and carefully out.

pinion shaft the bolt [8mm]

deep pic.

no leak in the passenger side.

the 2 clips.

shaft ends, the grooves are for the C-clips. notice the rubber O-rings inside.

this is the passenger side shaft: no groove but it is scratches due to excessive heat.

both shafts

the left shaft is the driverside. it looks better than the other for sure.

ok it is leaking alot.

a valley of diff fluid is inside, maybe i added more than the desired mount.

driver side shaft.

C-clip groove on the shaft rubber O-ring

this magnetic tool is handy to pull out the C-cilp from the shaft.
