A-pillar and box.JPG | Hits: 1753 | Size: 39.95 KB | Posted on: 2/14/06 | Link to this image

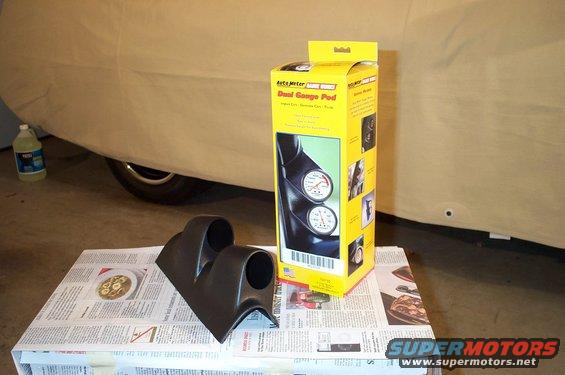

Marauder A-pillar dual gauge pod.
|
|
|
A-pillar and box1.JPG | Hits: 1382 | Size: 44.79 KB | Posted on: 2/14/06 | Link to this image
|
|
|
Tach and gauges.JPG | Hits: 1692 | Size: 40.8 KB | Posted on: 2/24/06 | Link to this image
The tachometer, voltometer, and tach adapter.
|
|
|
Preferring to keep an stock-appearing engine compartment, I painted the tach adapter.
|
|
|
Tach Adapter Primed.JPG | Hits: 1388 | Size: 19.37 KB | Posted on: 2/24/06 | Link to this image
|
|
|
Tach Adapter Primed1.JPG | Hits: 1323 | Size: 20.19 KB | Posted on: 2/24/06 | Link to this image
|
|
|
Tach Adapter Painted.JPG | Hits: 1353 | Size: 36.02 KB | Posted on: 2/24/06 | Link to this image
|
|
|
Tach Adapter Painted1.JPG | Hits: 1379 | Size: 45.56 KB | Posted on: 2/24/06 | Link to this image
|
|
|
Tach Adapter Painted2.JPG | Hits: 1350 | Size: 41.88 KB | Posted on: 2/24/06 | Link to this image
|
|
|
Tach Adapter Unmasked.JPG | Hits: 1304 | Size: 40.83 KB | Posted on: 2/24/06 | Link to this image
Back in black.
|
|
|
Tach Adapter Unmasked Top.JPG | Hits: 1454 | Size: 48 KB | Posted on: 2/24/06 | Link to this image
|
|
|
Tach Adapter Unmasked1.JPG | Hits: 1305 | Size: 35.33 KB | Posted on: 2/24/06 | Link to this image
|
|
|
A-pillar primed.JPG | Hits: 1434 | Size: 32.75 KB | Posted on: 3/1/06 | Link to this image
The primed donor a-pillar.
|
|
|
A-pillar painted.JPG | Hits: 1391 | Size: 34.67 KB | Posted on: 3/1/06 | Link to this image
|
|
|
A-pillar drilled.JPG | Hits: 1419 | Size: 28.97 KB | Posted on: 3/1/06 | Link to this image
Holes were drilled for the gauges' wiring.
|
|
|
Spotlight connector.JPG | Hits: 1579 | Size: 50.91 KB | Posted on: 3/1/06 | Link to this image
The P71 spotlight connector and wiring in the a-pillar.
|
|
|
The wiring that will be snaked through the side of the dash. Note the coathanger coming up through the dash.
|
|
|
Coathanger Dash.JPG | Hits: 1452 | Size: 31.51 KB | Posted on: 3/1/06 | Link to this image
|
|
|
Coathanger Floorboard.JPG | Hits: 1502 | Size: 49.01 KB | Posted on: 3/1/06 | Link to this image
|
|
|
All wiring was run through this wireloom for a cleaner install and to keep the wiring together.
|
|
|
Tach wire through firewall.JPG | Hits: 2224 | Size: 33.25 KB | Posted on: 3/1/06 | Link to this image
The green wire is the tach wire, running through a grommet into the firewall.
It's blurry but you get the idea.
|
|
|
Tach wire engine bay.JPG | Hits: 2025 | Size: 35.23 KB | Posted on: 3/1/06 | Link to this image
The tach wire coming through the grommet into the engine bay.
|
|
|
Holes for tach adapter.JPG | Hits: 2077 | Size: 51.43 KB | Posted on: 3/1/06 | Link to this image
The holes drilled for the tach adapter. The pick used to pierce the grommet can be seen on the fusebox.
|
|
|
Power diode spliced.JPG | Hits: 5190 | Size: 64.83 KB | Posted on: 3/1/06 | Link to this image
The R/LG wire was cut can connected to the tach adapter. I accidentally spliced into the wrong R/LG wire. Hence the extra white posi connector.
|
|
|
I used wiring looms and electrical tape to clean up the wiring install and to give a factory appearance.
|
|
|
Tach adapter installation complete.JPG | Hits: 1903 | Size: 56.33 KB | Posted on: 3/3/06 | Link to this image
Complete. The adapter blends in well with the engine bay and the wire looms and electrical tape conceal the additional wiring.
|
|
|
I attempted to use double-sided moulding tape to install the pod to the A-pillar. However, this did not hole and I ended up using the 3/16" fasteners supplied with the pod.
|
|
|
The pod and pillar mounted, awaiting the gauges.
|
|
|
Complete Side 1.JPG | Hits: 2321 | Size: 39.46 KB | Posted on: 3/3/06 | Link to this image
|
|
|
Outside appearance.JPG | Hits: 1549 | Size: 32.06 KB | Posted on: 3/3/06 | Link to this image
|
