1981 Ford F-150 Solid Axle Swap pictures, videos, and sounds

TallGuy > 1981 Ford F-150 > Solid Axle Swap

Url
Tag
Thumb

100_0490.JPG | Hits: 1270 | Size: 78.86 KB | Posted on: 8/30/05 | Link to this image

SAS axle donor

Url
Tag
Thumb

100_0491.JPG | Hits: 1074 | Size: 76.93 KB | Posted on: 8/30/05 | Link to this image

another

Url
Tag
Thumb

100_0492.JPG | Hits: 1076 | Size: 74.26 KB | Posted on: 8/30/05 | Link to this image

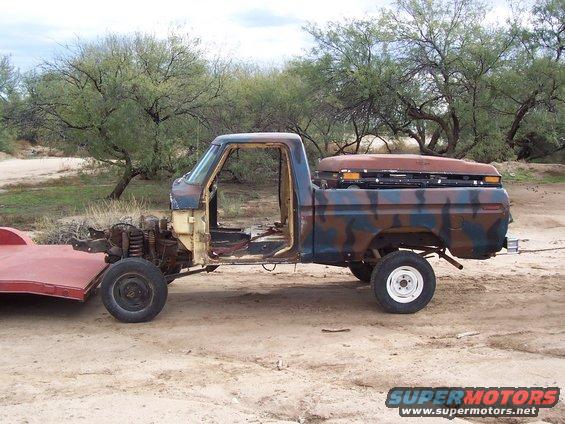

Nice camo

Url
Tag
Thumb

100_0493.JPG | Hits: 1061 | Size: 58.77 KB | Posted on: 8/30/05 | Link to this image

last one

Url
Tag
Thumb

100_0734.JPG | Hits: 1135 | Size: 68.42 KB | Posted on: 8/30/05 | Link to this image

Getting started - removing ttb axle

Url
Tag
Thumb

100_0735.JPG | Hits: 1101 | Size: 59.46 KB | Posted on: 8/30/05 | Link to this image

Drivers side getting removed

Url
Tag
Thumb

100_0736.JPG | Hits: 1089 | Size: 63.21 KB | Posted on: 8/30/05 | Link to this image

Passenger side

Url
Tag
Thumb

100_0737.JPG | Hits: 1032 | Size: 61.78 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0738.JPG | Hits: 1098 | Size: 61.94 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0739.JPG | Hits: 1059 | Size: 67.8 KB | Posted on: 8/30/05 | Link to this image

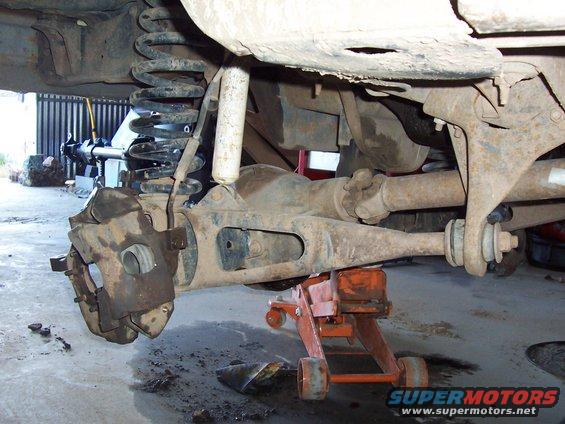

Url
Tag
Thumb

100_0740.JPG | Hits: 1065 | Size: 70.59 KB | Posted on: 8/30/05 | Link to this image

79 Axle, removed, and painted.

Url
Tag
Thumb

100_0741.JPG | Hits: 1185 | Size: 69.72 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0743.JPG | Hits: 1051 | Size: 53.57 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0744.JPG | Hits: 1046 | Size: 65.34 KB | Posted on: 8/30/05 | Link to this image

Solid Axle

Url
Tag
Thumb

100_0747.JPG | Hits: 1149 | Size: 72.34 KB | Posted on: 8/30/05 | Link to this image

TTB removed!

Url
Tag
Thumb

100_0748.JPG | Hits: 1063 | Size: 76.9 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0749.JPG | Hits: 1437 | Size: 75.06 KB | Posted on: 8/30/05 | Link to this image

Getting ready to bolt in.

Url
Tag
Thumb

100_0750.JPG | Hits: 1101 | Size: 63.21 KB | Posted on: 8/30/05 | Link to this image

All shiny

Url
Tag
Thumb

100_0751.JPG | Hits: 1092 | Size: 61.99 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0752.JPG | Hits: 1181 | Size: 55.89 KB | Posted on: 8/30/05 | Link to this image

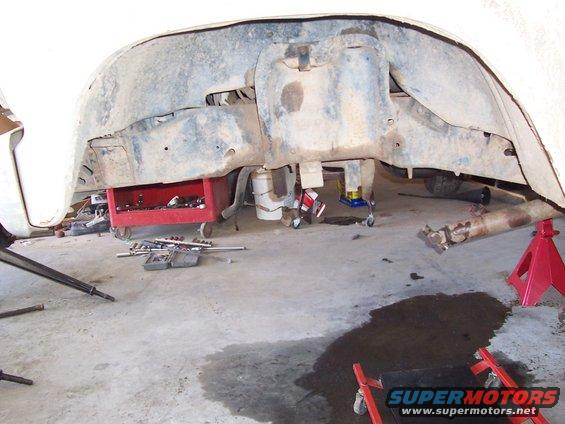

Look different?

Url
Tag
Thumb

100_0753.JPG | Hits: 1080 | Size: 58.25 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0754.JPG | Hits: 1114 | Size: 54.36 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0755.JPG | Hits: 1044 | Size: 69.07 KB | Posted on: 8/30/05 | Link to this image

Slid under the truck

Url
Tag
Thumb

100_0756.JPG | Hits: 1022 | Size: 74.46 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0757.JPG | Hits: 1233 | Size: 70.29 KB | Posted on: 8/30/05 | Link to this image

She's hanging!

Url
Tag
Thumb

100_0758.JPG | Hits: 1291 | Size: 65.95 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0759.JPG | Hits: 1533 | Size: 57.78 KB | Posted on: 8/30/05 | Link to this image

With axle hanging on the coils (cheap 6" lift), the driveshaft is sitting on the crossmember. It's fine for the moment, but when I swap to superflex springs, I'll be fixing that.

Url
Tag
Thumb

100_0760.JPG | Hits: 5836 | Size: 69.41 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0777.JPG | Hits: 1993 | Size: 75.97 KB | Posted on: 8/30/05 | Link to this image

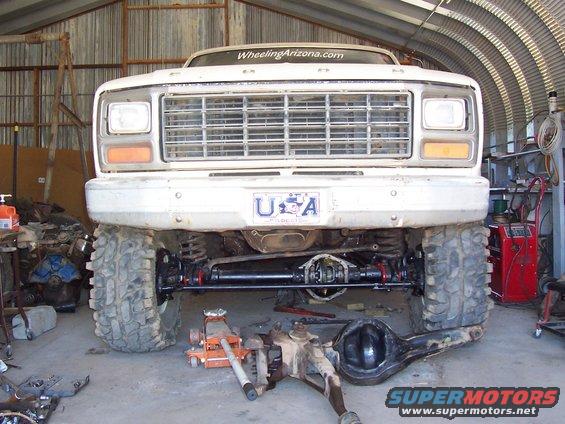

Set truck down on springs, and radius arms are on. Now I need to do the track bar. Gears and locker were previously set up.

Url
Tag
Thumb

100_0778.JPG | Hits: 1644 | Size: 75 KB | Posted on: 8/30/05 | Link to this image

Looks better

Url
Tag
Thumb

100_0779.JPG | Hits: 1929 | Size: 56.13 KB | Posted on: 8/30/05 | Link to this image

Radius arm brackets, modified.

Url
Tag
Thumb

100_0780.JPG | Hits: 1383 | Size: 53.65 KB | Posted on: 8/30/05 | Link to this image

Looking at angles, making sure things are straight

Url
Tag
Thumb

100_0781.JPG | Hits: 1554 | Size: 59.72 KB | Posted on: 8/30/05 | Link to this image

Getting ready to make a cover from the TTB arm..

Url
Tag
Thumb

100_0782.JPG | Hits: 1532 | Size: 66.02 KB | Posted on: 8/30/05 | Link to this image

I don't think the clear cover will work...

Url
Tag
Thumb

100_0783.JPG | Hits: 1360 | Size: 62.86 KB | Posted on: 8/30/05 | Link to this image

Url
Tag
Thumb

100_0790.JPG | Hits: 1355 | Size: 70.09 KB | Posted on: 8/30/05 | Link to this image

TTB arm cut out for cover, with some sliding protection left on the bottom

Url
Tag
Thumb

100_0791.JPG | Hits: 1312 | Size: 57.71 KB | Posted on: 8/30/05 | Link to this image

Another view, with stock cover unpainted

Url
Tag
Thumb

100_0792.JPG | Hits: 1356 | Size: 58.65 KB | Posted on: 8/30/05 | Link to this image

You can't tell from the photo, but the TTB arm cut out is about twice as thick as the stock cover.

Url
Tag
Thumb

100_0846.JPG | Hits: 1555 | Size: 69.86 KB | Posted on: 8/30/05 | Link to this image

Other side bracket, after paint

Url
Tag
Thumb

100_0847.JPG | Hits: 1379 | Size: 53.66 KB | Posted on: 8/30/05 | Link to this image

The old shock mount on top is in the bucket, and doesn't quite line up with the new lower mount on the radius arms. I need to fix this at some point.

Url
Tag
Thumb

100_0848.JPG | Hits: 1310 | Size: 73.33 KB | Posted on: 8/30/05 | Link to this image

The completed install

Url
Tag
Thumb

100_0849.JPG | Hits: 1337 | Size: 69.85 KB | Posted on: 8/30/05 | Link to this image

Another view

Url
Tag
Thumb

100_0850.JPG | Hits: 1324 | Size: 69.62 KB | Posted on: 8/30/05 | Link to this image

Track bar bracket

Url
Tag
Thumb

100_0851.JPG | Hits: 1261 | Size: 52.8 KB | Posted on: 8/30/05 | Link to this image

Testing

Url
Tag
Thumb

100_0852.JPG | Hits: 1263 | Size: 72.86 KB | Posted on: 8/30/05 | Link to this image

testing

Url
Tag
Thumb

100_0853.JPG | Hits: 1204 | Size: 46.7 KB | Posted on: 8/30/05 | Link to this image

testing

Url
Tag
Thumb

100_0854.JPG | Hits: 1196 | Size: 55.21 KB | Posted on: 8/30/05 | Link to this image

testing

Url
Tag
Thumb

100_0855.JPG | Hits: 1129 | Size: 49.68 KB | Posted on: 8/30/05 | Link to this image

testing

Url
Tag
Thumb

000_0069.jpg | Hits: 863 | Size: 54.87 KB | Posted on: 2/21/09 | Link to this image

Superflex coils, finally!
