Hmmm....looks like it'll fit from here
|
|
|
Yeah....looks good from this angle too
|
|
|
The 460's bed is ready...
|
|
|
A/C?? In a HotRod??
|
|
|

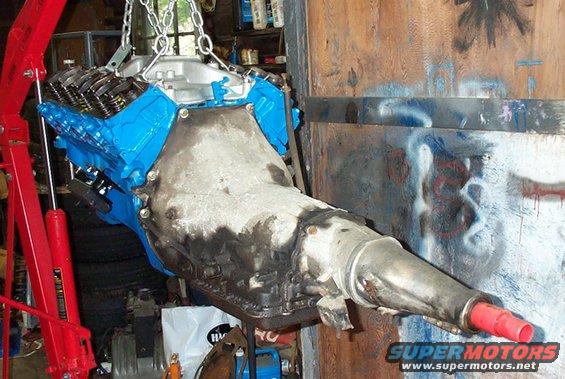

DANG a C6 is one L-O-N-G transmission
|
|
|
Gonna need a new driveshaft with that transmission
|
|
|
Small case starters ROCK!
|
|
|
"Mikey....I think she likes it!"
|
|
|
Big cars....Big motors.....the way things should be.
|
|
|
Dang....these headers don't fit
|
|
|
Modified AOD shifter linakge
|
|
|
Modified linkage side view
|
|
|
Holes drilled for new motor mounts. Missed with the first try...OOPS...
|
|
|
Driver's side. (Using the hole that runs front to back)
|
|
|
Cleaned up and ready for the motor!
|
|
|
Stock C6 shifter linkage from a '78 Lincoln Town Car.
|
|
|
Modified to fit the '91 CV transmission tunnel.
|
|
|
Stock AOD cross member modified to hold the C6
|
|
|
Original mounting pad was ground off and new holes drilled.
|
|
|
Hmmm...might be a ground clearance issue there.
|
|
|
New drive shaft is being built. Everything looks to be in-line!
|
|
|
The new and improved driveshaft.
|
|
|
After two attempts at headers....old school manifolds fit the best.
|
|
|

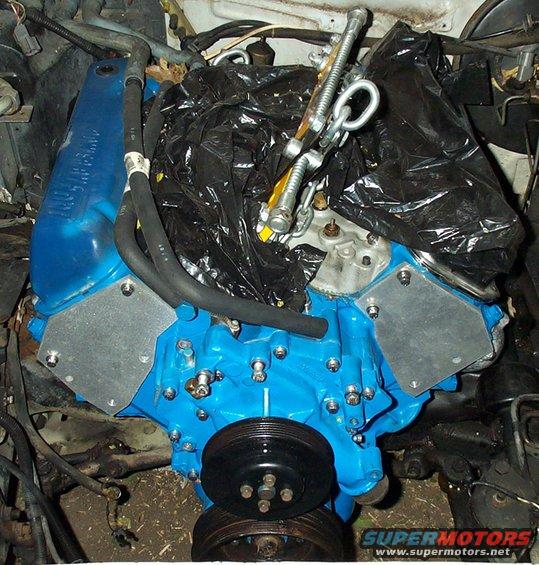

Adapter plates installed. This will let us use the factory 5.0 A/C, PS and Alternator.
|
|
|
Serpentine belts line up, with a little help.
|
|
|
C6 resting on it's newly customized cross member.
|
|
|
Passenger side manifold installed.
|
|
|
Driver's side manifold. Look at the extra room up there
|
|
|
Lots of detailing to do, but looks ready to RUMBLE
|
|
|
3300cfm cooling fan on stock CV radiator
|
|
|
All accessories mounted and belted
|
|
|
Alternator and PS in stock locations thanks to custom adapter plates.
|
|
|
A/C compressor is ready to go. Adapter plate working like magic.
|
|
|
Everything lines up! Just a little grinding here and there to get it all perfect.
|
|
|
Radiator and fan installed. Plenty of room for a larger radiator...should the need arise.
|
|
|
Can't believe how "right" it looks sitting there.
|
|
|
A few more connections before she's ready to rumble.
|
|
|
Wiring covered and cleaned up
|
|
|
Still have to finish the A/C work. Yes, it will have working A/C!
|
|
|
Added a tach to keep track of things under the hood.
|
|
|
Had to ditch the 302 radiator for something a little bigger. A new transmission cooler was added as well.
|
|
|
Not quite as wide as the original radiator, but a lot thicker, and all aluminum.
|
|
|
The upper hose just clears the A/C now, but there is plenty of room between the fan and the motor.
|
|
|
Compared to the 302 radiator, this is a monster!
|
|
|
Right side header looking down and back from front of car
|
|
|
Another lower view.....TIGHT fit for the 2 remaining pipes
|
|
|
 DriversSideFront.jpg | Hits: 650 | Size: 77.18 KB | Posted on: 3/29/05 | Link to this image
Looking straight down on the left side header
|
|
|
You can see the rear most pipe wants to go straight through the steering shaft.
|
|
|
 PassengerHeader.jpg | Hits: 711 | Size: 99.64 KB | Posted on: 3/29/05 | Link to this image
Passenger side header
|
|
|
Digital guages everywhere!
|
|
|
Newly powder-coated accesories and brackets
|
|
|
Driver's side header....plenty of room for the steering shaft with these!
|
|
|
Passenger side header.....so pretty!
|
|
|
 InterceptorStripe1.jpg | Hits: 1277 | Size: 24.03 KB | Posted on: 4/23/09 | Link to this image
Stripe style #1
|
|
|
 InterceptorStripe2.jpg | Hits: 1315 | Size: 24.36 KB | Posted on: 4/23/09 | Link to this image
Stripe style #2
|
|
|
 101709_460CV_Track_Times.JPG | Hits: 1383 | Size: 33.07 KB | Posted on: 10/19/09 | Link to this image
Time slips
|
460 CV Project
