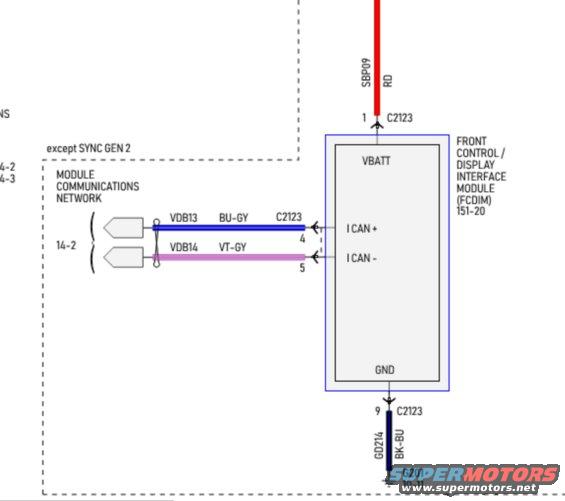

fdcim.jpg source wiring to tap main apim wiring. this is the factory fdcim wiring. 4 wires total. on the factory harness these wires split off from a single source behind the dash.
