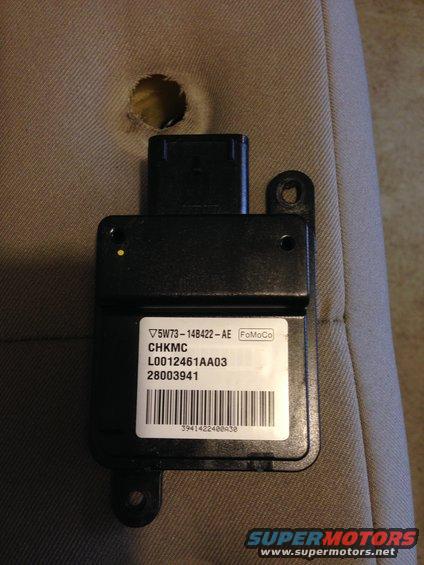

Figure out what the code is, it will repeat the code a few times when you start up then light up solid. When the light is on the airbag system is compromised. 1-2 4 RCM Is Faulted INSTALL a new RCM. 1-3 5 Crash Data Memory Full INSTALL a new RCM and impact sensors. 1-4 6 Air Bag Diagnostic Monitor Ground Circuit Open 1-5 7 Incorrect Module Design Level (RCM Version Conflicts with OCS Version Fault) 1-6 81 Occupant Classification Sensor System Fault (OCS Communication Fault) 1-8 86 PAD Warning Lamp Circuit Failure 1-9 46 Restraint System - Air Bag Fault (Driver Squib 1 Open/High Resistance Fault) 2-1 54 Restraint System - Air Bag Fault (Passenger Squib 1 Open/High Resistance Fault) 2-2 70 Restraint System - Side Air Bag Fault (Driver Seat Side Air Bag Open/High Resistance Fault) 2-3 74 Restraint System - Side Air Bag Fault (Passenger Seat Side Air Bag Open/High Resistance Fault) 3-3 62 Restraint System - Safety Belt Pretensioner Fault (Driver Open/High Resistance Fault) 3-4 66 Restraint System - Safety Belt Pretensioner Fault (Passenger Open/High Resistance Fault) 4-2 19 Restraint System - Impact Sensor Fault (LH Front Impact Severity Communication Fault) 4-3 29 Restraint System - Impact Sensor Fault (Driver Side Communication Fault) 4-4 34 Restraint System - Impact Sensor Fault (Passenger Side Communication Fault) 4-9 90 Driver Seat Track Position Sensor Circuit Open 4-11 17 Restraint System - Impact Sensor Fault (LH Front Impact Severity Mounting Fault) 4-12 27 Restraint System - Impact Sensor Fault (Driver Side Mounting Fault) 4-13 32 Restraint System - Impact Sensor Fault (Passenger Side Mounting Fault) 5-1 38 Driver Safety Belt Buckle Switch Circuit Open 5-2 42 Passenger Safety Belt Buckle Switch Circuit Open 5-3 94 Air Bag Tone Warning Indicator Circuit Open or Short to Ground 5-4 12 Module Configuration Error (RCM Configured Incorrectly) INSTALL a new RCM. Refer to Restraints Control Module (RCM) in this section. 6-1 18 Restraint System - Impact Sensor Fault (LH Front Impact Severity Internal Fault) 6-2 28 Restraint System - Impact Sensor Fault (Driver Side Internal Fault) 6-3 33 Restraint System - Impact Sensor Fault (Passenger Side Internal Fault) 6-6 16 Restraint System - Impact Sensor Fault (LH Front Impact Severity Short to Ground Fault) 6-7 26 Restraint System - Impact Sensor Fault (Driver Side Short to Ground Fault) 6-8 31 Restraint System - Impact Sensor Fault (Passenger Side Short to Ground Fault) 6-11 15 Restraint System - Impact Sensor Fault (LH Front Impact Severity Short to Battery Fault) 6-12 25 Restraint System - Impact Sensor Fault (Driver Side Short to Battery Fault) 6-13 30 Restraint System - Impact Sensor Fault (Passenger Side Short to Battery Fault) 7-1 36 Driver Safety Belt Buckle Switch Circuit Short to Ground 7-2 40 Passenger Safety Belt Buckle Switch Circuit Short to Ground 7-3 88 Driver Seat Track Position Sensor Circuit Short to Ground 7-5 37 Driver Safety Belt Buckle Switch Circuit Resistance Out Of Range 7-6 41 Passenger Safety Belt Buckle Switch Circuit Resistance Out Of Range 7-7 89 Driver Seat Track Position Sensor Circuit Resistance Out Of Range 7-9 35 Driver Safety Belt Buckle Switch Circuit Short to Battery 7-10 39 Passenger Safety Belt Buckle Switch Circuit Short to Battery 7-11 87 Driver Seat Track Position Sensor Short to Battery Fault 7-13 91 Belt Tension Sensor Fault (Belt Tension Sensor Open or Short to Battery Fault) 7-14 92 Belt Tension Sensor Fault (Belt Tension Sensor Short to Ground Fault) 8-1 50 Restraint System - Air Bag Fault (Driver Squib 2 Open/High Resistance Fault) 8-2 58 Restraint System - Air Bag Fault (Passenger Squib 2 Open/High Resistance Fault) 8-3 45 Restraint System - Air Bag Fault (Driver Squib 1 Short to Ground Fault) 8-4 49 Restraint System - Air Bag Fault (Driver Squib 2 Short to Ground Fault) 8-5 53 Restraint System - Air Bag Fault (Passenger Squib 1 Short to Ground Fault) 8-6 57 Restraint System - Air Bag Fault (Passenger Squib 2 Short to Ground Fault) 8-7 44 Restraint System - Air Bag Fault (Driver Squib 1 Short to Battery Fault) 8-8 48 Restraint System - Air Bag Fault (Driver Squib 2 Short to Battery Fault) 8-9 52 Restraint System - Air Bag Fault (Passenger Squib 1 Short to Battery Fault) 8-10 56 Restraint System - Air Bag Fault (Passenger Squib 2 Short to Battery Fault) 8-11 47 Restraint System - Air Bag Fault (Driver Squib 1 Low Resistance Fault) 8-12 51 Restraint System - Air Bag Fault (Driver Squib 2 Low Resistance Fault) 8-13 55 Restraint System -- Air Bag Fault (Passenger Squib 1 Low Resistance Fault) 8-14 39 Restraint System - Air Bag Fault (Passenger Squib 2 Low Resistance Fault) 9-1 69 Restraint System - Side Air Bag Fault (Driver Seat Side Air Bag Short to Ground Fault) 9-2 73 Restraint System - Side Air Bag Fault (Passenger Seat Side Air Bag Short to Ground Fault) 9-3 61 Restraint System - Safety Belt Pretensioner Fault (Driver Short to Ground Fault) 9-4 65 Restraint System - Safety Belt Pretensioner Fault (Passenger Short to Ground Fault) 9-5 68 Restraint System - Side Air Bag Fault (Driver Seat Side Air Bag Short to Battery Fault) 9-6 72 Restraint System - Side Air Bag Fault (Passenger Seat Side Air Bag Short to Battery Fault) 9-7 60 Restraint System - Safety Belt Pretensioner Fault (Driver Short to Battery Fault) 9-8 64 Restraint System - Safety Belt Pretensioner Fault (Passenger Short to Battery Fault) 9-9 71 Restraint System - Side Air Bag Fault (Driver Seat Side Air Bag Low Resistance Fault) 9-10 75 Restraint System - Side Air Bag Fault (Passenger Seat Side Air Bag Low Resistance Fault) 9-11 63 Restraint System - Safety Belt Pretensioner Fault (Driver Low Resistance Fault) 9-12 67 Restraint System - Safety Belt Pretensioner Fault (Passenger Low Resistance Fault) 10-14 85 PAD Warning Lamp Circuit Short to Battery 10-15 93 Air Bag Tone Warning Indicator Circuit Short to Battery 11-1 8 Incorrect Module Design Level (RCM Version Conflicts with LH Front Impact Severity Sensor Version Fault) 11-2 10 Incorrect Module Design Level (RCM Version Conflicts with Driver Side Impact Sensor Version Fault) 11-3 11 Incorrect Module Design Level (RCM Version Conflicts with Passenger Side Impact Sensor Version Fault) 11-6 13 Module Configuration Error (Restraints Component Installed but not expected: OCS) INSTALL a new RCM. 11-7 14 Module Configuration Error (Restraints Component Installed but not expected: PAD Indicator) INSTALL a new RCM. 11-8 80 Occupant Classification Sensor System Fault (OCS Module Fault) 11-9 83 Occupant Classification Sensor System Fault (OCS Calibration Fault) 11-10 82 Occupant Classification Sensor System Fault (OCS Sensing Element Fault) 11-11 84 Occupant Classification Sensor System Fault (OCS Mounting Fault) 12-1 9 Incorrect Module Design Level (RCM Version Conflicts with RH Front Impact Severity Sensor Version Fault) 12-2 22 Restraint System - Impact Sensor Fault (RH Front Impact Severity Communication Fault) 12-3 23 Restraint System - Impact Sensor Fault (RH Impact Severity Internal Fault) 12-4 24 Restraint System - Impact Sensor Fault (RH Front Impact Severity Communication Fault) 12-5 21 Restraint System - Impact Sensor Fault (RH Impact Severity Short to Ground Fault) 12-6 20 Restraint System - Impact Sensor Fault (RH Impact Severity Short to Battery Fault 12-7 78 Deployable Steering Column Circuit Open 12-8 76 Deployable Steering Column Short to Battery 12-9 77 Deployable Steering Column Short to Ground 12-10 79 Deployable Steering Column Resistance Fault 12-11 43 Cross Link Between Firing Loops | |||||||||||||||||||||
