Passengers side disk. Pads aren't making full contact on both sides of the rotor.
|
|
|
Passengers side disk. Not really grooved. Shiney part is where pads made contact with the rotor. The rust part is higher than the shiney part.
|
|
|
Drivers side very smooth both sides. No rust where pads made contact.
|
|
|
Even wear on both sides of rotor.
|
|
|
Bleeder valve hard to get to because it points right at the spindle.
|
|
|
Drivers side caliper piston has some maring but overall good condition. Rubber seal still soft and functional.
|
|
|
Passenger side caliper. Seal is flat and hard. Piston is frozen.
|
|
|
After replacing spindle seals & repacking needle bearings
|
|
|

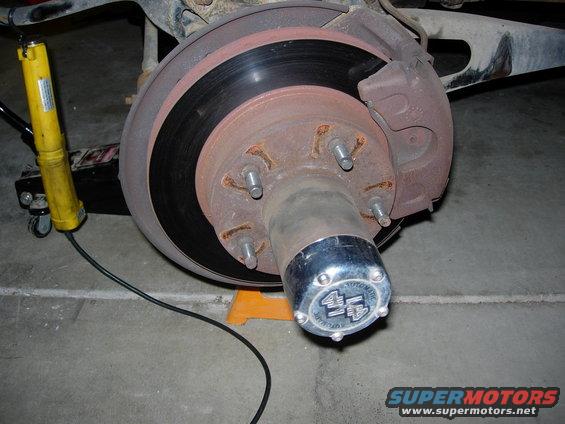

Hub cleaned , new races installed, & rotor mounted
|
|
|
Tightening wheel bearings. Inner nut installed and tightened first to 50lbs, then backed off & retightened to 40lbs. Washer inside tab installed in axel groove, & hole in washer installed on inner nut pin. Outboard nut tightened to 200lbs.
|
|
|

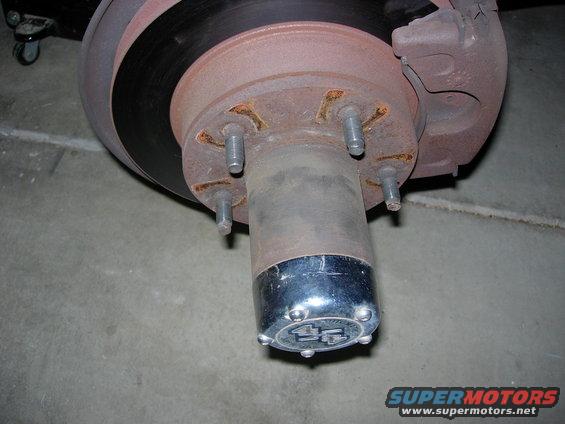

Warn Premium manual hub lock replaces factory auto lock.
|
Brakes
