For reference, stock front framerail before any mods. (Sorry for the smoky pic)

4561 hits | 40.34 KB | Posted: 7/31/03

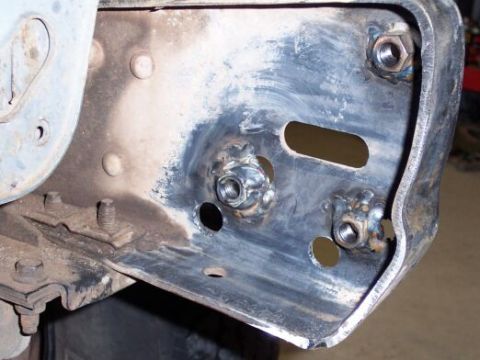

Welded nuts in for bumper before boxing

4704 hits | 22.77 KB | Posted: 7/31/03
Front framerail (other side obviously) boxed, DOM tubing run for front hanger

5192 hits | 29.96 KB | Posted: 7/31/03
Here's how the hanger will sit once bolts are run thru the DOM. Front hanger is stock from a '77ish...

4822 hits | 35.13 KB | Posted: 7/31/03

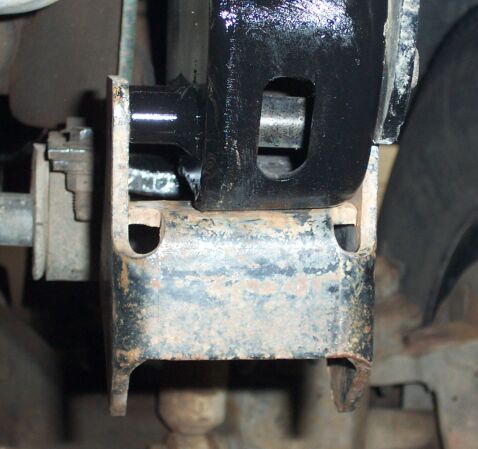

Another pic of other framerail and front hanger

4373 hits | 31.53 KB | Posted: 7/31/03

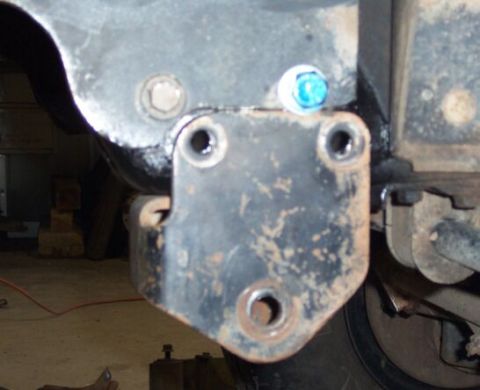

A side view of the '77 hanger. U can see I had to trim my custom front bumper a bit.

3789 hits | 20.38 KB | Posted: 7/31/03

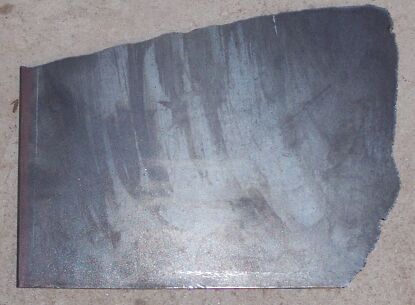

Here's the template for boxing (a plasma is a beautiful thing)

4387 hits | 29.16 KB | Posted: 7/31/03

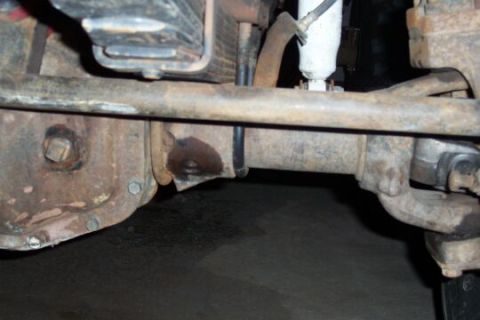

Steve Rickard's u-bolt flip on his '78/9 60 front

4700 hits | 68.65 KB | Posted: 7/31/03

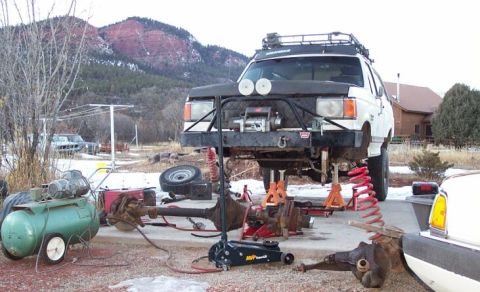

Home from Steve's shop, the swap starts in February '02 (is there a more wonderful thing than rippin...

4025 hits | 51.35 KB | Posted: 7/31/03

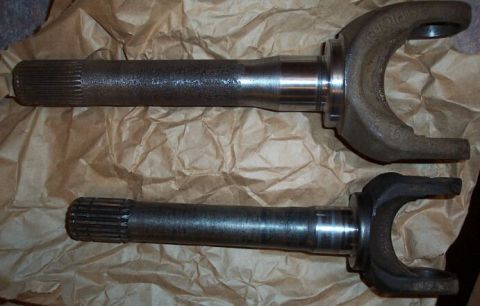

Here's a stock 19 spline D44 stub shaft next to a stock 30 spline D60 stub shaft

4158 hits | 54.24 KB | Posted: 7/31/03

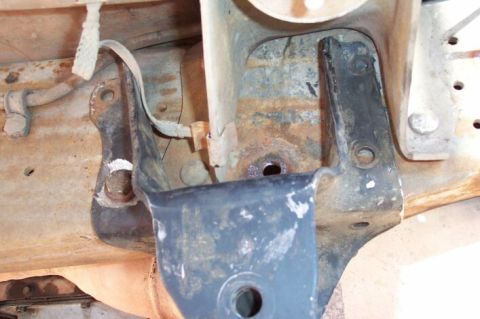

The rear hangers for the front springs are stock from any '80-97 F250 or 350. This is where they si...

3967 hits | 64.57 KB | Posted: 7/31/03

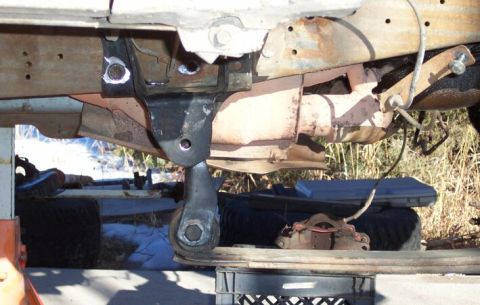

See, this shackle angle just ain't cutting it

4037 hits | 48.09 KB | Posted: 7/31/03

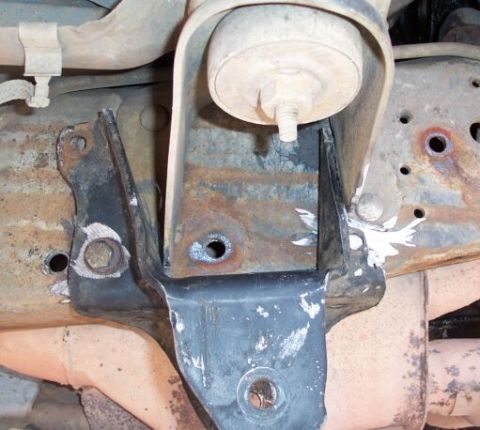

Here's the same hanger moved forward after a few grinder mods

3814 hits | 49.65 KB | Posted: 7/31/03

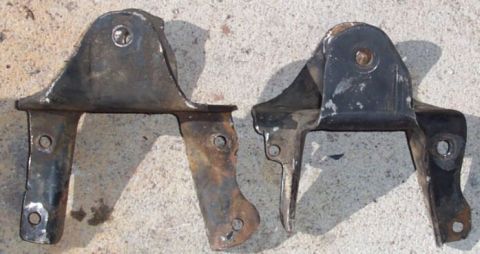

Here's a stock hanger vs the how I needed to mod the rear hangers for the front springs

3554 hits | 42.41 KB | Posted: 7/31/03

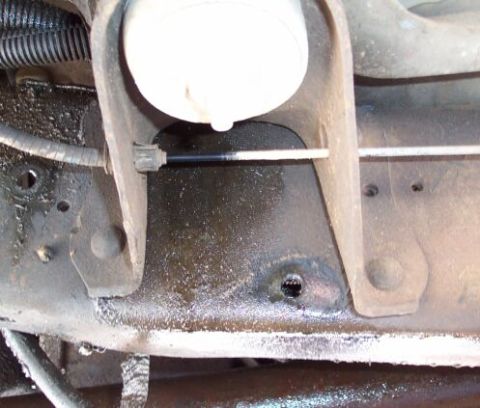

Here's the body mount on the driver's side....

3792 hits | 27.1 KB | Posted: 7/31/03

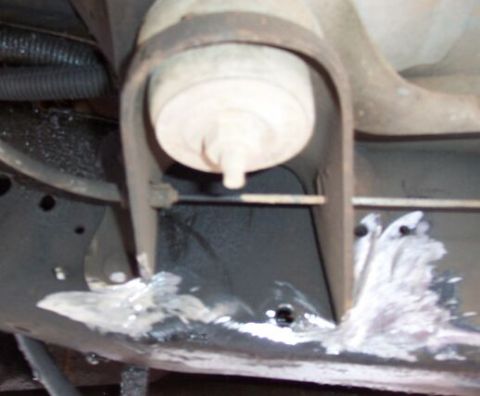

..... here's the same body mount after a little discussion with Mr. Grinder. This plus the mods to ...

4066 hits | 29.91 KB | Posted: 7/31/03

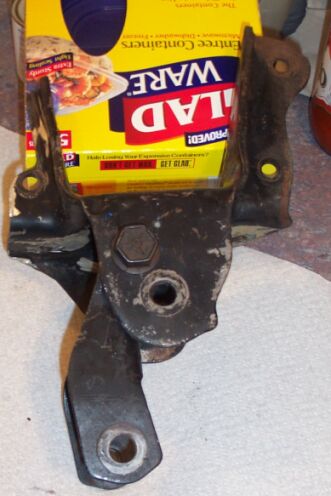

I also moved the hole in the rear hanger UP and FORWARD for better clearance and improved shackle an...

4934 hits | 27.46 KB | Posted: 7/31/03

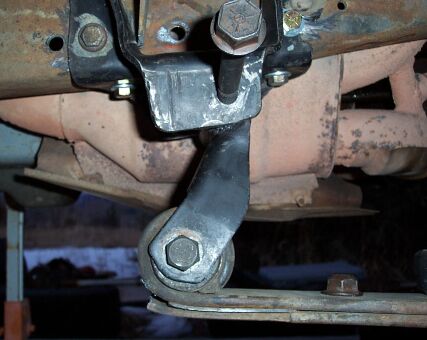

Here's the final setup and the shackle angle gets better as it's weighted

3870 hits | 31.18 KB | Posted: 7/31/03

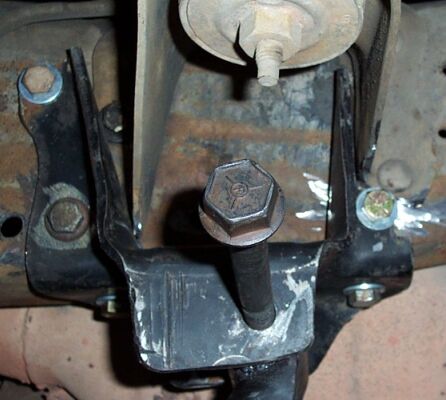

A close-up of the above shot. Note the hole to the left is where the hanger originally WAS; my grin...

4013 hits | 71.84 KB | Posted: 7/31/03

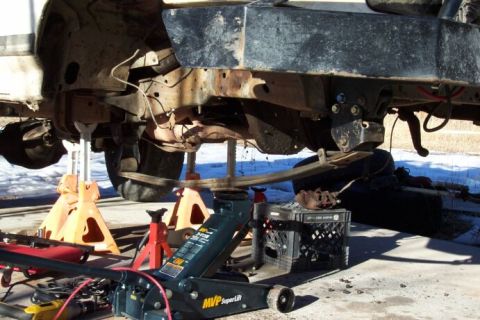

Here's a general shot of the leaf installed (I had a better shot somewhere...)

4114 hits | 63.07 KB | Posted: 7/31/03

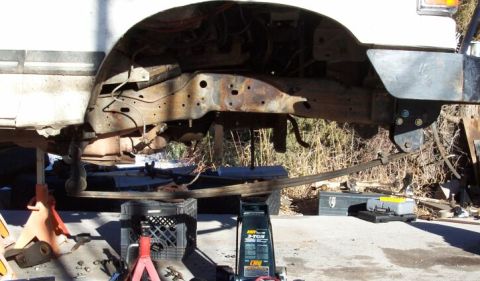

Same as above, different perspective (note this was before I improved the shackle angle)

4611 hits | 70.72 KB | Posted: 7/31/03

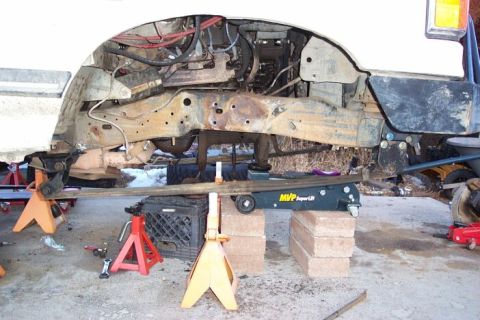

Here we go, here's the finished setup weighted

4176 hits | 60.71 KB | Posted: 7/31/03

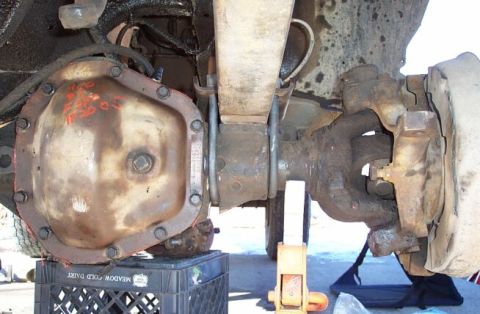

I copied Steve and flipped my u-bolts too

4128 hits | 63.93 KB | Posted: 7/31/03

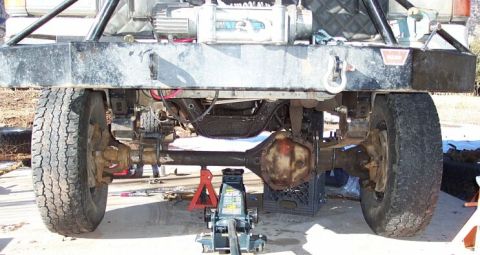

Here it lives under the truck (no brakes or steering yet)

3673 hits | 40.76 KB | Posted: 7/31/03

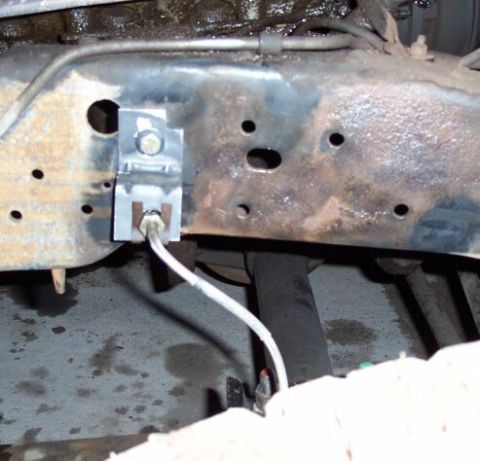

I used the stock brackets off an F250/350 for the brake hard line/soft line interface, but any piece...

3461 hits | 39.21 KB | Posted: 7/31/03

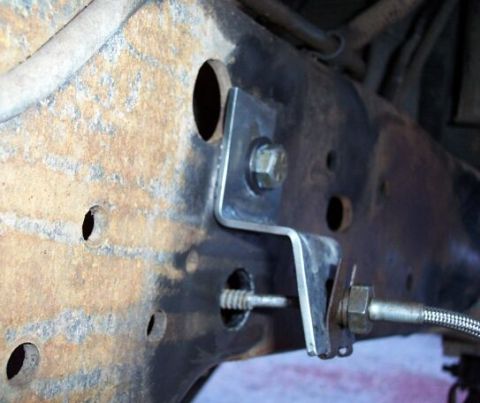

A better shot of the brake line bracket

3709 hits | 42.6 KB | Posted: 7/31/03

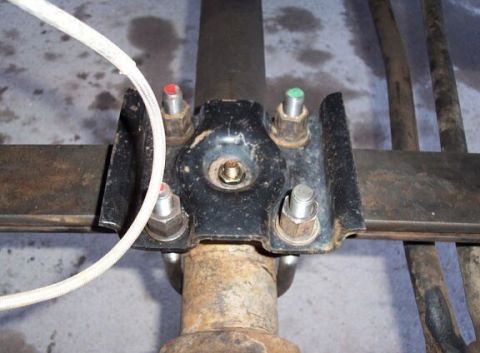

On the passenger side I was able to use an old 8.8 spring plate with just a slight amount of reaming...

3496 hits | 35.29 KB | Posted: 7/31/03

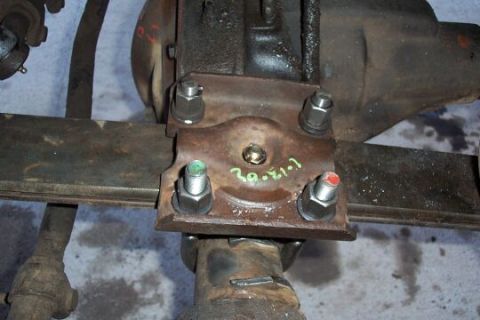

On the driver's side I temporarily used an F250 TTB spring plate. Note this is how a spring plate s...

3663 hits | 50.4 KB | Posted: 7/31/03

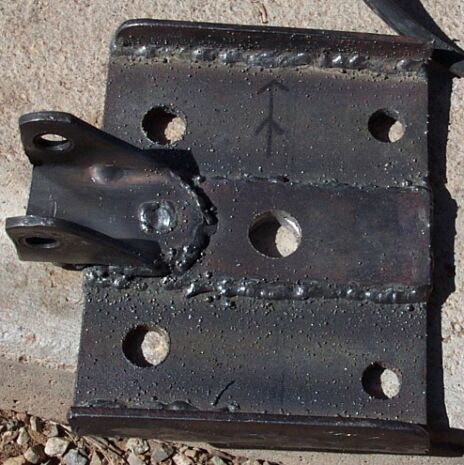

I later built my own spring plate for the driver's side. 1/4" plate isn't enough, it's now bending ...

3520 hits | 61.01 KB | Posted: 7/31/03

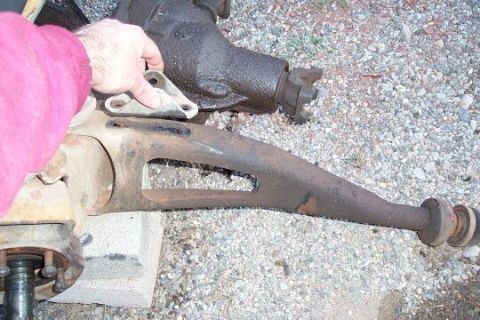

The lower shock mounts were stolen off my old TTB arms, trimmed, and welded to the spring plates (se...

3818 hits | 54 KB | Posted: 7/31/03

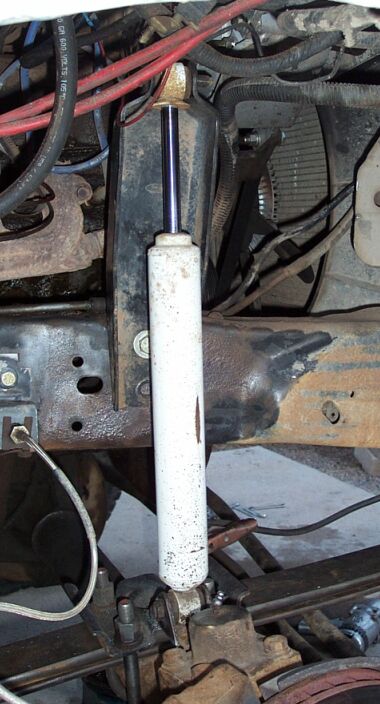

The upper shock mounts are stock from an '80+ F250 or 350. Simple, bolt-on.

3745 hits | 29.19 KB | Posted: 7/31/03

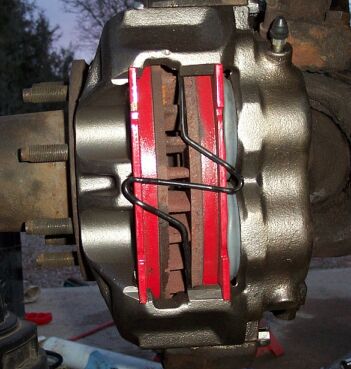

Here's a loaded caliper installed with the anti-rattle clip

4777 hits | 74.24 KB | Posted: 7/31/03

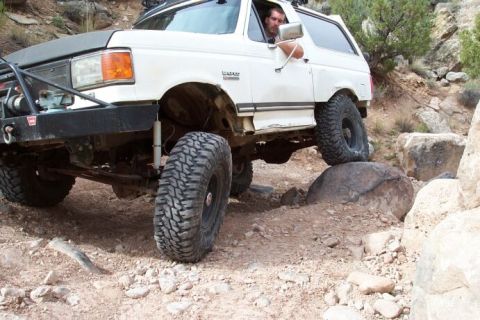

In the end it works quite nicely on the trails

4418 hits | 69.35 KB | Posted: 7/31/03

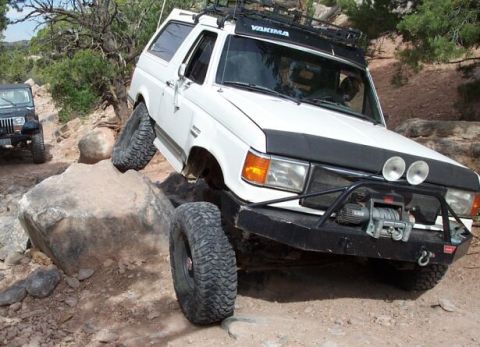

Ditto

3367 hits | 67.67 KB | Posted: 7/31/03

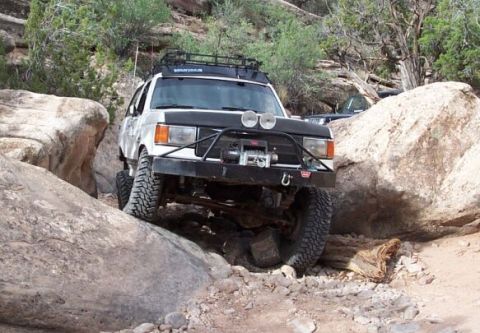

I like this one too, even tho it doesn't show incredible flex

3178 hits | 58.55 KB | Posted: 7/31/03

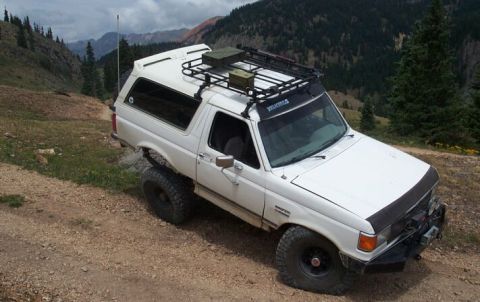

Two more poser shots

3544 hits | 78.35 KB | Posted: 7/31/03

3189 hits | 48.68 KB | Posted: 8/1/03

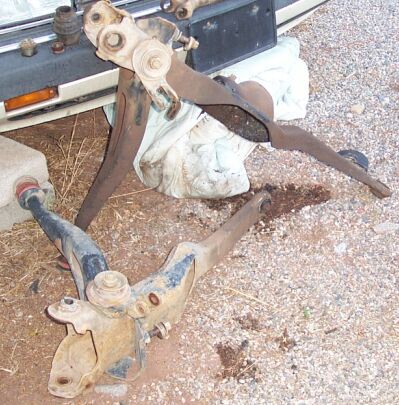

R.I.P. TTB!

3252 hits | 62.1 KB | Posted: 8/13/03

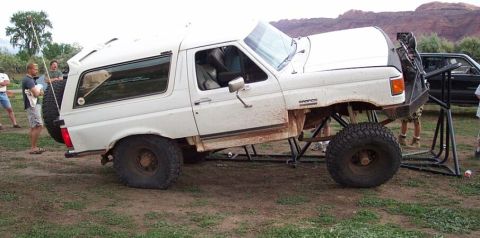

20 degree ramp

4248 hits | 104 KB | Posted: 8/13/03

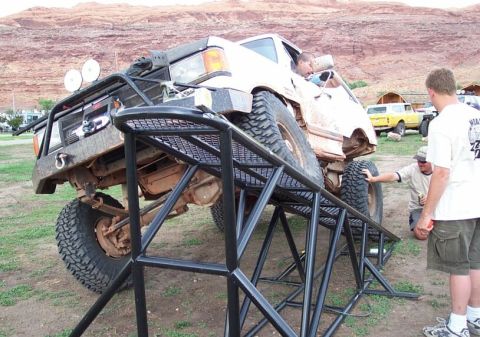

1025 score going forward

3073 hits | 64.91 KB | Posted: 8/13/03

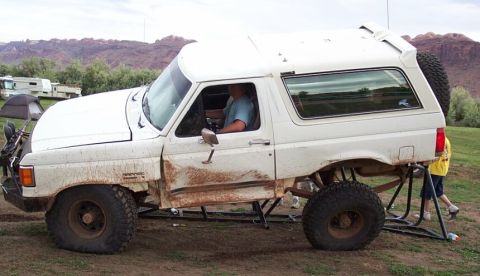

Front 37" stuffs into my inner fender

3425 hits | 91.08 KB | Posted: 8/13/03

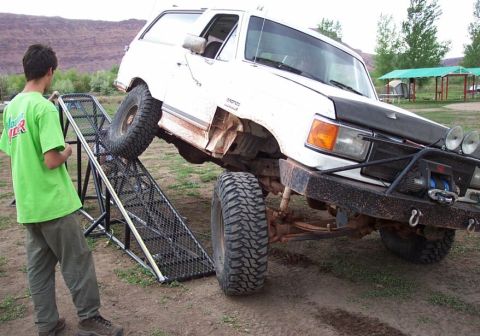

971 score in reverse

Moab 4-4-03 017.jpg
3228 hits | 78.2 KB | Posted: 8/26/03

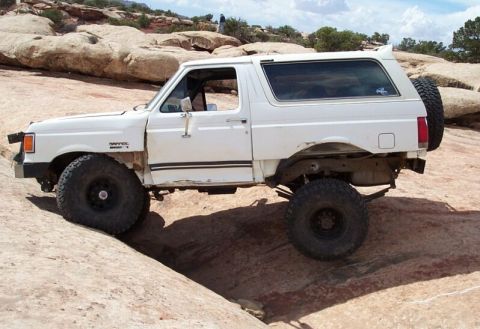

Messing around on a random crack on Seven Mile Rim

3399 hits | 84.15 KB | Posted: 8/26/03

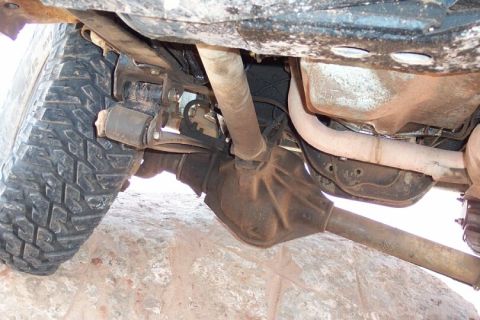

Stuffed spring

3428 hits | 75.48 KB | Posted: 8/26/03

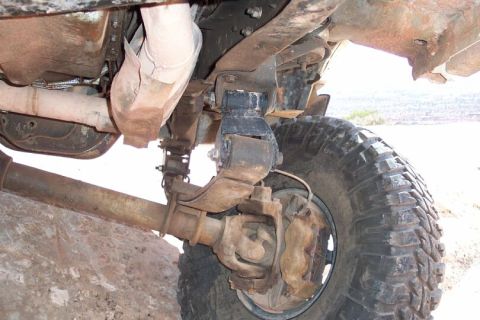

Drooped spring

Poseur 009.jpg
3008 hits | 71.21 KB | Posted: 8/26/03

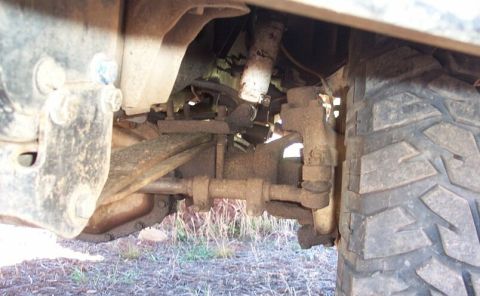

Here's a poser shot in my front yard. Here the driver's front is stuffed. Quite a bit of negative ...

3349 hits | 35.34 KB | Posted: 10/1/03

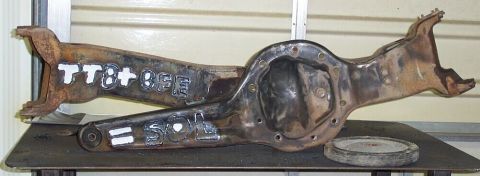

TTB + BFE = SOL

3077 hits | 37.06 KB | Posted: 10/1/03

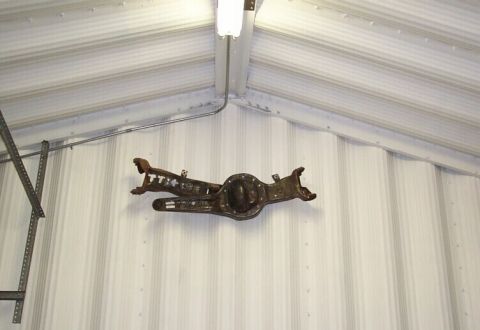

TTB "art" hung on shop wall
