557 hits | 79.01 KB | Posted: 9/8/08

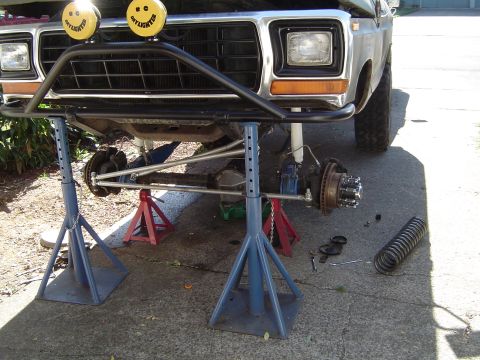

Got it up on jackstands today to start fixing some things. It only has 4 degree bushings, and needs ...

477 hits | 64.1 KB | Posted: 9/8/08

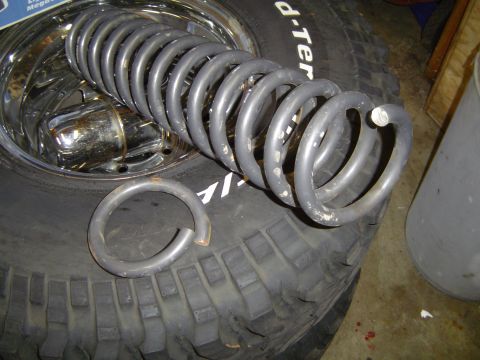

I had already cut the springs to fit the spring cup better, now I cut 1 full coil.

473 hits | 52.09 KB | Posted: 9/8/08

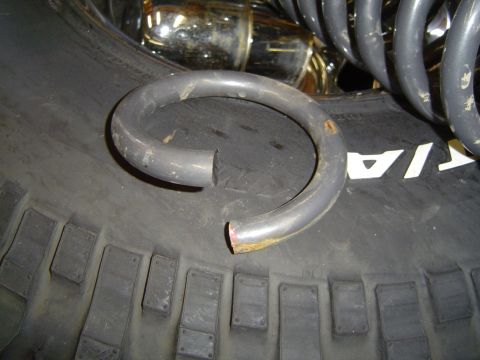

1 Cut coil

456 hits | 64.18 KB | Posted: 9/8/08

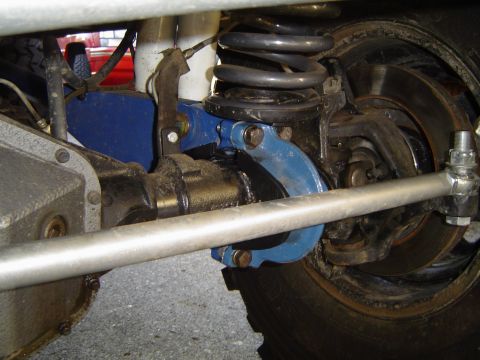

Installed 7 degree bushing.

415 hits | 66.13 KB | Posted: 9/8/08

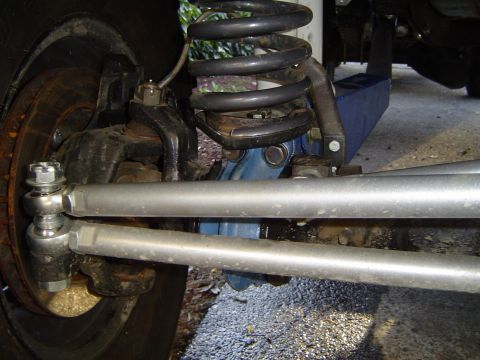

Passenger side as well

384 hits | 75.08 KB | Posted: 9/8/08

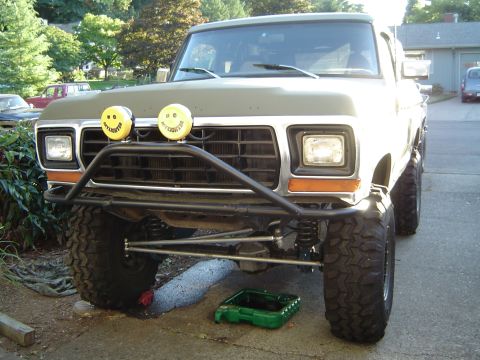

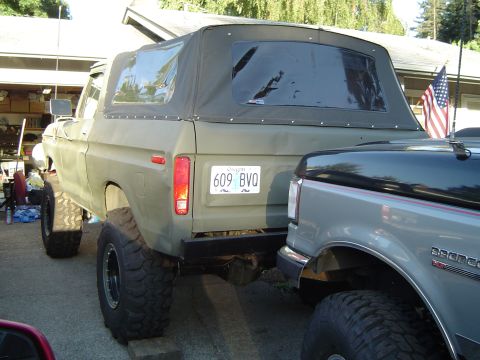

Hard to see in driveway pics, but it is ALOT lower

458 hits | 83.18 KB | Posted: 9/8/08

445 hits | 65.03 KB | Posted: 9/8/08

9-10-08 012.jpg
411 hits | 62.88 KB | Posted: 9/9/08

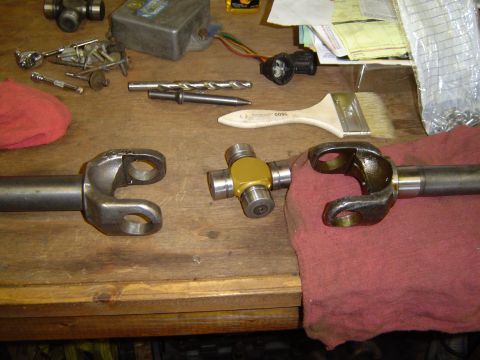

Got my warrantied shafts, so time to put them together with the superjoints

9-10-08 014.jpg
412 hits | 62.98 KB | Posted: 9/9/08

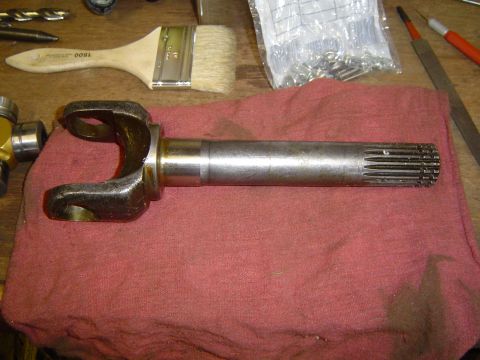

New stub shaft

9-10-08 015.jpg
442 hits | 63.72 KB | Posted: 9/9/08

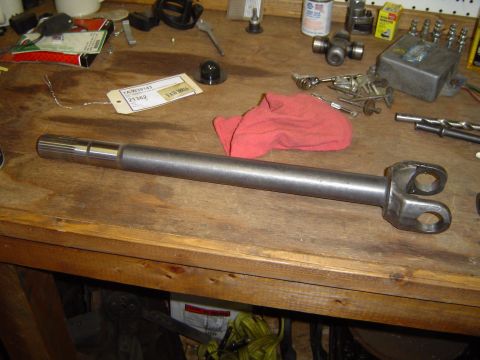

New short side shaft

9-10-08 016.jpg
404 hits | 61.83 KB | Posted: 9/9/08

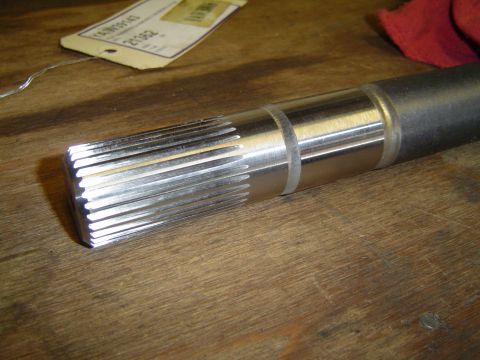

Looks different on this end I think

9-10-08 017.jpg
412 hits | 74.04 KB | Posted: 9/9/08

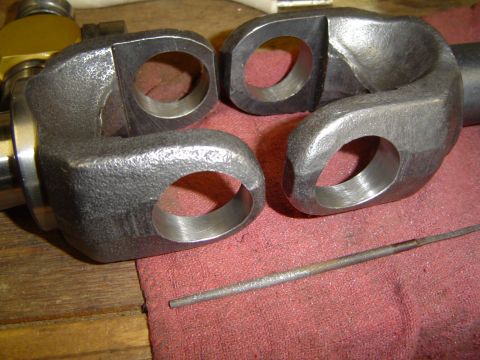

Deburred the bores with a small file

9-10-08 020.jpg
432 hits | 61.95 KB | Posted: 9/9/08

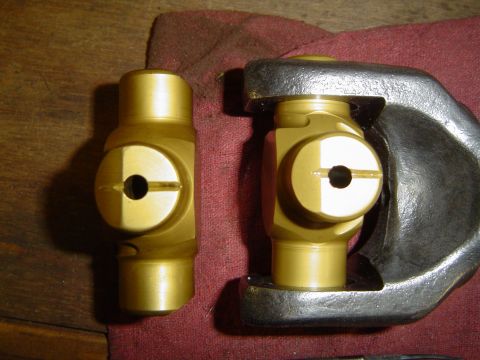

Chamfered side points at the shaft. dont forget the full circle clips

9-10-08 021.jpg
381 hits | 63.6 KB | Posted: 9/9/08

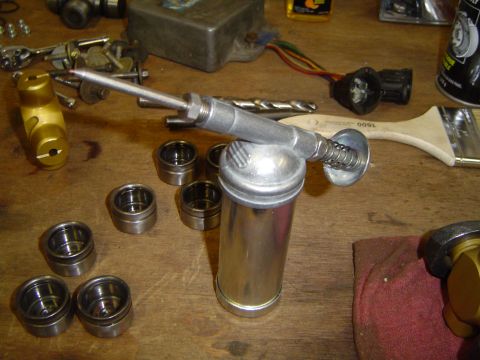

Put together the grease gun

9-10-08 022.jpg
411 hits | 61.54 KB | Posted: 9/9/08

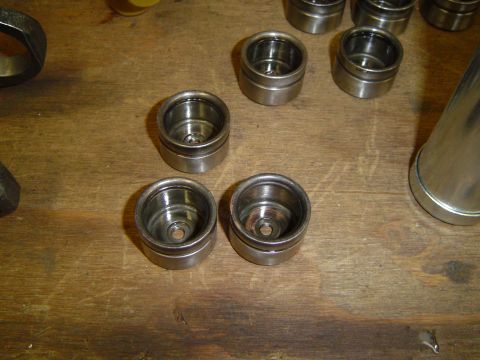

O-rings installed in the caps

9-10-08 023.jpg
441 hits | 70.47 KB | Posted: 9/9/08

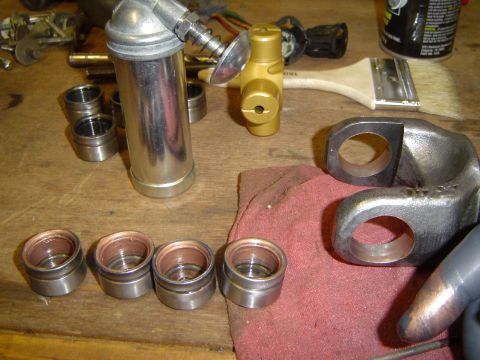

Used the grease on all the surfaces

9-10-08 024.jpg
447 hits | 60.55 KB | Posted: 9/9/08

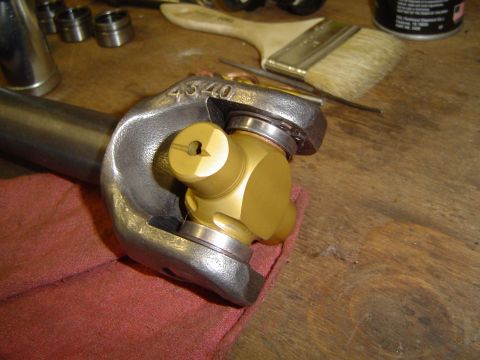

And pushed em in with my HF u-joint tool

9-10-08 025.jpg
462 hits | 51.42 KB | Posted: 9/9/08

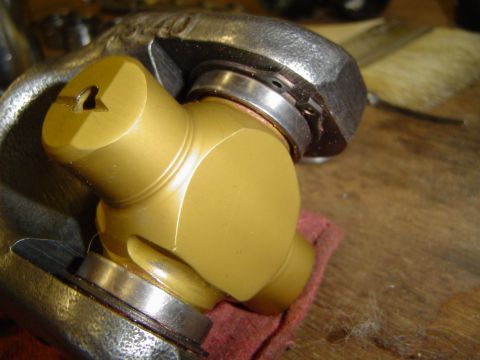

Closer look

9-10-08 026.jpg
454 hits | 57.97 KB | Posted: 9/9/08

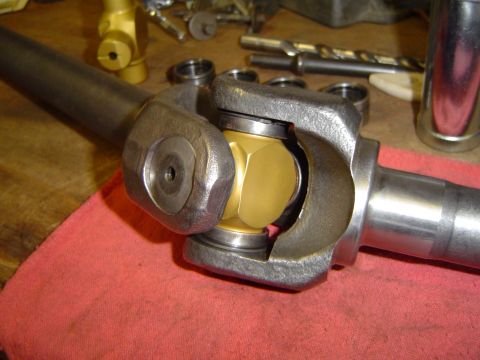

Stub shaft installed

9-10-08 027.jpg
409 hits | 61.61 KB | Posted: 9/9/08

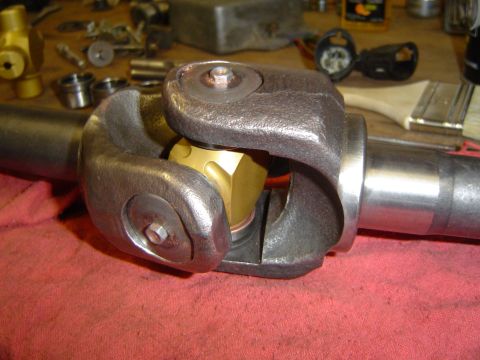

Grease fittings installed, then pumped in grease till i felt resistance

9-10-08 028.jpg
467 hits | 75.48 KB | Posted: 9/9/08

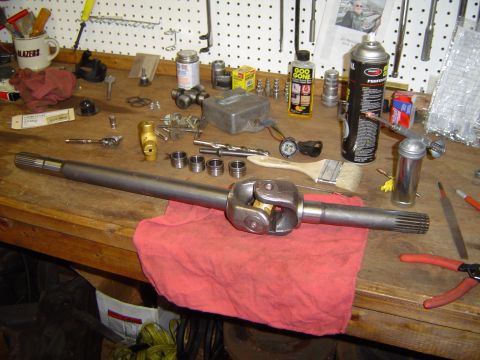

Ready to go in

9-10-08 029.jpg
501 hits | 72.75 KB | Posted: 9/9/08

9-10-08 033.jpg
483 hits | 64.47 KB | Posted: 9/10/08

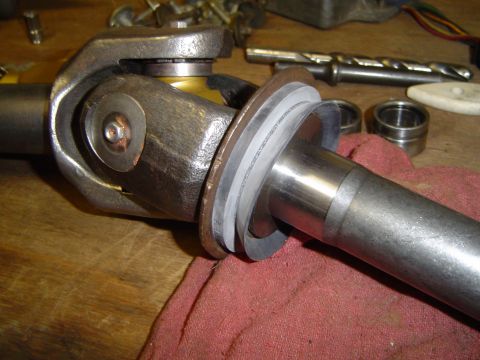

Dust shield installed

9-10-08 034.jpg
484 hits | 62.27 KB | Posted: 9/10/08

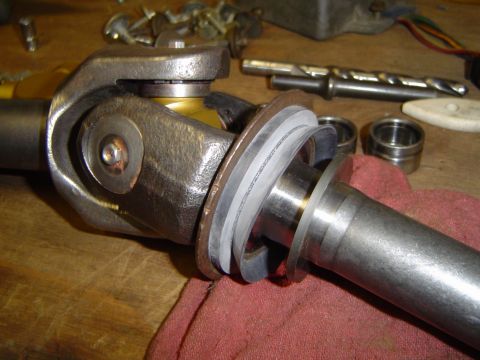

And lil plastic thingy

9-10-08 036.jpg
443 hits | 70.98 KB | Posted: 9/10/08

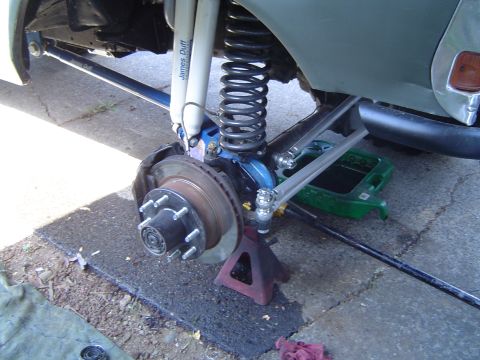

Taking apart the passenger side, so I can put the superjoint into the yukon shafts.

9-10-08 038.jpg
444 hits | 71.86 KB | Posted: 9/10/08

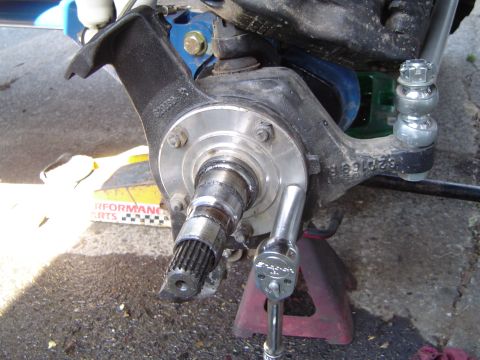

Spindles still looks shiny

9-10-08 039.jpg
419 hits | 69.79 KB | Posted: 9/10/08

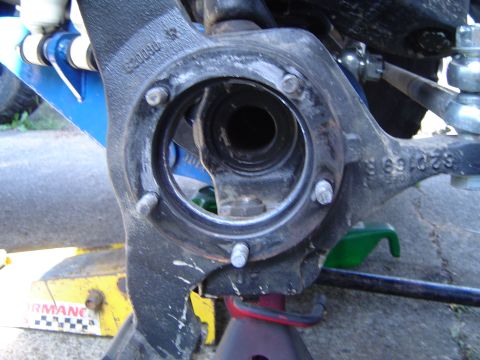

Lots of room to install shafts

9-10-08 040.jpg
443 hits | 60.44 KB | Posted: 9/10/08

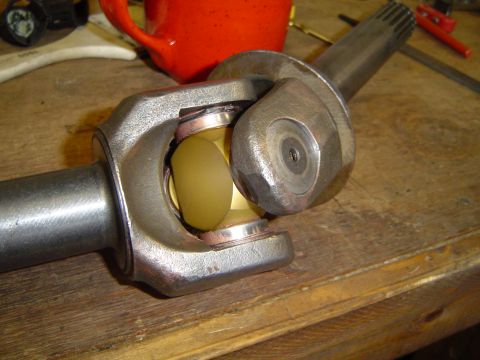

Long side assembled

9-10-08 042.jpg
454 hits | 81.22 KB | Posted: 9/10/08

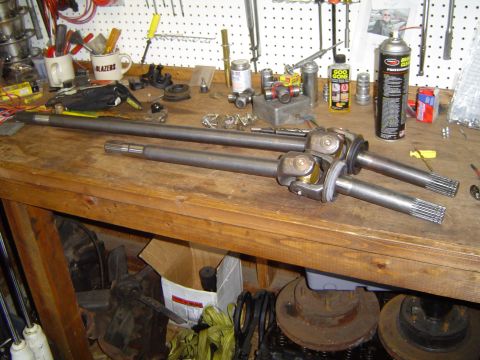

Ready to install

9-10-08 045.jpg
450 hits | 60.49 KB | Posted: 9/10/08

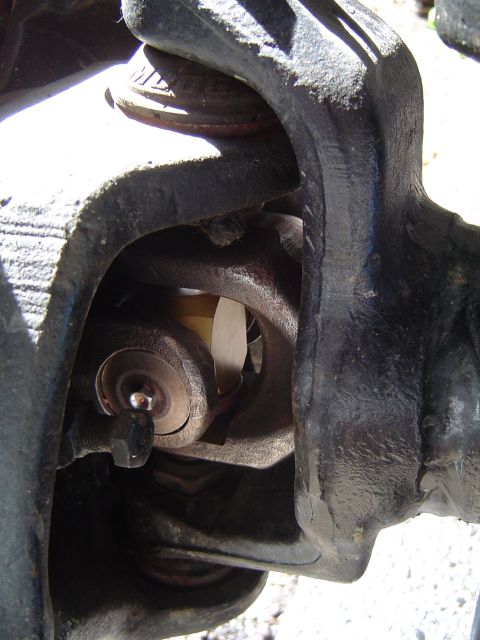

Beefy

9-10-08 046.jpg
432 hits | 56.52 KB | Posted: 9/10/08

9-10-08 050.jpg
419 hits | 79.28 KB | Posted: 9/10/08

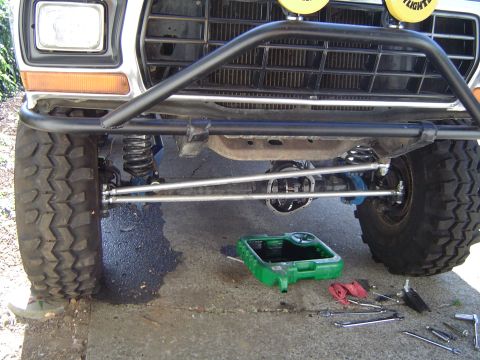

Track bar is out to be shortened by an inch, and the gear cover is getting machined so it will stop ...

9-10-08 052.jpg
424 hits | 59.23 KB | Posted: 9/11/08

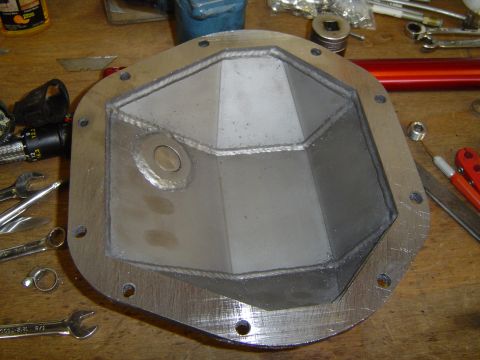

Seal surface of the Bluetorch cover cleaned up

9-10-08 053.jpg
438 hits | 85.74 KB | Posted: 9/11/08

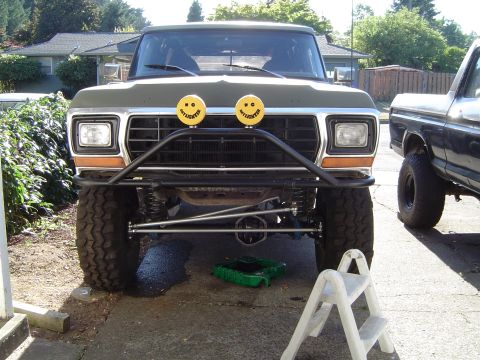

Track bar back in, and axle centered.

9-10-08 056.jpg
415 hits | 84.46 KB | Posted: 9/12/08

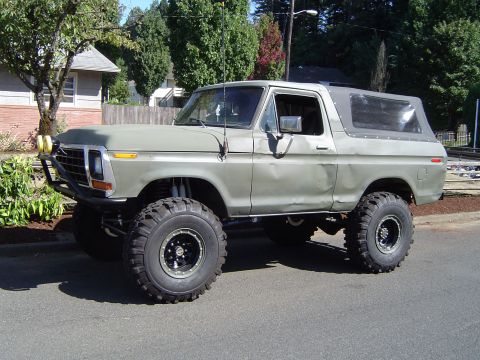

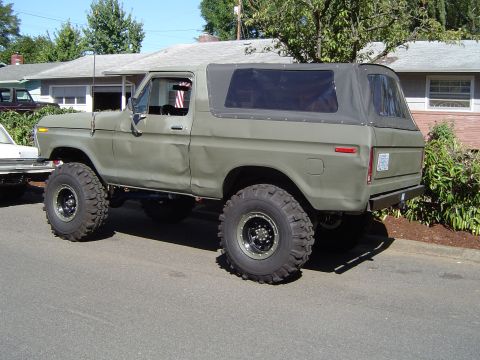

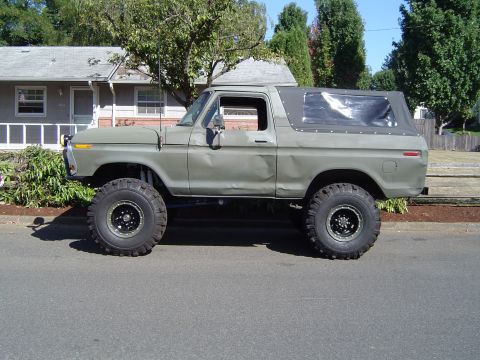

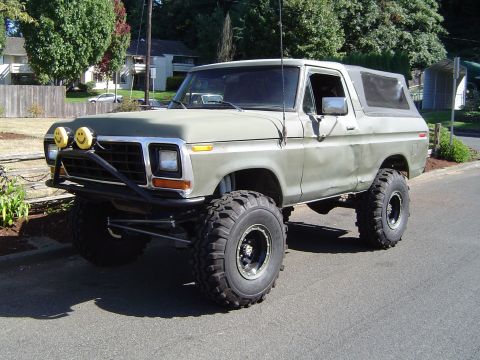

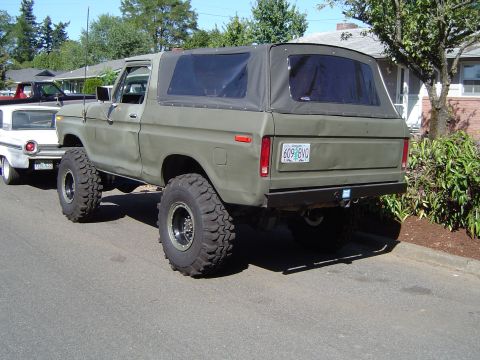

Drives much better. I did a walk around to get some pics with the cut coils

9-10-08 057.jpg
442 hits | 82.64 KB | Posted: 9/12/08

9-10-08 058.jpg
449 hits | 80.42 KB | Posted: 9/12/08

9-10-08 059.jpg
478 hits | 76.69 KB | Posted: 9/12/08

9-10-08 060.jpg
501 hits | 78.99 KB | Posted: 9/12/08
