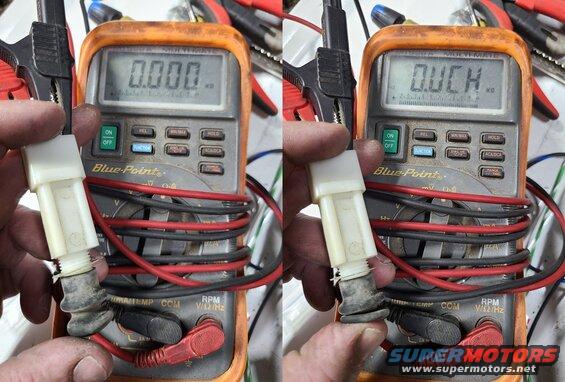

Interrupt Switch Testing
IF THE IMAGE IS TOO SMALL, click it.
When the plunger is released (latch closed), the circuit should be closed (0 resistance). When depressed, the circuit is open (infinite resistance, out-of-range, OUCH).
