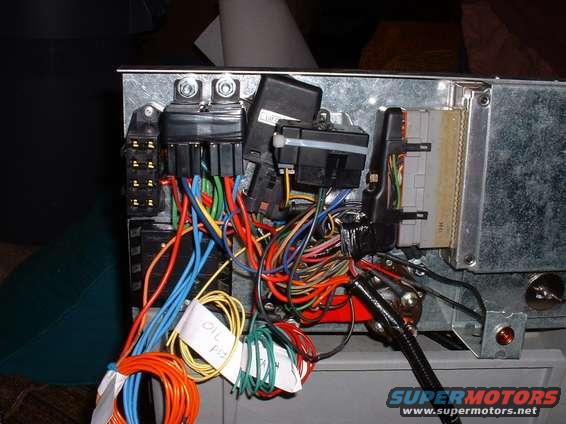

bw_harness_05.jpg (top row from left) EFI fuse block, EFI relay pack, Baro sensor, Self-test plugs, Computer (bottom row from left) Main vehicle fuse block, Main battery possitive terminal, Starter seloniod, Check engine light
bw_harness_05.jpg | Hits: 1024 | Posted on: 6/29/03 | View original size (431.34 KB)

(top row from left) EFI fuse block, EFI relay pack, Baro sensor, Self-test plugs, Computer
(bottom row from left) Main vehicle fuse block, Main battery possitive terminal, Starter seloniod, Check engine light
