img_2323.jpg New guage panel cut, and drilled test fitting on original panel. Holds 2 - 3-3/8 gauges 5 - 2-1/16 guages 7 - 1/2" switches (on-off) 1 - 1/2" Light 1 - 1/2" on-off-on momentary switch
img_2323.jpg | Hits: 1189 | Posted on: 3/25/05 | View original size (85.62 KB)

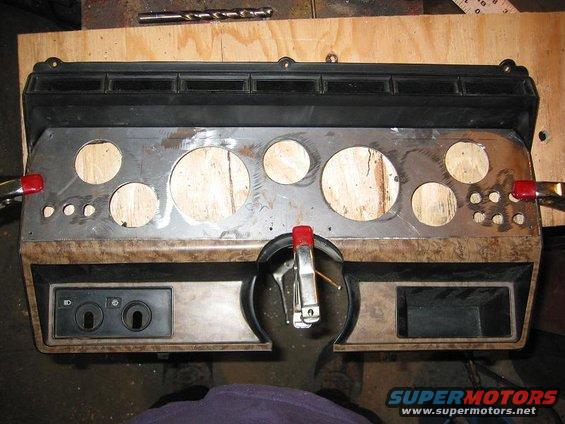

New guage panel cut, and drilled test fitting on original panel.
Holds
2 - 3-3/8 gauges
5 - 2-1/16 guages
7 - 1/2" switches (on-off)
1 - 1/2" Light
1 - 1/2" on-off-on momentary switch
