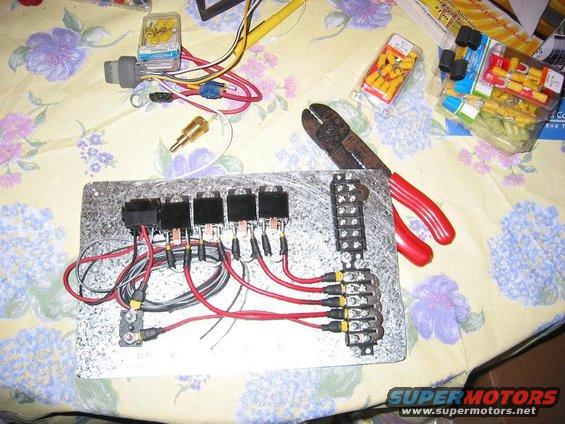

relay-panel.jpg Here's the relay panel. Will hold 2 sets of lights, 2 electric fans and 1 spare relay.
relay-panel.jpg | Hits: 938 | Posted on: 5/13/04 | View original size (107.62 KB)

Here's the relay panel. Will hold 2 sets of lights, 2 electric fans and 1 spare relay.
