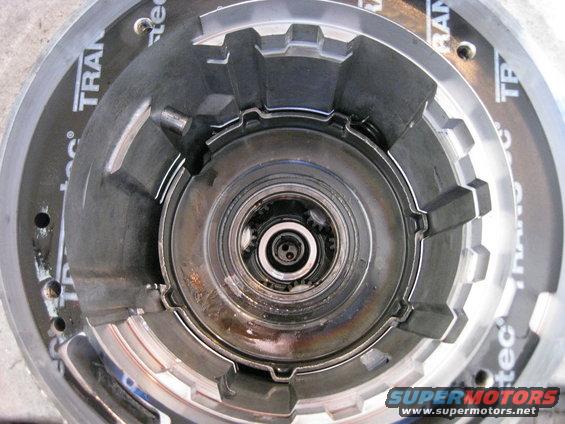

img_0550.jpg Planetary gearset with snap ring removed. Note the anit-clunk spring located in the upper right between the planetary gearset and the case.
img_0550.jpg | Hits: 154 | Posted on: 10/3/12 | View original size (2.18 MB)

Planetary gearset with snap ring removed. Note the anit-clunk spring located in the upper right between the planetary gearset and the case.
