cut the female slip off yoke #1
|
|
|
the yokes have a 1.75" OD, found a piece of 2" .120 wall to serve as a sleeve to join the two slips together.
|
|
|
cut the male slip off driveshaft number #1
|
|
|
grafting spline #1 onto shaft #2. angle iron jig.
|
|
|
yokes must be lined up before the male splines are welded up. the keyway must be in the right spot.
|
|
|
male splines welded up, ready for grinding.
|
|
|
drilling the sleeve tube for plug welds. 3x3/8" for each side.
|
|
|
use the male spline to line up the yokes before you weld them.
|
|
|
also welded the edge of the sleeve. heres a shot of the assembly
|
|
|

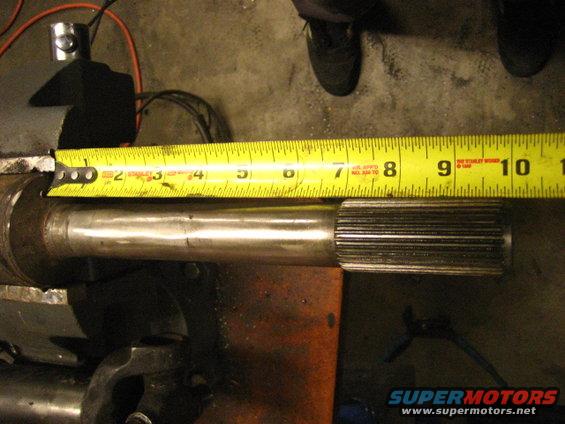

male splines ground smooth, 10" overall length.
|
|
|
10" in the female slip as well
|
|
|
this gives ~8.5" of travel with a minimum spline engagement of 1.5" at full droop
|
|
|
yokes ground for high clearance
|
Long Travel Driveshaft
