Img_0032.jpg | Hits: 1538 | Size: 62.22 KB | Posted on: 5/24/04 | Link to this image


Saginaw powersteering pump out of a '91 Ford van, much better than the stock pump the Broncos came with. I'll cover the installation of the new pump here. Paid $35 buck for the pump and bracket from the yard. Make sure to get all the bolts.

Url
Tag
Thumb

Dcp01229.jpg | Hits: 1314 | Size: 66.69 KB | Posted on: 5/27/04 | Link to this image


Powersteering pump rebuild kit ordered from Advance, cost $15 bucks.

Url
Tag
Thumb

Dcp01230.jpg | Hits: 1222 | Size: 79.52 KB | Posted on: 5/27/04 | Link to this image


Used a pulley puller to separate the pump from the bracket. You'll need to do this for the rebuild.

Url
Tag
Thumb

Dcp01232.jpg | Hits: 1204 | Size: 84.99 KB | Posted on: 5/27/04 | Link to this image


Now I put it in a vise to remove the high pressure fitting and the other retaining bolt for the resevoir. The high pressure fitting takes a 1 inch wrench. It took some effort to turn it.

Url
Tag
Thumb

Dcp01233.jpg | Hits: 1126 | Size: 86.33 KB | Posted on: 5/27/04 | Link to this image


Top bolt removed.

Url
Tag
Thumb

Dcp01234.jpg | Hits: 1174 | Size: 72.44 KB | Posted on: 5/27/04 | Link to this image


High pressure fitting removed this is the flow valve behind it, flow valve should always be replaced. There is a seal on the high pressure fitting that will be replaced.

Url
Tag
Thumb

Dcp01235.jpg | Hits: 1108 | Size: 84.96 KB | Posted on: 5/27/04 | Link to this image


With the bolts removed from the resevoir and the unit in the vise, take a soft rubber mallet and hit the resevoir. The can should come right off.

Url
Tag
Thumb

Dcp01231.jpg | Hits: 1016 | Size: 86.89 KB | Posted on: 5/27/04 | Link to this image


This is what it will look like once the can has been removed.

Url
Tag
Thumb

sag1.jpg | Hits: 1054 | Size: 61.17 KB | Posted on: 5/27/04 | Link to this image


In this pic you can see three of the seals that will be replaced.

Url
Tag
Thumb

sag1.jpg | Hits: 983 | Size: 65.28 KB | Posted on: 5/27/04 | Link to this image


In this pic you can see the retaining ring for the pump plate. This has to be removed. The is a small hole on the outside of the pump big enough to get a punch into. I gave the punch a couple of taps and the snap ring moved to where I could get it with a pick.

Url
Tag
Thumb

Dcp01242.jpg | Hits: 1053 | Size: 61.52 KB | Posted on: 5/27/04 | Link to this image


Here the retaining ring is about to come out. Be careful as there is a spring behind this that will cause the plate to shoot out if you're not careful.

Url
Tag
Thumb

Dcp01245.jpg | Hits: 1004 | Size: 80.27 KB | Posted on: 5/27/04 | Link to this image


With the retaining clip off the plate will not come out.

Url
Tag
Thumb

Dcp01246.jpg | Hits: 1031 | Size: 84.09 KB | Posted on: 5/27/04 | Link to this image


This is the spring behind the retaining plate.

Url
Tag
Thumb

Dcp01243.jpg | Hits: 1025 | Size: 63.74 KB | Posted on: 5/27/04 | Link to this image

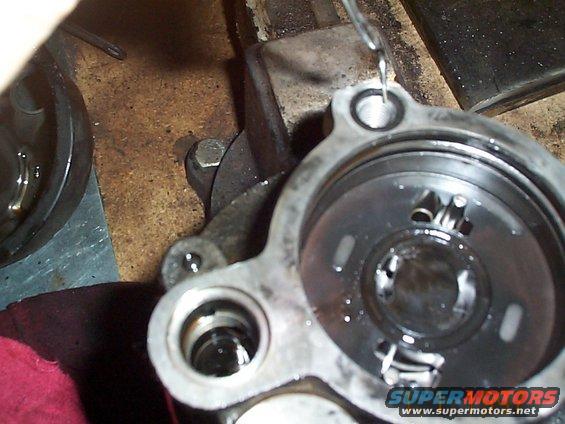

I now removed the two other seals with my pick.

Url
Tag
Thumb

Dcp01244.jpg | Hits: 943 | Size: 72.88 KB | Posted on: 5/27/04 | Link to this image



Url
Tag
Thumb

Dcp01248.jpg | Hits: 1085 | Size: 86.45 KB | Posted on: 5/27/04 | Link to this image


Flip the unit over and hit the shaft with a rubber mallet or hammer. Use something to protect the shaft from damage and small block of wood or something would work well. I was too lazy to do this.

Url
Tag
Thumb

Dcp01250.jpg | Hits: 994 | Size: 93.98 KB | Posted on: 5/27/04 | Link to this image


I wound up putting it back in the vise and using a small socket to get the shaft the rest of the way out.

Url
Tag
Thumb

Dcp01251.jpg | Hits: 1118 | Size: 78.9 KB | Posted on: 5/27/04 | Link to this image


The internals of the pump coming out.

Url
Tag
Thumb

Dcp01249.jpg | Hits: 946 | Size: 88.26 KB | Posted on: 5/27/04 | Link to this image


These parts will all come out before you complete remove the shaft from the pump. Make sure you don't lose any of the small flat pieces, they are the vanes.

Url
Tag
Thumb

Dcp01252.jpg | Hits: 981 | Size: 82.76 KB | Posted on: 5/27/04 | Link to this image


Here's the shaft assembly completely removed.

Url
Tag
Thumb

Dcp01253.jpg | Hits: 970 | Size: 62.75 KB | Posted on: 5/27/04 | Link to this image


The inside of the pump housing with everything removed.

Url
Tag
Thumb

Dcp01254.jpg | Hits: 963 | Size: 77.79 KB | Posted on: 5/27/04 | Link to this image


The shaft had some scoring on it, so I used some fine grit sand paper and smoothed it out.

Url
Tag
Thumb

Dcp01255.jpg | Hits: 951 | Size: 65.78 KB | Posted on: 5/27/04 | Link to this image


Remove the two large o-rings from inside of he pump. It was a little tricky getting the new ones to fit.

Url
Tag
Thumb

Dcp01256.jpg | Hits: 907 | Size: 86.38 KB | Posted on: 5/27/04 | Link to this image


Removing the shaft seal was a pain, I wound up using a small chisel and then pried it up.

Url
Tag
Thumb

Dcp01257.jpg | Hits: 892 | Size: 93.54 KB | Posted on: 5/27/04 | Link to this image


Jumping ahead, b/c the shaft seal was not wanting to come out I put the large o-ring on the case, this is the one that seals the resevoir to the housing.

Url
Tag
Thumb

Dcp01258.jpg | Hits: 892 | Size: 91.16 KB | Posted on: 5/27/04 | Link to this image


Finally got the old seal out, and installed the new one. I used a socket the same size as the seal and gently tapped it in.

Url
Tag
Thumb

Dcp01259.jpg | Hits: 902 | Size: 73.13 KB | Posted on: 5/27/04 | Link to this image


Installing the new inner o-rings.

Url
Tag
Thumb

Dcp01260.jpg | Hits: 912 | Size: 78.61 KB | Posted on: 5/27/04 | Link to this image


Reinstalling the shaft. I used a rubber mallet to tap it down, it went in pretty easily. It was at this point, I realized I had forgotten to replace the bushing the shaft goes through. If the bushing is in good condition you don't have to replace in..

Url
Tag
Thumb

Dcp01261.jpg | Hits: 849 | Size: 64.85 KB | Posted on: 5/27/04 | Link to this image


Put all of the vanes back in their respective slots and put the inner part of the pump back over it. There were two metal rods that came out upon disassembly that will be resinstalled here. It looks like they can fit in two different places, but only one set of the holes will work. They will press firmly into place.

Url
Tag
Thumb

Dcp01262.jpg | Hits: 947 | Size: 74.3 KB | Posted on: 5/27/04 | Link to this image


Install the next part, again it can only go in one way so be patient. Once you get it right it will drop right in.

Url
Tag
Thumb

Dcp01263.jpg | Hits: 809 | Size: 73.99 KB | Posted on: 5/27/04 | Link to this image


New seals for the fittings installed.

Url
Tag
Thumb

Dcp01264.jpg | Hits: 842 | Size: 76.43 KB | Posted on: 5/27/04 | Link to this image

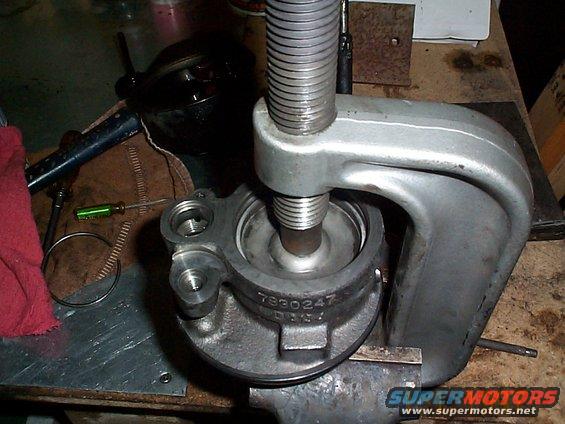

I used my u-joint press to push the plate down so I could get the retaining ring on, the pressure from the spring behind it makes it impossible to do by hand. A regular c-clamp would work just as well. Once the snap ring is in place, the rebuild is complete. Put your resevoir back on and your good to go.

Url
Tag
Thumb

Dcp01265.jpg | Hits: 904 | Size: 68.31 KB | Posted on: 5/28/04 | Link to this image


Cleaned up the resevoir. It was covered in grease as most salvage yard parts are.

Url
Tag
Thumb

Dcp01266.jpg | Hits: 962 | Size: 68.04 KB | Posted on: 5/28/04 | Link to this image


The resevoir for my pump on had the two holes, some have a 3rd hole. Make sure the high pressure fitting hole and the other bolt hole are both lined up.

Url
Tag
Thumb

Dcp01267.jpg | Hits: 1009 | Size: 74.41 KB | Posted on: 5/28/04 | Link to this image


After lubing the o-ring on the pump with some powersteering fluid. Lightly tap the resevoir on with a rubber mallet. (Note, the resevoir will not seat the whole way.) When the bolts are reinstalled it will tighten it up against the pump.

Url
Tag
Thumb

Dcp01268.jpg | Hits: 914 | Size: 67.07 KB | Posted on: 5/28/04 | Link to this image


Reinsert the spring.

Url
Tag
Thumb

Dcp01269.jpg | Hits: 905 | Size: 62.19 KB | Posted on: 5/28/04 | Link to this image


Reinsert the flow valve. It has been said you shouldn't reuse the flow valve. I cleaned mine of with carb cleaner and it was good to go.

Url
Tag
Thumb

Dcp01270.jpg | Hits: 957 | Size: 76.46 KB | Posted on: 5/28/04 | Link to this image


Put the high pressure fitting bolt in. Again this uses a 1 inch wrench.

Url
Tag
Thumb

Dcp01271.jpg | Hits: 876 | Size: 66.05 KB | Posted on: 5/28/04 | Link to this image


Put the top retaining bolt in and tighten it down this bolt is very short so be careful when tightening. I used an 18 mm closed end wrench for this.

Url
Tag
Thumb

Dcp01274.jpg | Hits: 922 | Size: 87.35 KB | Posted on: 5/28/04 | Link to this image


And the pump is rebuilt.

Url
Tag
Thumb

Dcp01275.jpg | Hits: 798 | Size: 82.2 KB | Posted on: 5/28/04 | Link to this image



Url
Tag
Thumb

Dcp01276.jpg | Hits: 986 | Size: 84.03 KB | Posted on: 5/28/04 | Link to this image


Here the pump is reinstalled in the bracket, almost ready to put in the Bronco. Just need to put the pulley back on.

Url
Tag
Thumb

Dcp01277.jpg | Hits: 975 | Size: 74.95 KB | Posted on: 5/28/04 | Link to this image


The pulley has been put back on and the pump is ready to be installed.

Url
Tag
Thumb

Dcp01278.jpg | Hits: 1015 | Size: 72.22 KB | Posted on: 6/1/04 | Link to this image


To install the pump, remove the tubes from the airbox to the throttle body, this will allow access to the top A/C compressor.

Url
Tag
Thumb

Dcp01279.jpg | Hits: 936 | Size: 73.67 KB | Posted on: 6/1/04 | Link to this image


The A/C is now accessable.

Url
Tag
Thumb

Dcp01281.jpg | Hits: 903 | Size: 64.54 KB | Posted on: 6/1/04 | Link to this image


Remove the serpentine belt.

Url
Tag
Thumb

Dcp01283.jpg | Hits: 920 | Size: 76.5 KB | Posted on: 6/1/04 | Link to this image


Unplug the A/C harness, and move it out of the way, you don't want to risk ripping it off.

Url
Tag
Thumb

Dcp01284.jpg | Hits: 883 | Size: 71.66 KB | Posted on: 6/1/04 | Link to this image


Start to remove the A/C bolts.

Url
Tag
Thumb

Dcp01285.jpg | Hits: 959 | Size: 76.75 KB | Posted on: 6/1/04 | Link to this image


Once all of the bolts are removed use a bungee cord to hold the compressor out of the way. The bracket is now easily accessable.

Url
Tag
Thumb

Dcp01288.jpg | Hits: 911 | Size: 74.12 KB | Posted on: 6/1/04 | Link to this image


Next I'll remove the high pressure line from the pump and then the gear box. My old C2 pump was really beat up. The plastic pulley was even chipped as was the top part of the resevoir.

Url
Tag
Thumb

Dcp01290.jpg | Hits: 856 | Size: 68.36 KB | Posted on: 6/1/04 | Link to this image



Url
Tag
Thumb

Dcp01291.jpg | Hits: 973 | Size: 79.64 KB | Posted on: 6/1/04 | Link to this image


It's a tight fit, but you'll be able to get a wrench in there to take the pressure fitting off.

Url
Tag
Thumb

Dcp01292.jpg | Hits: 947 | Size: 76.96 KB | Posted on: 6/1/04 | Link to this image



Url
Tag
Thumb

Dcp01293.jpg | Hits: 973 | Size: 87.26 KB | Posted on: 6/1/04 | Link to this image


The pressure fitting removed from the pump. At this point, don't forget to remove the return line otherwise you'll have a difficult time taking the pump out.

Url
Tag
Thumb

Dcp01294.jpg | Hits: 943 | Size: 72.06 KB | Posted on: 6/1/04 | Link to this image


Now you can remove the bolts from the pump bracket, there are 3 bolts and one nut.

Url
Tag
Thumb

Dcp01295.jpg | Hits: 960 | Size: 107.05 KB | Posted on: 6/1/04 | Link to this image


The bracket w/pump will lift right out.

Url
Tag
Thumb

Dcp01297.jpg | Hits: 981 | Size: 79.68 KB | Posted on: 6/1/04 | Link to this image


So here they are side by side, the most noticeable difference is the C2 resevoir is much smaller than the Saginaw, and it's also made of plastic. The C2 uses a plastic pulley and the Saginaw's is steel. What were they thinking. In addition, the bolts used to secure the A/C compressor to the bracket are larger in diameter so it requires some drilling.

Url
Tag
Thumb

Dcp01302.jpg | Hits: 1020 | Size: 88.54 KB | Posted on: 6/1/04 | Link to this image


Here you can see the difference in the diameter of the compressor bolts. The one on the right works with the Saginaw bracket.

Url
Tag
Thumb

Dcp01300.jpg | Hits: 1008 | Size: 77.65 KB | Posted on: 6/1/04 | Link to this image


I located a bit that would allow me to ream the holes out to the appropriate size. Basically I just matched the diameter of the bolts with the drill bit and went to work. This was a little tricky.

Url
Tag
Thumb

Dcp01301.jpg | Hits: 999 | Size: 79.66 KB | Posted on: 6/1/04 | Link to this image


These aluminum shavings will go everywhere so be careful you don't get them into your airbox or throttle body.

Url
Tag
Thumb

Dcp01303.jpg | Hits: 1026 | Size: 90.53 KB | Posted on: 6/1/04 | Link to this image


Mount the high pressure hose. I reused my old hose, but had to use a tube bender to get the correct bend in it. This is not very difficult, you can pick a bender up for about $10 bucks at your local auto parts store.

Url
Tag
Thumb

Dcp01304.jpg | Hits: 1015 | Size: 86.75 KB | Posted on: 6/1/04 | Link to this image


Here you can see the bend I put in the tube, the allows you to get around the return line.

Url
Tag
Thumb

Dcp01305.jpg | Hits: 967 | Size: 97.07 KB | Posted on: 6/1/04 | Link to this image


Now the bracket goes back in.

Url
Tag
Thumb

Dcp01306.jpg | Hits: 974 | Size: 77.53 KB | Posted on: 6/1/04 | Link to this image


Reinstall the bolts on the front of the bracket.

Url
Tag
Thumb

Dcp01308.jpg | Hits: 924 | Size: 80.77 KB | Posted on: 6/1/04 | Link to this image


The pumps in the return line is attached.

Url
Tag
Thumb

Dcp01311.jpg | Hits: 982 | Size: 74.32 KB | Posted on: 6/1/04 | Link to this image


Here is a better angle of the bend I put in the high pressure hose to make it fit at the gear box. Make sure the fitting threads properly into the gear box.

Url
Tag
Thumb

Dcp01312.jpg | Hits: 968 | Size: 81.68 KB | Posted on: 6/1/04 | Link to this image


Put the A/C compressor back on.

Url
Tag
Thumb

Dcp01313.jpg | Hits: 1088 | Size: 80.19 KB | Posted on: 6/1/04 | Link to this image


Reinstall the serpentine belt. I put the stock one on but it felt to tight so I stepped up one size. Don't forget to add powersteering fluid.

Url
Tag
Thumb

Dcp01314.jpg | Hits: 911 | Size: 77.33 KB | Posted on: 6/1/04 | Link to this image


This is the model serp belt I used, works perfectly. with a 302 and the sag swap.

Embed
Tag
Thumb

mvi_0067.avi | Hits: 1243 | Posted on: 6/1/04 | Link to this video | Download original movie file (Size: 6.72 MB)

Here it the pump working. Dollar for dollar, this was one of the best mods I have done. The pump doesn't whine and it turns the tires effortlessly even in park.

Url
Tag
Thumb

IMG_5658.JPG | Hits: 558 | Size: 62.34 KB | Posted on: 1/4/12 | Link to this image



Url
Tag
Thumb

20140423_193735.jpg | Hits: 367 | Size: 70.47 KB | Posted on: 4/24/14 | Link to this image


This is the hose from an early '90s Ford van, NAPA part 7-1483, the routing is a little unusual, but it works and all of the connections bolt up without binding.

Url
Tag
Thumb

20140423_193741.jpg | Hits: 283 | Size: 70.2 KB | Posted on: 4/24/14 | Link to this image



Url
Tag
Thumb

20140423_193755.jpg | Hits: 312 | Size: 68.07 KB | Posted on: 4/24/14 | Link to this image



Url
Tag
Thumb

20140606_095348.jpg | Hits: 340 | Size: 65.16 KB | Posted on: 6/6/14 | Link to this image


This is the correct belt for a sag swap on a 351W with the smog pump deleted.


About SuperMotors | Contact Us | FAQ/Help | Legal
Copyright © 1998-2022 Web Design Solutions, Inc.
All rights reserved. Duplication & reproduction is strictly prohibited.
SuperMotors.net v5.0.2 ChangeLog
