This is the design I think I'm going with.
|
|
|
Final slider that was built, pics will follow of cleanup, mounting and painting.
|
|
|

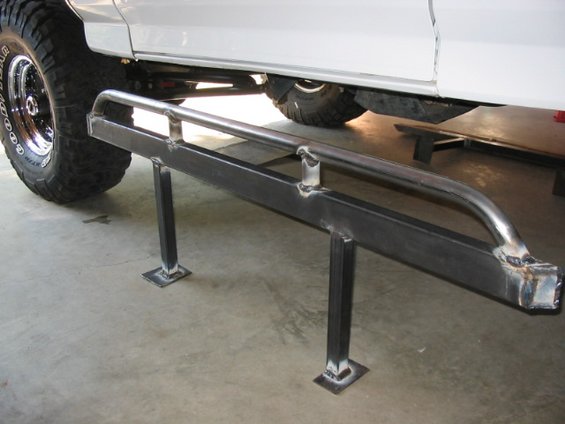

Unfinished slider. going to start by jacking it up into position under vehicle to test fit.
|
|
|
I had drilled holes in the body for the old sliders that just fit up into the channel that runs along the body. So I bolted these axle bumpstops up under there (2 on each side), to act as added contact points for the new sliders. Contact points that won't make noise.
|
|
|

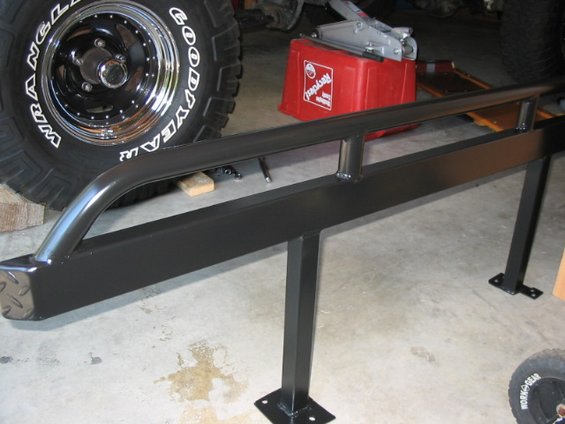

Painted up. They did weigh in at 32 lbs ea.
|
|
|
one side mounted. These took more time to install as I had to unbolt the radius arms to fit them to the frame.
|
|
|
I did end up using a backing plate on the inside of the frame made of 3/16" steel on the rear legs of both sides.
|
|
|
next couple shots just some close ups of the finished and ready to install product.
|
