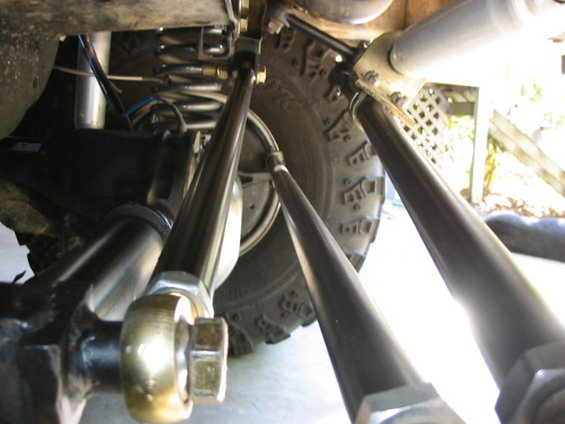

pic shot from directly under the trackbar
|
|
|

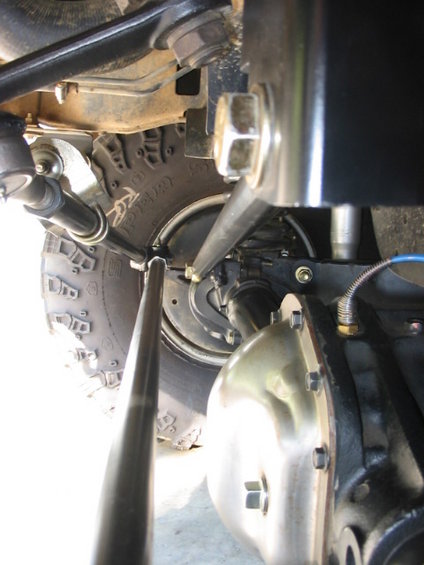

again under the trackbar, but camera angled some
|
|
|

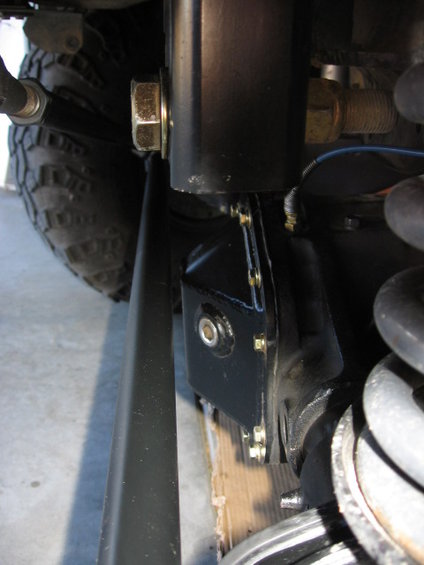

looking down from the frame mount along the track bar
|
|
|
stock axle trackbar mount with a welded on spacer made from 1 square block of 1/2" plate drilled for 3/4" hole, and a 3/4" length, piece of 1" OD, .120 tube welded onto it.
|
|
|
 trackbar double sheet at axle.JPG | Hits: 1490 | Size: 57.34 KB | Posted on: 2/4/08 | Link to this image
totally enemic pic of wanting to place lower axle trackbar mount into double sheer via welded on bracket.
|
|
|

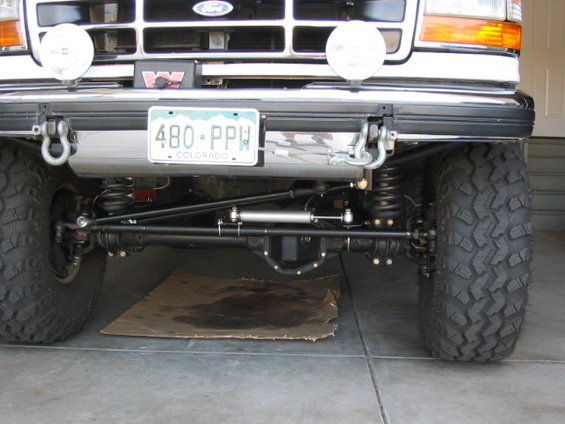

2 updated pics of left righ lock/left lock and the ruffstuff diff cover and 1.37" OD tierod DOM. pic above is passenger turned and leaves about 7/8ths clearance at diff cover, driver turn (this pic) yields about .4"
|
|
|
 trackbar mount to frame 003.jpg | Hits: 575 | Size: 70.21 KB | Posted on: 12/7/12 | Link to this image
looking up at the bolts for the upper trackbar to frame mount.
|
|
|
 trackbar mount to frame 004.jpg | Hits: 559 | Size: 64.09 KB | Posted on: 12/7/12 | Link to this image
looking up at the bolts for the upper trackbar to frame mount.
|
