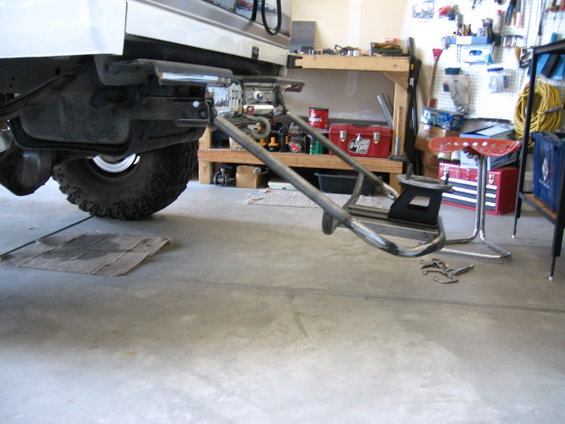

won't do the side tubes out, but the hoop is the basic idea, frame mounted, fold down. Very nice for heavy tires.
|
|
|
ballistic poly joint that will be used to attach to the tailgate. It's pretty big/overkill, but less to worry about.
|
|
|
considering spring return ideas......
|
|
|
spring with nylon sleeve came in, so I need to install that to help counterbalance.
|
|
|
The wheel actually weighs 99lbs, and the carrier I thought would add another 20, but I guess I didn't take into account the frame mounts still holding maybe 35lbs or so of weight.
|
|
|
used the pass. fender carrier mounts to still mount a swingout CB. This will eventually be tied into the lower mount to allow for a swingout for (1) 5 gal. gas can, or a quick swapout to air supply cylinder for tires.
|
|
|
 drywall in bronco 001.jpg | Hits: 1150 | Size: 47.13 KB | Posted on: 8/6/13 | Link to this image
|
|
|
 drywall in bronco 002.jpg | Hits: 1094 | Size: 53.33 KB | Posted on: 8/6/13 | Link to this image
|
|
|
 drywall in bronco 003.jpg | Hits: 1316 | Size: 53.79 KB | Posted on: 8/6/13 | Link to this image
The fold down carrier is nice with long loads like 8' drywall.
|
Frame mount drop down Tire Carrier
